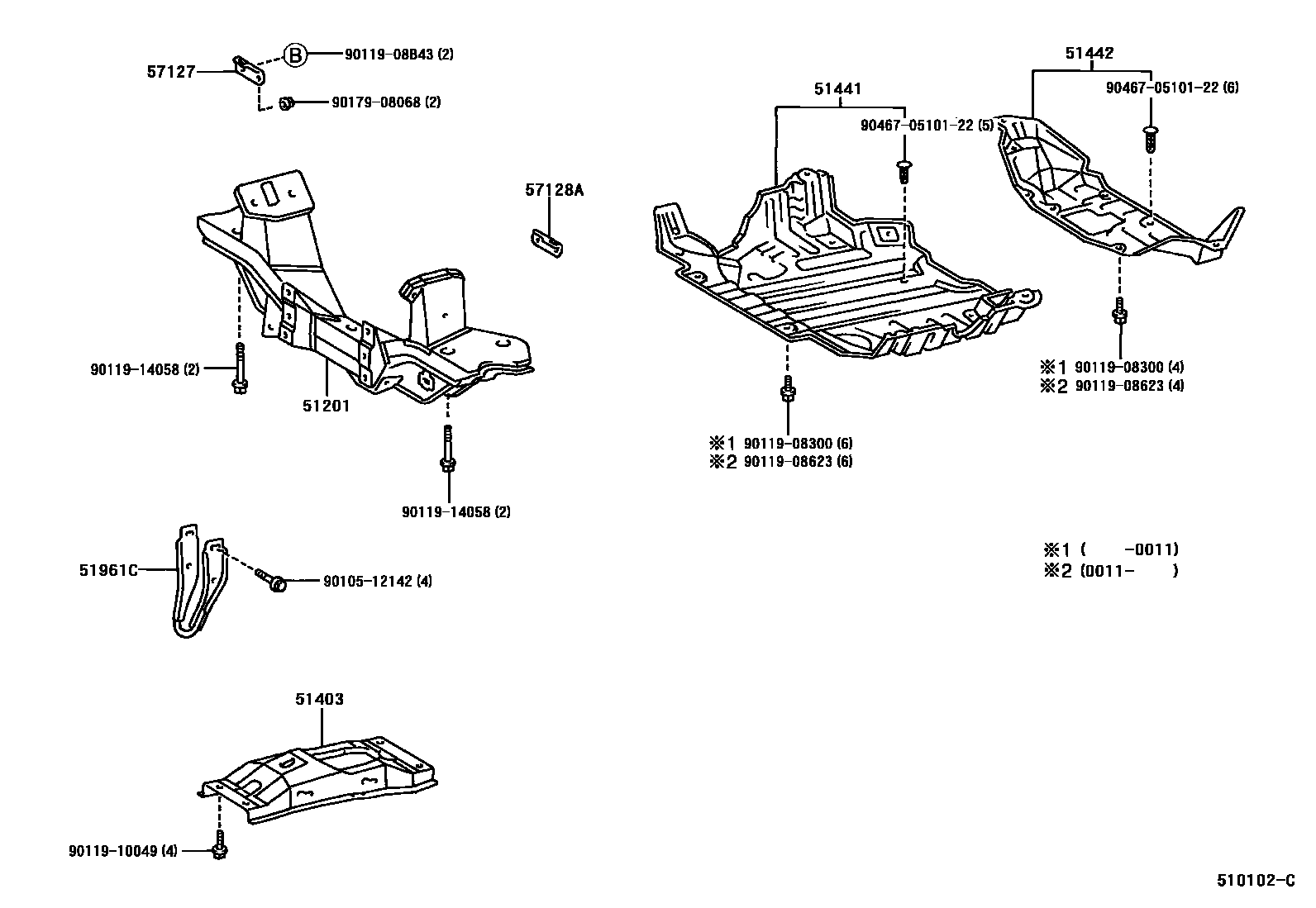

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26160iKCH40,LXH43199704

main51201-26170iRCH41,42199704

main51210-26040iKCH46,LXH49199704

main51210-26050iRCH47199704

51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-26060iLXH43,RCH41,42199705

main51403-26070iKCH40199705

main51403-26080iKCH46;LXH49..MTM199705

main51403-26100iRCH41199704-199705

sub51403-26060

main51403-26110iKCH40199704-199705

sub51403-26070

main51403-26120iKCH46199704-199705

sub51403-26080

main51403-26130iLXH49..ATM199704-199907

main51403-26190iRCH47199907

51441COVER, ENGINE UNDER, NO.1

main51405-26080iKCH40,LXH43,RCH41,42199704

main51405-26090iKCH46,LXH49,RCH47199704

51442COVER, ENGINE UNDER, NO.2

main51406-26070iLXH43..ATM;KCH40..(G,V,WISTD)..(W07S,W08S)199706

main51406-26080iLXH49199706-199804

sub51406-26081

main51406-26081iLXH49;KCH46..(G,V,WISTD)..(W07S,W08S)199804

51961CHOOK, FRONT

main51961-26130iKCH4#,LXH4#,RCH4#199704

57127PLATE, FRONT SUSPENSION MEMBER MOUNTING, RH

main57127-26030iKCH40,LXH43,RCH41,42199704

main57127-26050iKCH46,LXH49,RCH47199704

57128APLATE, FRONT SUSPENSION MEMBER MOUNTING, LH

main57128-26020iKCH40,LXH43,RCH41,42199704

main57128-26040iKCH46,LXH49,RCH47199704

9010512142

main90105-12142

9011908300

main90119-08300

9011908623

main90119-08623

9011908B43

main90119-08B43

9011910049

main90119-10049

9011914058

main90119-14058

9017908068

main90179-08068

904670510122

main90467-0510122

15 parts on this diagram · 2 diagrams in section
