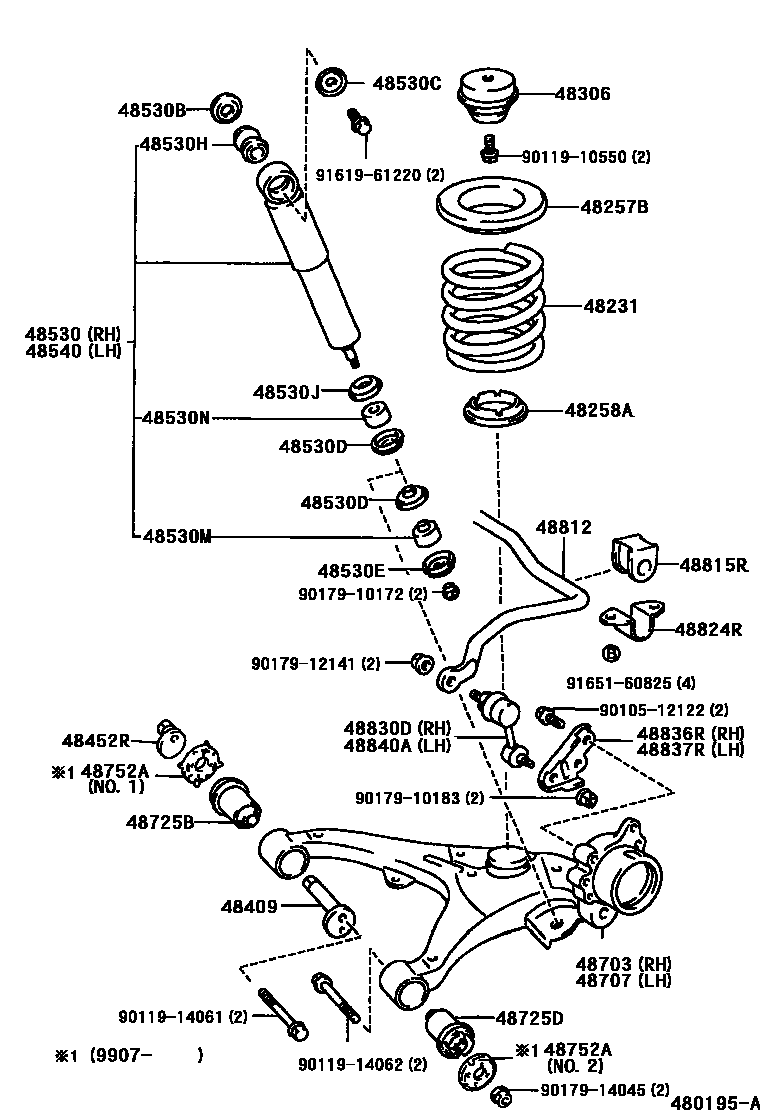

REAR SPRING & SHOCK ABSORBER

48231SPRING, COIL, REAR

main48231-26260×2iKCH40;RCH41..5D199704-199907

main48231-26280×2iKCH46..W08S199704-199907

main48231-26330×2iLXH43,RCH42199706

main48231-26340×2iLXH49199706

main48231-26350×2iRCH41..4D199704-199907

main48231-26360×2iRCH47;KCH46..G07S199704-199907

main48231-26370×2iKCH46..G08S199704-199907

main48231-26450×2iRCH41199907

main48231-26460×2iRCH41..WISTD199907

main48231-26470×2iKCH40199907

main48231-26480×2iKCH40..WISTD199907

main48231-26490×2iRCH47199907

main48231-26500×2iKCH46199907

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-26050×2iKCH4#,RCH41,47199704-199907

main48257-26060×2iLXH4#,RCH42199706-199907

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-26050×2iKCH4#,LXH4#,RCH4#199704

48306BUMPER SUB-ASSY, REAR SPRING

main48306-26100×2iLXH4#,RCH42199706

main48306-26120×2iKCH4#,RCH41,47199704

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-26050×2iKCH4#,LXH4#,RCH4#199704

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-26010×2iKCH4#,LXH4#,RCH4#199704

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80583iLXH43,RCH42199706

main48531-80585iLXH49199706

main48531-80635iKCH40,RCH41199704-199907

main48531-80636iKCH46,RCH47199704-199907

main48531-80680iKCH40,RCH41199907

main48531-80681iKCH46,RCH47199907

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011×2iKCH4#,LXH4#,RCH4#199704

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03015×2iKCH4#,LXH4#,RCH4#199704

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-02077×4iKCH4#,LXH4#,RCH4#199704

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-02169×2iKCH4#,LXH4#,RCH4#199704

48530HBUSH, REAR SHOCK ABSORBER

main90385-19006×2iKCH4#,RCH41,47199704

main90385-19009×4iLXH4#,RCH42199706

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02165×2iKCH4#,LXH4#,RCH4#199704

48530MCUSHION, REAR SHOCK ABSORBER, NO.4

main90948-01059×2iKCH4#,LXH4#,RCH4#199704

48530NCUSHION, REAR SHOCK ABSORBER, NO.5

main90948-01060×2iKCH4#,LXH4#,RCH4#199704

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80583iLXH43,RCH42199706

main48531-80585iLXH49199706

main48531-80635iKCH40,RCH41199704-199907

main48531-80636iKCH46,RCH47199704-199907

main48531-80680iKCH40,RCH41199907

main48531-80681iKCH46,RCH47199907

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-26040iKCH4#,RCH41,47199704

main48703-26050iLXH4#,RCH42199706

main48703-26060iLXH4#,RCH42199706

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-26020iKCH4#,RCH41,47199704

main48707-26030iLXH4#,RCH42199706

main48707-26040iLXH4#,RCH42199706

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-26010×2iLXH4#,RCH42199706-199907

main48725-26030×2iKCH4#,RCH41,47199704-199907

main48725-26050×2iLXH4#,RCH42199907

main48725-26090×2iKCH4#,RCH41,47199907

48725DBUSH, REAR SUSPENSION ARM, NO.3

main48725-26020×2iKCH4#,RCH41,47199704-199907

main48725-26040×2iLXH4#,RCH42199706-199907

main48725-26080×2iLXH4#,RCH42199907

main48725-26100×2iKCH4#,RCH41,47199907

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-26010×2iKCH4#,LXH4#,RCH4#199907

main48752-26020×2iKCH4#,LXH4#,RCH4#199907

48812BAR, STABILIZER, REAR

main48812-26200iKCH40,RCH41199704-199812

main48812-26201iKCH40,RCH41199812-199907

main48812-26210iKCH46,RCH47199704-199812

main48812-26211iKCH46,RCH47199812-199907

main48812-26270iKCH40,RCH41199907

main48812-26280iKCH46,RCH47199907

48815RBUSH, STABILIZER(FOR REAR)

main48815-26240×2iKCH40,RCH41199704

main48815-26250×2iKCH46,RCH47199704

48824RBRACKET, STABILIZER(FOR REAR)

main48824-26210×2iKCH4#,RCH41,47199704

48830DLINK ASSY, REAR STABILIZER, RH

main48830-26030iKCH4#,RCH41,47199704

48836RBRACKET, REAR STABILIZER END, RH

main48836-26050iKCH4#,RCH41,47199704-199907

main48836-26051iKCH4#,RCH41,47199907

48837RBRACKET, REAR STABILIZER END, LH

main48837-26040iKCH4#,RCH41,47199704-199907

main48837-26041iKCH4#,RCH41,47199907

48840ALINK ASSY, REAR STABILIZER, LH

main48830-26030iKCH4#,RCH41,47199704

9010512122

main90105-12122

9011910550

main90119-10550

9011914061

main90119-14061

9011914062

main90119-14062

9017910172

main90179-10172

9017910183

main90179-10183

9017912141

main90179-12141

9017914045

main90179-14045

9161961220

main91619-61220

9165160825

main91651-60825

38 parts on this diagram · 1 diagram in section
