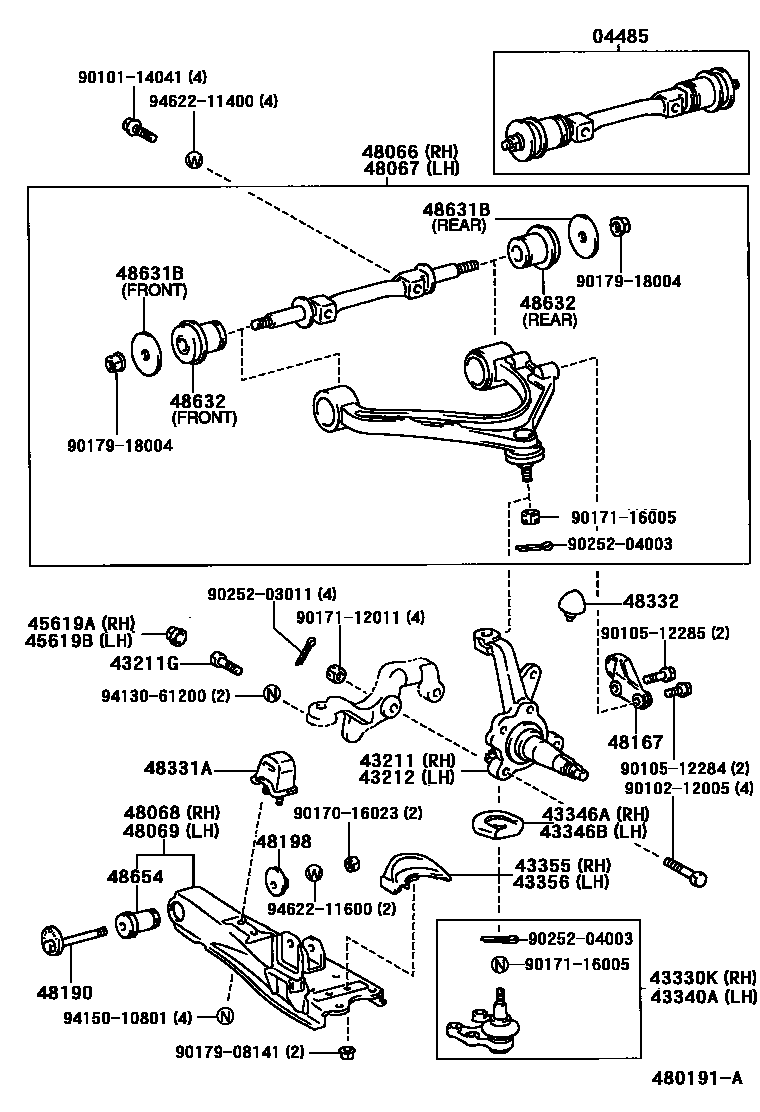

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-26050iLXH43,RCH42199706

sub04485-26120

main04485-26080iKCH40,RCH41199704

sub04485-26110

43211KNUCKLE, STEERING, RH

main43201-26020iKCH46,LXH49..E,STD199704-200107

sub43201-26021

sub90304-76005

main43201-26021iLXH49..STD200107

main43201-26030iLXH49..G199706-200107

sub43201-26031

sub90304-76005

main43201-26031iLXH49..STD200107

main43211-26110iKCH40,LXH43,RCH41,42199704-199706

main43211-26120iLXH43,RCH42199706

43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)

main90106-12012iKCH46;KCH40,RCH4#..G,STD,WINT199704-199706

43212KNUCKLE, STEERING, LH

main43202-26020iKCH46,LXH49..E,STD199704-200107

sub43202-26021

sub90304-76005

main43202-26021iLXH49..STD200107

main43202-26030iLXH49..G199706-200107

sub43202-26031

sub90304-76005

main43202-26031iLXH49..STD200107

main43212-26080iKCH40,LXH43,RCH41,42199704-199706

main43212-26090iLXH43,RCH42199706

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29295iKCH40,LXH43,RCH41,42199704

sub43330-29515

main43330-29345iKCH46,LXH49,RCH47199704

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29295iKCH40,LXH43,RCH41,42199704

sub43330-29515

main43330-29345iKCH46,LXH49,RCH47199704

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-26010iKCH40,LXH43,RCH41,42199706

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-26010iKCH40,LXH43,RCH41,42199706

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-26010iKCH40,LXH43,RCH41,42199704

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-26010iKCH40,LXH43,RCH41,42199704

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-26020iKCH46;KCH40,RCH4#..G,STD,WINT199704-199706

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-26020iKCH4#,LXH4#,RCH4#199704-199706

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29075iLXH43,RCH42199706

main48066-29085iKCH40,RCH41199704

main48066-29105iKCH46,LXH49,RCH47199704

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29075iLXH43,RCH42199706

main48067-29085iKCH40,RCH41199704

main48067-29105iKCH46,LXH49,RCH47199704

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26110iKCH46,LXH49,RCH47199704

main48068-26150iKCH40,LXH43,RCH41,42199704

sub48068-26151

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26110iKCH46,LXH49,RCH47199704

main48069-26150iKCH40,LXH43,RCH41,42199704

sub48069-26151

48167ARM, TORQUE

main48106-25020iKCH46,LXH49,RCH47200103

main48106-26020iKCH46,LXH49,RCH47199704-200103

sub48106-25020

main48106-26040iKCH40,LXH43,RCH41,42199704

48190CAM ASSY, CAMBER ADJUST

main48190-26020iKCH40,LXH43,RCH41,42199704

48198CAM, CAMBER ADJUST, NO.2

main48198-26010iKCH40,LXH43,RCH41,42199704

48331ABUMPER, FRONT SPRING, NO.1

main48331-26091iKCH40,LXH43,RCH41,42199704

main48331-26121iKCH46,LXH49,RCH47199704-199910

sub48331-26122

main48331-26122iKCH46,LXH49,RCH47199910

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iKCH4#,LXH4#,RCH4#199704

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02142iKCH40,LXH43,RCH41,42199704

main90948-02143iKCH40,LXH43,RCH41,42199704

48632BUSH, UPPER ARM

main48632-26010iKCH40,LXH43,RCH41,42199704

main48635-26010iLXH43,RCH42199706

main48635-26040iKCH40,RCH41199704

48654BUSH, LOWER ARM

main48061-26040iKCH46,LXH49,RCH47199704-199907

main48061-26050iKCH40,LXH43,RCH41,42199704

9010114041

main90101-14041

9010212005

main90102-12005

9010512284

main90105-12284

9010512285

main90105-12285

9017016023

main90170-16023

9017112011

main90171-12011

9017116005

main90171-16005

9017908141

main90179-08141

9017918004

main90179-18004

9025203011

main90252-03011

9025204003

main90252-04003

9413061200

main94130-61200

9415010801

main94150-10801

9462211400

main94622-11400

9462211600

main94622-11600

39 parts on this diagram · 2 diagrams in section
