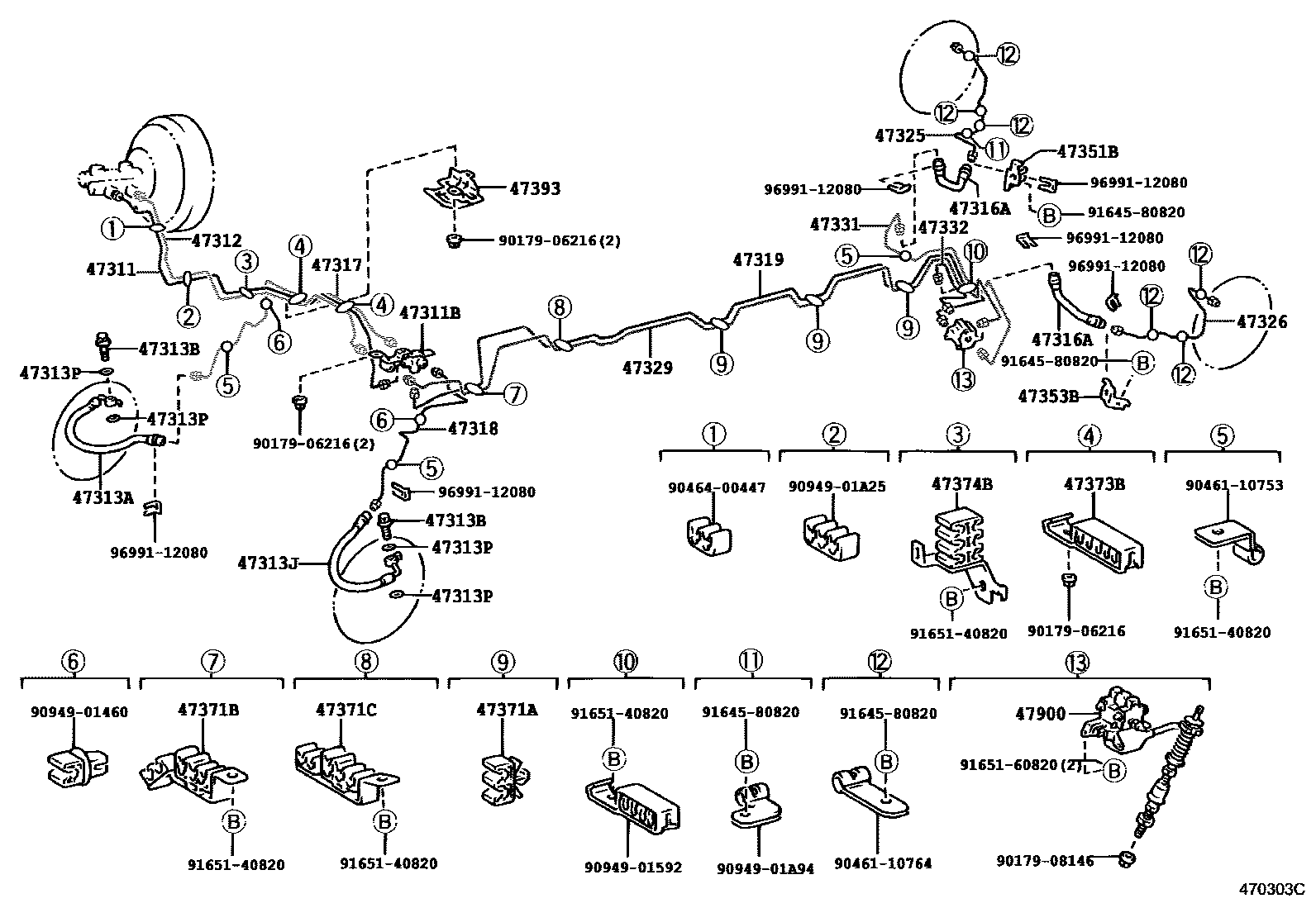

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0008 1��(ABS) 0009 1��(ABS) 0010 1��(ABS) 0011 1��(ABS) 0012 1��(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-26550iRCH42199706-199907

main47311-26560iLXH4#199706-199907

main47311-26570iRCH42199706

main47311-26580iLXH4#199706

main47311-26590iRCH41,47199704-199907

main47311-26600iKCH4#199704-199907

main47311-26721iRCH41,47199907

main47311-26731iKCH4#199907

main47311-26791iRCH42199907

main47311-26801iLXH4#199907

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10165iKCH4#,LXH4#,RCH4#199704

main90904-14005iLXH4#,RCH42199706

47312TUBE, FRONT BRAKE, NO.2

main47321-26440iRCH42199706

main47321-26450iLXH4#199706

main47322-26231iLXH4#199706-199907

main47322-26241iRCH42199706-199907

main47322-26250iRCH41,47199704-199907

main47322-26260iKCH4#199704-199907

main47322-26301iLXH4#199907

main47322-26311iRCH42199907

main47322-26321iRCH41,47199907

main47322-26331iKCH4#199907

47313TUBE, FRONT BRAKE, NO.3

main47313-26210iLXH4#,RCH42199706

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02829iKCH46,LXH49,RCH47199704-199907

main90947-02833iKCH40,LXH43,RCH41,42199704-199907

main90947-02C03iKCH46,LXH49,RCH47199907

main90947-02C15iKCH40,LXH43,RCH41,42199907

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iKCH4#,LXH4#,RCH4#199704

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02829iKCH46,LXH49,RCH47199704-199907

main90947-02834iKCH40,LXH43,RCH41,42199704-199907

main90947-02C03iKCH46,LXH49,RCH47199907

main90947-02C16iKCH40,LXH43,RCH41,42199907

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iKCH4#,LXH4#,RCH4#199704

47316TUBE, FRONT BRAKE, NO.6

main47316-26280iKCH40,LXH43,RCH41,42199704

main47316-26290iKCH46,LXH49,RCH47199704

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02828iKCH4#,LXH4#,RCH4#199704-199907

main90947-02C02iKCH4#,LXH4#,RCH4#199907

47317TUBE, FRONT BRAKE, NO.7

main47317-26180iLXH43,RCH42199706

main47317-26190iLXH49199706

47318TUBE, FRONT BRAKE, NO.8

main47318-26080iKCH40,LXH43,RCH41,42199704

main47318-26090iKCH46,LXH49,RCH47199704

47319TUBE, FRONT BRAKE, NO.9

main47319-26140iLXH43,RCH42199706-199804

main47319-26141iLXH43,RCH42199804

main47319-26150iLXH43,RCH42199706-199804

main47319-26151iLXH43,RCH42199804

main47319-26160iLXH49199706-199804

main47319-26161iLXH49199804

main47319-26170iLXH49199706-199804

main47319-26171iLXH49199804

47325TUBE, REAR BRAKE, NO.5

main47333-26030iLXH4#,RCH42199706-200110

sub47333-26080

main47333-26040iKCH4#;RCH41,47..W08S199704-199907

main47333-26080iLXH4#,RCH42200110

47326TUBE, REAR BRAKE, NO.6

main47334-26050iKCH4#;RCH41,47..W08S199704-199907

main47334-26070iLXH4#,RCH42199706-200110

sub47334-26090

main47334-26090iLXH4#,RCH42200110

47329TUBE, REAR BRAKE, NO.9

main47329-26120iLXH43,RCH42199706-199804

main47329-26121iLXH43,RCH42199804

main47329-26130iLXH49199706-199804

main47329-26131iLXH49199804

main47329-26140iKCH40,RCH41199704-199804

main47329-26141iKCH40,RCH41199804

main47329-26150iKCH46,RCH47199704-199804

main47329-26151iKCH46,RCH47199804

47331TUBE, REAR BRAKE, NO.10

main47331-26090iLXH4#,RCH42199706

main47331-26100iKCH4#,RCH41,47199704

47332TUBE, REAR BRAKE, NO.11

main47332-26050iLXH4#,RCH42199706

main47332-26060iKCH4#,RCH41,47199704

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26160iKCH46,LXH49,RCH47199704

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26150iKCH4#,LXH4#,RCH4#199704-199907

main47351-26200iKCH4#,LXH4#,RCH4#199907

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47352-26140iKCH4#,LXH4#,RCH4#199704-199907

main47352-26180iKCH4#,LXH4#,RCH4#199907

47371ACLAMP, BRAKE TUBE, NO.1

main90469-05013iKCH4#,LXH4#,RCH4#199704-199907

47371BCLAMP, BRAKE TUBE, NO.6

main47371-26140iKCH4#,LXH4#,RCH4#199704

47371CCLAMP, BRAKE TUBE, NO.7

main47371-26150iKCH4#,LXH4#,RCH4#199704-199804

main47371-26190iKCH4#,LXH4#,RCH4#199804

47373BCLAMP, BRAKE TUBE, NO.3

main47371-26110iKCH4#,LXH4#,RCH4#199704

sub47371-26050

47374BCLAMP, BRAKE TUBE, NO.4

main47371-26160iKCH4#,LXH4#,RCH4#199704

main90949-01A18iLXH43,RCH42199706-199907

47393INSULATOR, BRAKE TUBE HEAT

main47393-26040iKCH4#,LXH4#199704

main47393-26050iRCH4#199704

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-26480iLXH43,RCH42199706-199804

sub47900-26481

main47900-26481iLXH43,RCH42199804-200110

sub47900-26483

main47900-26483iLXH43,RCH42200110

main47900-26540iLXH49199706-199804

sub47900-26541

main47900-26541iLXH49199804-200110

sub47900-26543

main47900-26543iLXH49200110

9017906216

main90179-06216

9017908146

main90179-08146

9046110753

main90461-10753

9046110764

main90461-10764

9046400447

main90464-00447

9094901460

main90949-01460

9094901592

main90949-01592

9094901A25

main90949-01A25

9094901A94

main90949-01A94

9164580820

main91645-80820

9165140820

main91651-40820

9165160820

main91651-60820

9699112080

main96991-12080

41 parts on this diagram · 12 diagrams in section
