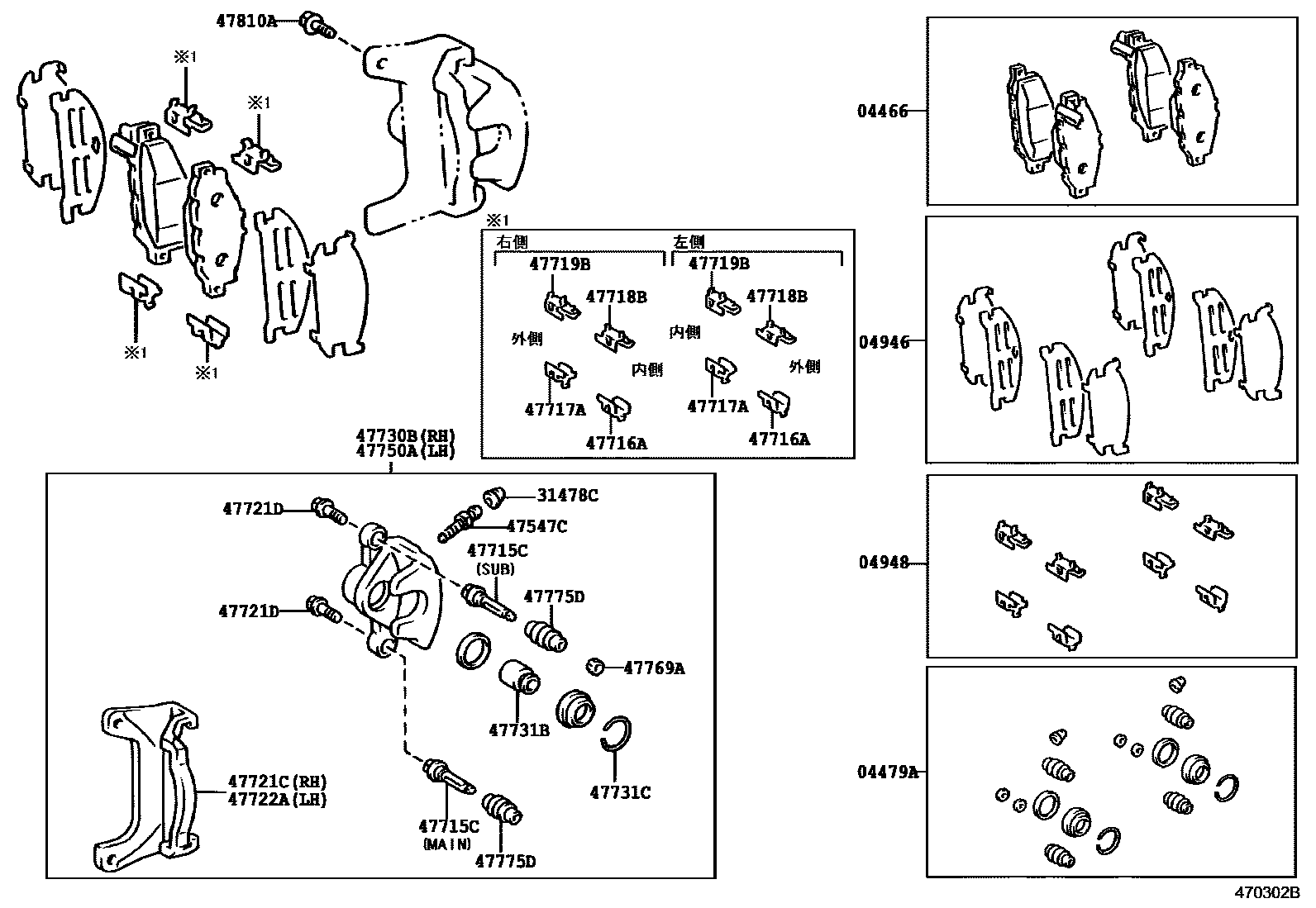

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-26010iKCH4#,RCH41,47199704-200203

sub04466-26020

main04466-26020iKCH4#,RCH41,47200203-200205

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-26070iKCH4#,RCH41,47199704

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30060iKCH4#,RCH41,47199704

04948FITTING KIT, DISC BRAKE, REAR

main04948-26010iKCH4#,RCH41,47199704

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iKCH4#,RCH41,47199704

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iKCH4#,RCH41,47199704

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22070iKCH4#,RCH41,47199704

main47715-22080iKCH4#,RCH41,47199704

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-30200iKCH4#,RCH41,47199704

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-30210iKCH4#,RCH41,47199704

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30090iKCH4#,RCH41,47199704

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30100iKCH4#,RCH41,47199704

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-26110iKCH4#,RCH41,47199704

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iKCH4#,RCH41,47199704

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-26040iKCH4#,RCH41,47199704

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-26140iKCH4#,RCH41,47199704

47731BPISTON, REAR DISC BRAKE

main47731-26030iKCH4#,RCH41,47199704

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iKCH4#,RCH41,47199704

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-26140iKCH4#,RCH41,47199704

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iKCH4#,RCH41,47199704

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-30070iKCH4#,RCH41,47199704

sub47775-50010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208iKCH4#,RCH41,47199704

21 parts on this diagram · 1 diagram in section
