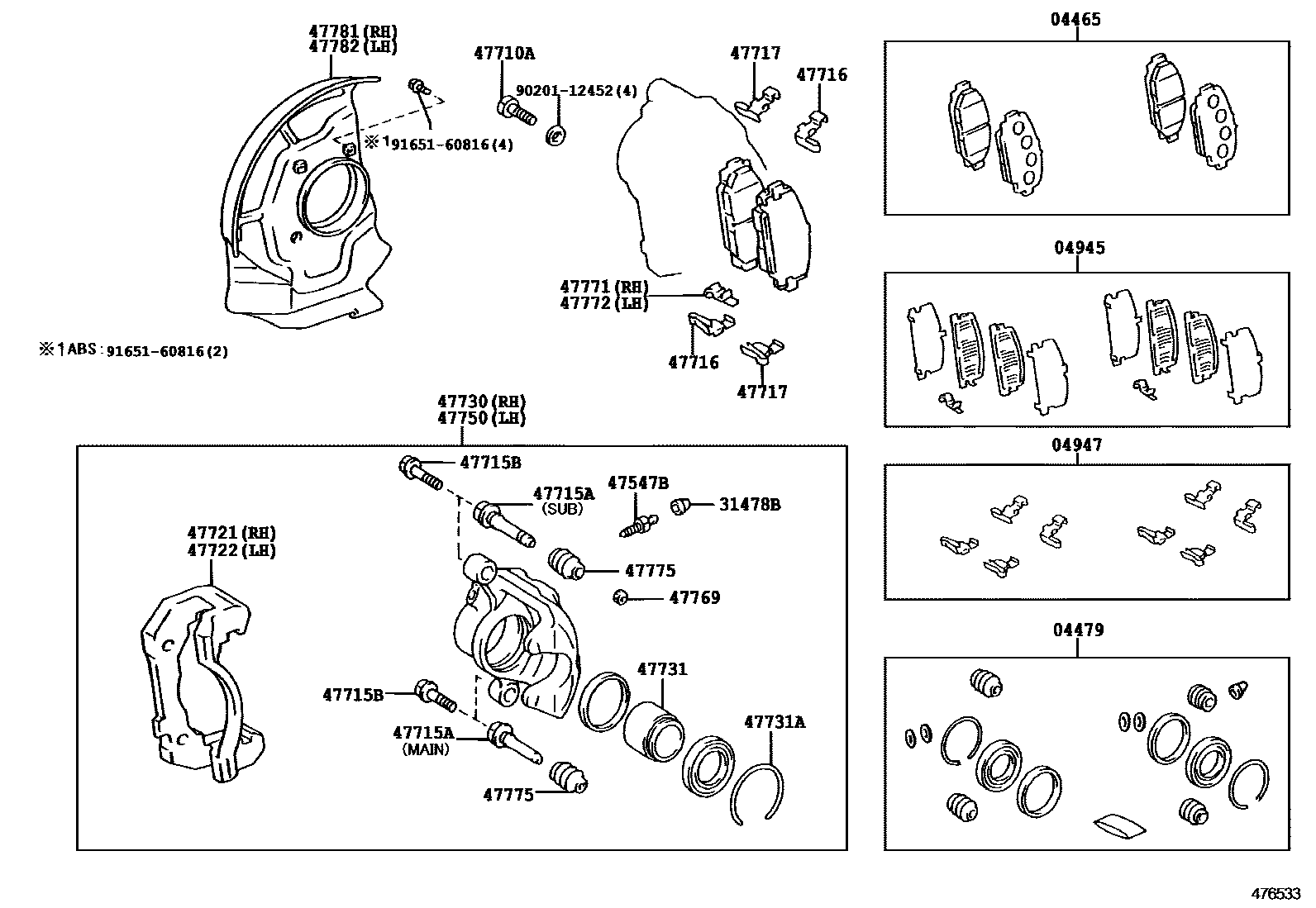

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-26300iKCH4#,LXH4#,RCH4#199704-200203

sub04465-26301

main04465-26301iKCH4#,LXH4#,RCH4#200203-200205

sub04465-26370

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-26060iKCH4#,LXH4#,RCH4#199704-199910

sub04479-26061

main04479-26061iKCH4#,LXH4#,RCH4#199910

sub04478-26030

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-26150iKCH4#,LXH4#,RCH4#199704-200011

sub04945-26151

main04945-26151iKCH4#,LXH4#,RCH4#200011

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26040iKCH4#,LXH4#,RCH4#199704

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKCH4#,LXH4#,RCH4#199704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iKCH4#,LXH4#,RCH4#199704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iKCH40,LXH43,RCH41,42199704

main90101-12149iKCH46,LXH49,RCH47199704

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iKCH4#,LXH4#,RCH4#199704

main47715-50030iKCH4#,LXH4#,RCH4#199704

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iKCH4#,LXH4#,RCH4#199704

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26050iKCH4#,LXH4#,RCH4#199704

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26020iKCH4#,LXH4#,RCH4#199704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26102iKCH4#,LXH4#,RCH4#199704

sub47721-26103

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-26032iKCH4#,LXH4#,RCH4#199704

sub47722-26033

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26122iKCH40,LXH43,RCH41,42199704

main47730-26132iKCH46,LXH49,RCH47199704

47731PISTON, FRONT DISC BRAKE

main47731-25010iKCH4#,LXH4#,RCH4#199704

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76001iKCH4#,LXH4#,RCH4#199704

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26122iKCH40,LXH43,RCH41,42199704

main47750-26132iKCH46,LXH49,RCH47199704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iKCH4#,LXH4#,RCH4#199704

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26030iKCH4#,LXH4#,RCH4#199704

47772PLATE, PAD WEAR INDICATOR, NO.2

main47772-26030iKCH4#,LXH4#,RCH4#199704

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iKCH4#,LXH4#,RCH4#199910

sub47775-50010

main47775-50010iKCH4#,LXH4#,RCH4#199704-199910

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-26010iLXH43,RCH42199706

main47703-26040iKCH40,LXH43,RCH41,42199704

main47781-26110iLXH49199706-200001

sub47781-26111

sub91611-60812

main47781-26111iLXH49200001

main47781-26120iKCH46,LXH49,RCH47199704-200001

sub47781-26121

sub91611-60812

main47781-26121iKCH46,LXH49,RCH47200001

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-26010iLXH43,RCH42199706

main47704-26040iKCH40,LXH43,RCH41,42199704

main47782-26110iLXH49199706-200001

sub47782-26111

sub91611-60812

main47782-26111iLXH49200001

main47782-26120iKCH46,RCH47..(G,V,WISTD)..(W07S,W08S)199804-200001

sub47782-26121

sub91611-60812

main47782-26120iLXH49;KCH46..G07S;KCH46,RCH47..E,STD,WINT199704-200001

sub47782-26121

sub91611-60812

main47782-26121iKCH46,LXH49,RCH47200001

9020112452

main90201-12452

9165160816

main91651-60816

25 parts on this diagram · 2 diagrams in section
