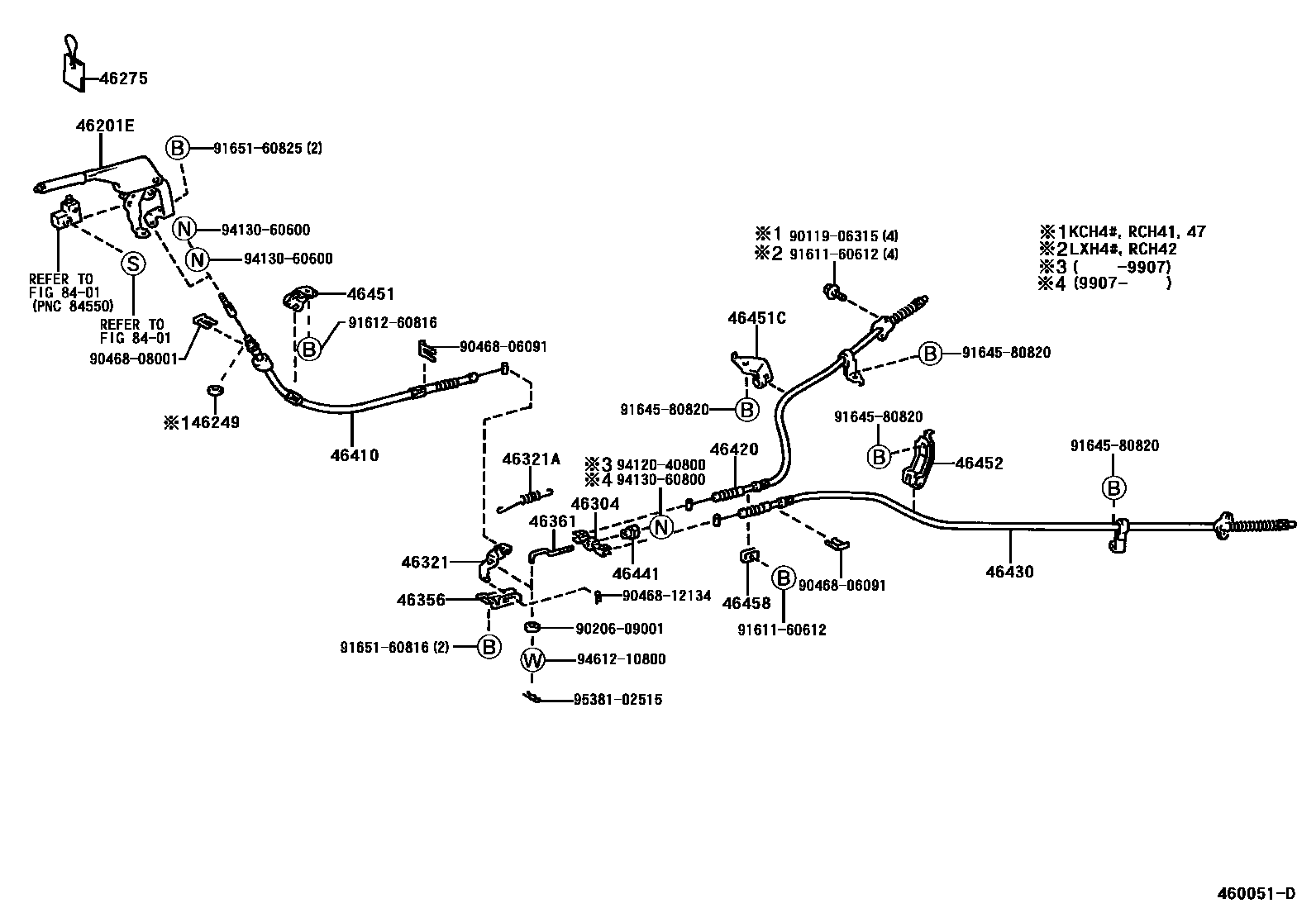

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26060-B0iKCH4#,RCH41,47..G08S,W08S199704-199907

BLUISH GRAY,TRIM1#

main46201-26060-B1iKCH4#,RCH41,47..WISTD199907

SHADOW GRAY,TRIM1#

main46201-26060-E1iKCH4#,RCH41,47..G,V199907

ORCHID BROWN,TRIM4#

main46201-26060-G0iKCH4#,RCH41,47..G,STD199704-199907

DK.SAGE,TRIM6#

main46201-26070-B0iLXH4#..4D199706-199907

sub46201-26060

main46201-26070-B1iLXH4#..4D199907

sub46201-26060

main46201-26080-B0iLXH4#,RCH42..STD199706-199907

BLUISH GRAY,TRIM1#

main46201-26080-B1iLXH4#,RCH42..STD199907

SHADOW GRAY,TRIM1#

main46201-26090-B0iKCH4#,RCH41,47..STD,WINT199704-199708

sub46201-26091

main46201-26090-G0iKCH4#,RCH41,47..G,STD199704-199708

sub46201-26091

main46201-26091-B0iKCH4#,RCH41,47..STD,WINT199708-199804

sub46201-26092

sub46275-26031

sub46410-26411

main46201-26091-G0iKCH4#,RCH41,47..G,STD199708-199804

sub46201-26092

sub46275-26031

sub46410-26411

main46201-26092-B0iKCH4#,RCH41,47..STD,WINT199804-199907

sub46201-26092

main46201-26092-B1iKCH4#,RCH41,47..WISTD199907

sub46201-26092

main46201-26092-E0iKCH4#,RCH41,47..(G,V)..W08S199907

sub46201-26092

main46201-26092-G0iKCH4#,RCH41,47..4D..(G,STD)199804-199907

sub46201-26092

46249SHIELD, PARKING BRAKE HOLE

main46249-28010iKCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)199704

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26030iKCH4#,RCH41,47..G,STD,WINT199708-199804

main46275-26031iKCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)199804

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iKCH4#,LXH4#,RCH4#199704

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26180iKCH4#,LXH4#,RCH4#199704

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-14067iKCH4#,LXH4#,RCH4#199704

46356BRACKET, EQUALIZER SUPPORT

main46356-28031iKCH4#,LXH4#,RCH4#199704

46361ROD, PARKING BRAKE PULL

main46361-26070iKCH4#,LXH4#,RCH4#199704

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26400iKCH4#,LXH4#,RCH4#199704-200205

main46410-26410iKCH4#,RCH41,47..G,STD,WINT199704-199804

main46410-26411iKCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD)199804-200205

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26470iLXH43,RCH42199706

main46420-26480iLXH49199706

main46420-26490iKCH40,RCH41199704

main46420-26500iKCH46,RCH47199704

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26320iLXH43,RCH42199706

main46430-26330iLXH49199706

main46430-26340iKCH40,RCH41199704

main46430-26350iKCH46,RCH47199704

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iKCH4#,LXH4#,RCH4#199704

46451BRACKET, CABLE SUPPORT

main46451-26240iKCH4#,LXH4#,RCH4#199704

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26220iKCH4#,LXH4#,RCH4#199704

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26160iKCH4#,LXH4#,RCH4#199704

46458RETAINER, CABLE

main46458-28010iKCH4#,LXH4#,RCH4#199704

8401

9011906315

main90119-06315

9020609001

main90206-09001

9046806091

main90468-06091

9046808001

main90468-08001

9046812134

main90468-12134

9161160612

main91611-60612

9161260816

main91612-60816

9164580820

main91645-80820

9165160816

main91651-60816

9165160825

main91651-60825

9412040800

main94120-40800

9413060600

main94130-60600

9413060800

main94130-60800

9461210800

main94612-10800

9538102515

main95381-02515

32 parts on this diagram · 2 diagrams in section
