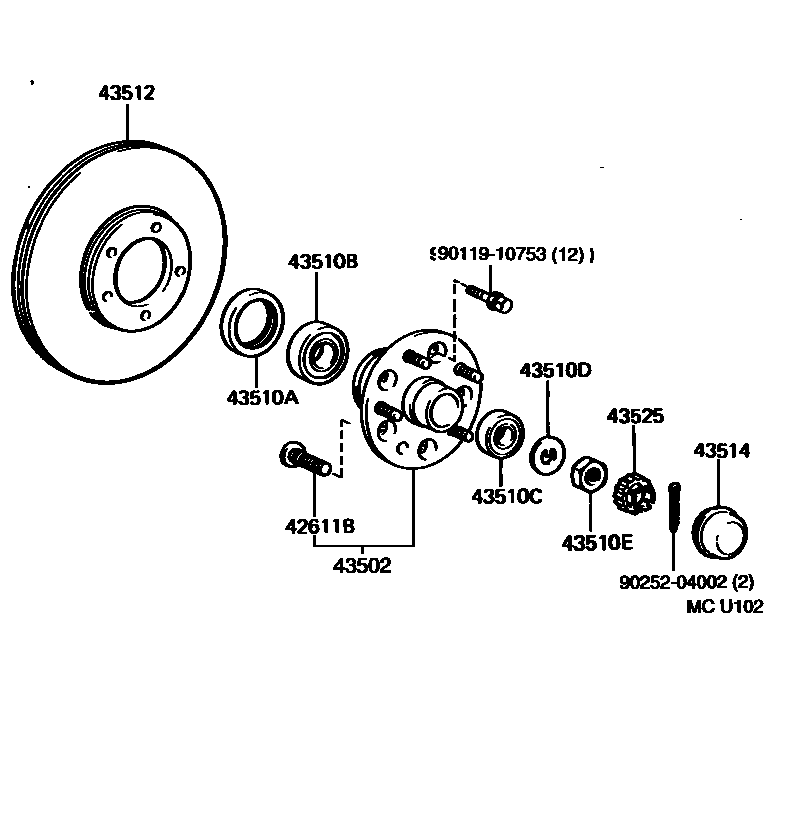

FRONT AXLE HUB

0001 1��(ABS) 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS)

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iKCH40,LXH43,RCH41,42199704

main90942-02049iKCH46,LXH49,RCH47199704

43502HUB SUB-ASSY, FRONT AXLE

main43502-26070iLXH43,RCH42199706-200205

main43503-26040iKCH40,LXH43,RCH41,42199704-200205

main43503-29025iKCH46,LXH49,RCH47199704-200205

sub43503-29026

main43511-39015iLXH49199706-199907

sub43502-29095

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iKCH40,RCH41..G,STD,WINT199704-199706

main90311-66003iKCH46,LXH49,RCH47199704

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iKCH46,LXH49,RCH47199704

main90368-34001iKCH40,RCH41..G,STD,WINT199704-199706

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iKCH46,LXH49,RCH47199704

main90368-21001iKCH40,RCH41..G,STD,WINT199704-199706

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iKCH40,RCH41..G,STD,WINT199704-199706

main90214-42030iKCH46,LXH49,RCH47199704

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iKCH40,LXH43,RCH41,42199704-199706

43512DISC, FRONT

main43512-26130iLXH49;KCH46,RCH47..E,STD,V,WISTD199704

main43512-26140iLXH43;KCH40,RCH41,42..E,STD,V,WISTD199704

main43512-26160iKCH40,LXH43,RCH41,42199704

sub43512-26140

main43512-26180iKCH46,RCH47..G,STD,V,WINT,WISTD199704

sub43512-26130

43514CAP, FRONT HUB GREASE

main43514-35010iKCH40,RCH41..G,STD,WINT199704-199706

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iKCH40,RCH41..G,STD,WINT199704-199706

9011910753

main90119-10753

9025204002

main90252-04002

12 parts on this diagram · 4 diagrams in section
