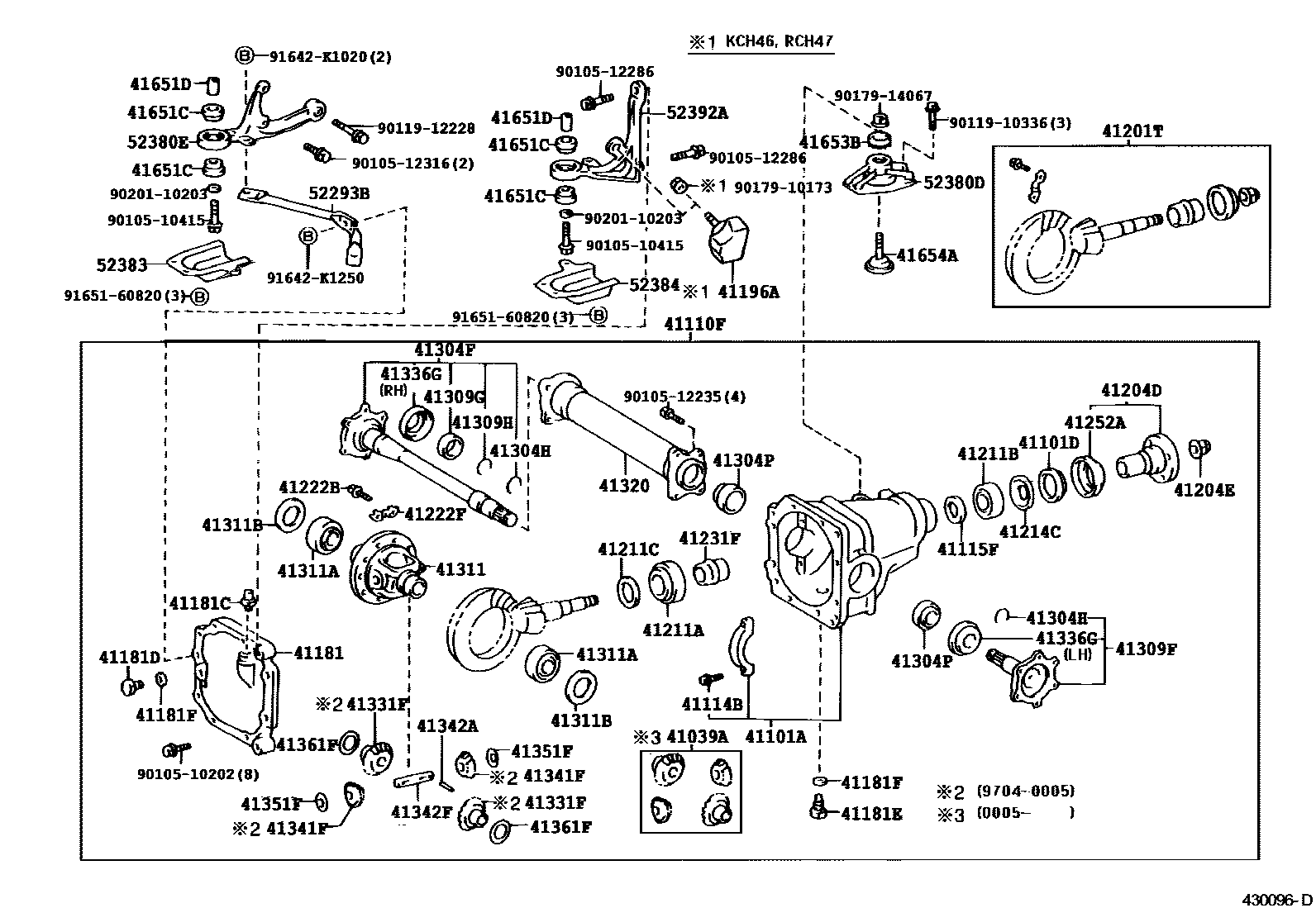

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
sub41101-26022
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
sub90311-38066
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41181COVER, FRONT DIFFERENTIAL CARRIER
sub41108-0W041
41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
sub90366-30078
41211CGEAR, DIFFERENTIAL RING
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41331FGEAR, FRONT DIFFERENTIAL SIDE
sub41331-14041
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
41341FPINION, FRONT DIFFERENTIAL
sub41341-30050
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41651CCUSHION, FRONT DIFFERENTIAL MOUNT, NO.2
41651DCOLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION)
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
52293BBRACE, FRONT DIFFERENTIAL SUPPORT
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
52380ESUPPORT ASSY, DIFFERENTIAL
52383PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.1
52384PROTECTOR, FRONT DIFFERENTIAL SUPPORT, NO.2
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
9010510202
main90105-10202
9010510415
main90105-10415
9010512235
main90105-12235
9010512286
main90105-12286
9010512316
main90105-12316
9011910336
main90119-10336
9011912228
main90119-12228
9017910173
main90179-10173
9017914067
main90179-14067
9020110203
main90201-10203
91642K1020
main91642-K1020
91642K1250
main91642-K1250
9165160820
main91651-60820
63 parts on this diagram · 1 diagram in section
