REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41181JCOVER, REAR DIFFERENTIAL CARRIER
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41311JCASE, REAR DIFFERENTIAL
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41651ECOLLAR (FOR REAR DIFFERENTIAL MOUNT CUSHION)
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
52380SUPPORT, REAR DIFFERENTIAL, NO.1
52391BSUPPORT, DIFFERENTIAL
9010514110
main90105-14110
9010912066
main90109-12066
9011914066
main90119-14066
9011914067
main90119-14067
9011914080
main90119-14080
9017912056
main90179-12056
9017914007
main90179-14007
9161160816
main91611-60816
9415011400
main94150-11400

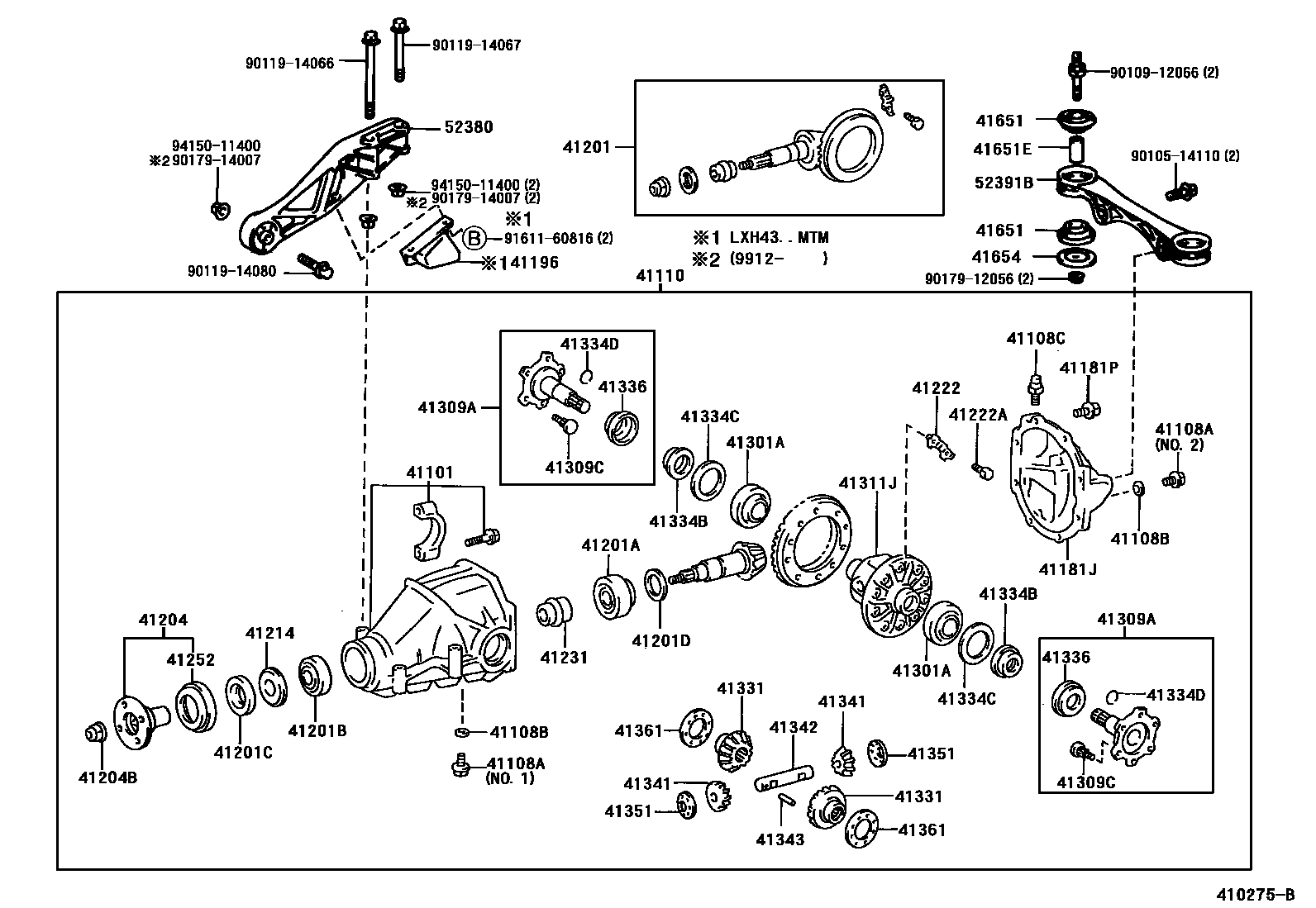

48 parts on this diagram · 3 diagrams in section
