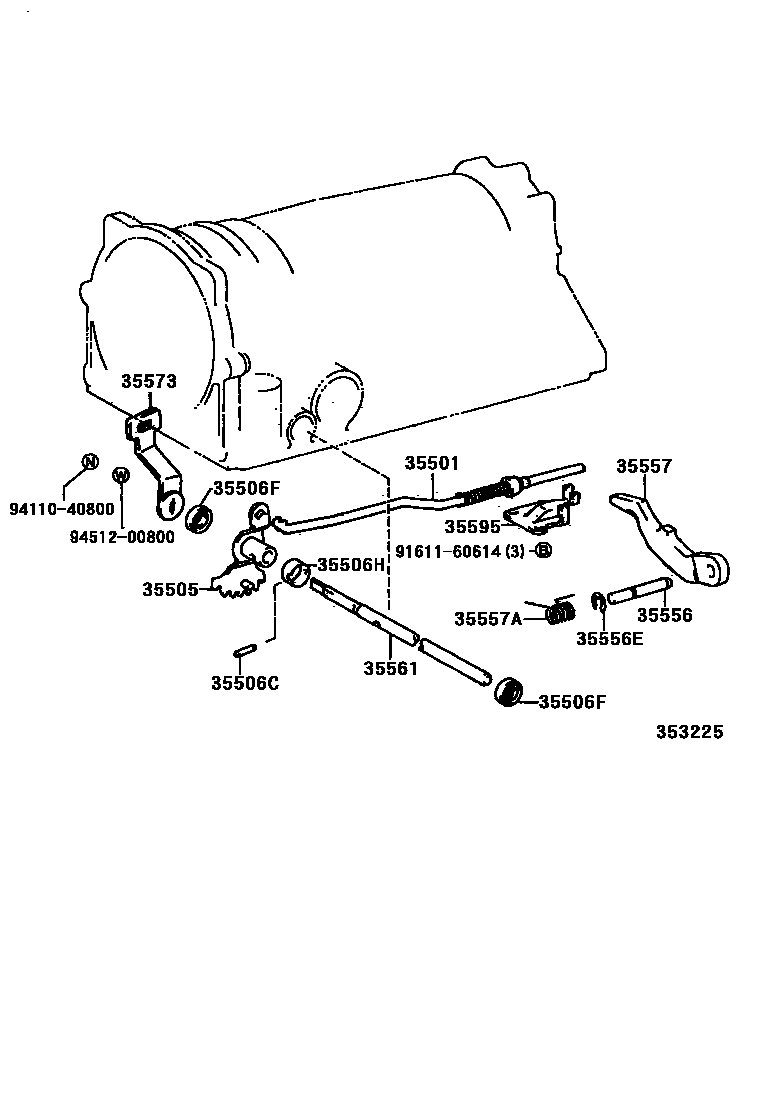

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A343F 0003 1A43DE,A43DF,A45DF,A45DL 0005 1A340E,A343F 0006 1A43DE,A43DF 0007 1A45DF,A45DL 0008 1A340E,A343F 0009 1A45DL

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iLXH4#,RCH41,47..ATM199704-200205

main35501-30010iKCH4#199704-200205

main35501-60010iRCH41,47199907-200205

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iLXH4#,RCH42..ATM199704-200205

main35505-50010iKCH4#,RCH41,47199704-200205

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKCH4#,LXH4#,RCH4#..ATM199704-200205

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iLXH4#,RCH41,47..ATM199704-200205

main90311-12002iKCH4#199704-200205

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iLXH4#,RCH41,47..ATM199704-200205

sub90560-20025

main90560-20006iKCH4#199704-200205

35556SHAFT, PARKING LOCK PAWL

main35556-26010iLXH4#,RCH42..ATM199704-200205

main35556-30020iKCH4#,RCH41,47199704-200205

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKCH4#,LXH4#,RCH4#..ATM199704-200205

35557PAWL, PARKING LOCK

main35557-26020iLXH43,RCH41,47..ATM199704-200205

main35557-26031iLXH49..ATM199706-200205

main35557-30020iKCH4#199704-200205

main35557-60020iRCH41,47199907-200205

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iLXH4#,RCH42..ATM199704-200205

main90508-21002iKCH4#199704-200205

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iLXH4#,RCH41,47..ATM199704-200205

main35561-35010iKCH4#199704-200205

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26050iKCH4#199704-200205

main35573-26060iLXH4#,RCH41,47..ATM199704-200205

main35573-26070iRCH41,47199907-200205

35595BRACKET, PARKING LOCK PAWL

main35595-26010iLXH49..ATM199706-200205

main35595-30010iKCH4#199704-200205

main35595-40010iLXH43,RCH41,47..ATM199704-200205

main35595-60010iRCH41,47199907-200205

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 7 diagrams in section
