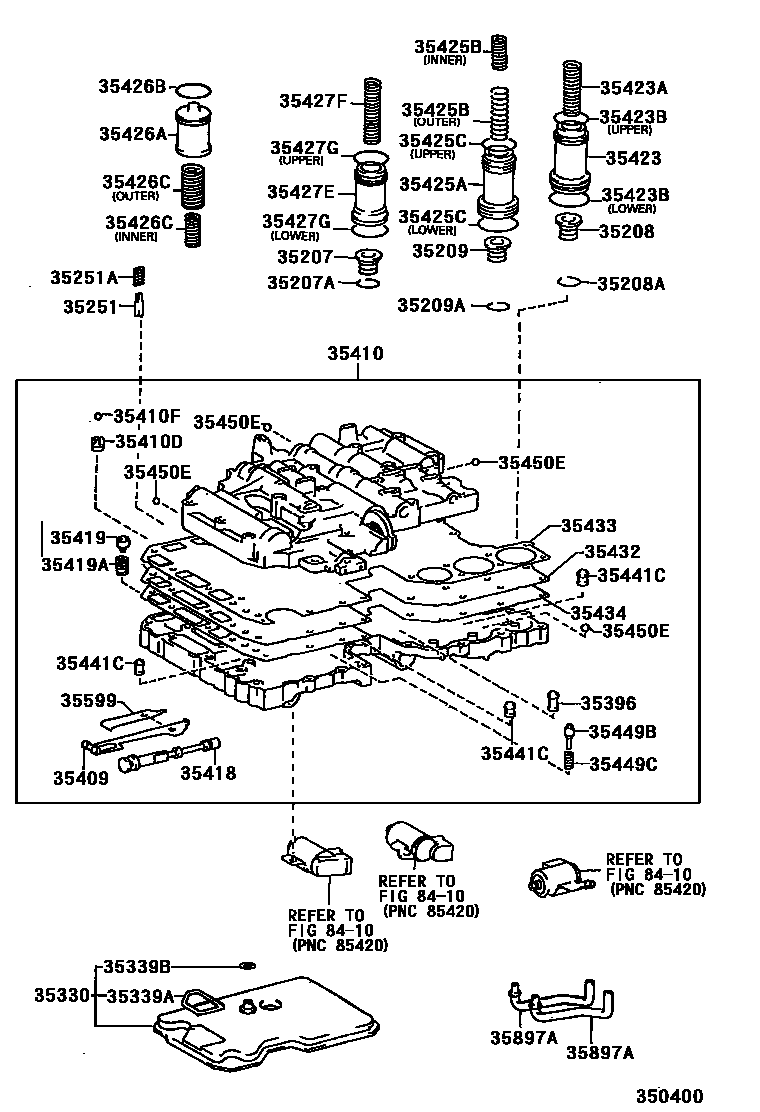

VALVE BODY & OIL STRAINER (ATM)

0001 1A340E,A343F 0002 1A340E,A343F 0003 1A340E,A343F 0004 1A340E,A343F 0005 1A43DE,A43DF 0006 1A43DE,A43DF 0007 1A43DE,A43DF 0008 1A45DF,A45DL 0010 1A45DF 0011 1A45DF,A45DL 0012 1A45DF,A45DL 0013 1A45DL,A45DF 0014 1A45DF,A45DL 0016 1A45DF,A45DL 0017 1A340E,A343F 0018 1A340E,A343F 0019 1A340E,A343F 0020 1A340E,A343F 0021 1A340E,A343F 0022 1A340E,A343F 0023 1A340E,A343F 0024 1A45DL 0025 1A45DL 0026 1A45DL

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iKCH4#199704-200205

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iKCH4#199704-200205

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iRCH41,47199704-199907

main35208-28010iLXH4#..ATM199706-200205

main35208-30010iKCH4#,RCH41,47199907-200205

main35208-35010iKCH4#199704-199907

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKCH4#,LXH4#,RCH41,47..ATM199704-200205

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKCH4#199704-200205

main35209-30010iRCH41,47199907-200205

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iKCH4#199704-200205

35251BODY, CHECK BALL

main35251-30020iKCH4#199704-200205

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iKCH4#199704-200205

35330STRAINER ASSY, VALVE BODY OIL

main35330-30011iKCH4#199704-199907

main35330-30020iKCH4#,RCH41,47199907-200205

35339GASKET, OIL STRAINER

main35339-28020iLXH4#,RCH42..ATM199706

main35339-28030iRCH41,47199704-199907

35339AGASKET, OIL STRAINER, NO.1

main35339-30070iKCH4#199704-199907

35339BGASKET, OIL STRAINER, NO.2

main90430-10010iKCH4#199704-199907

35396STRAINER, THROTTLE OIL

main35396-30010iKCH4#199704-199907

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iKCH4#199704-200205

main35409-35010iLXH4#,RCH42..ATM199704-200205

35410BODY ASSY, TRANSMISSION VALVE

main35410-26390iKCH40199704-199907

main35410-26590iKCH40199907-200205

main35410-26600iKCH46199907-200205

main35410-26610iRCH41199907-200205

main35410-26620iRCH47199907-200205

main35410-35381iKCH46199704-199907

35410DVALVE, CHECK

main90917-10073iKCH4#199704-199907

35410FBALL (FOR CHECK VALVE)

main90360-06004iKCH4#199704-199907

35418VALVE, MANUAL

main35418-24010iKCH4#,RCH41,47199907-200205

main35418-30050iLXH4#,RCH42..ATM199706-200205

main35418-30060iRCH41,47199704-199907

main35418-30070iKCH4#199704-199907

35419VALVE, CHECK, NO.1

main35419-12030iKCH4#199704-199907

main35419-22010iLXH4#,RCH42..ATM199704-200205

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-09093iKCH4#,RCH41,47199907-200205

main90501-11039iKCH4#199704-199907

main90501-16083iLXH4#,RCH42..ATM199704-200205

35423PISTON, B-2 ACCUMULATOR

main35421-24010iRCH42199907-200205

main35421-26010iLXH4#..ATM199706-200205

main35421-30020iRCH41,47199704-199907

main35423-30030iKCH4#,RCH41,47199704-200205

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24014iKCH4#199907-199911

main90501-24015iRCH41,47199907-200205

main90501-25028iKCH4#199911-200205

main90501-25033iLXH4#..ATM199706-200205

main90501-26041iRCH41,47199704-199907

main90501-28011iKCH4#199704-199907

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKCH4#199707-200205

main90301-23194iLXH4#,RCH41,47..ATM199704-199808

main90301-29011iLXH4#,RCH42..ATM199808-200205

main90301-29187iLXH4#,RCH41,47..ATM199704-199808

main90301-31002iKCH4#199704-199707

sub90301-31010

main90301-31010iKCH4#199707-200205

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iLXH4#,RCH41,47..ATM199704-199907

35425APISTON, C-2 ACCUMULATOR

main35423-30010iLXH43,RCH42..ATM199706-200205

main35425-30020iKCH4#199704-200205

main35441-30010iLXH49..ATM199704-200205

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKCH4#199704-200205

main90501-23093iRCH41,47199907-200205

main90501-25027iKCH4#199704-200205

main90501-26016iLXH49..ATM199706-200205

main90501-27013iRCH41,47199704-199907

main90501-27016iLXH43..ATM199706-200205

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iLXH4#,RCH41,47..ATM199808-200205

main90301-18186iLXH4#,RCH41,47..ATM199704-199808

sub90301-18010

main90301-25003iKCH4#199704-199707

sub90301-25010

main90301-25010iKCH4#,RCH41,47199707-200205

main90301-26012iLXH4#,RCH41,47..ATM199808-200205

main90301-26190iLXH4#,RCH41,47..ATM199704-199808

main90301-31002iKCH4#199704-199707

sub90301-31010

main90301-31010iKCH4#,RCH41,47199707-200205

35426APISTON, C-0 ACCUMULATOR

main35426-40010iKCH4#199704-200205

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24001iKCH4#199704-199707

sub90301-24010

main90301-24010iKCH4#,RCH41,47199707-200205

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iKCH4#199704-200205

main90501-23073iKCH4#199704-200205

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iKCH4#199704-200205

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iKCH4#199704-200205

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20002iKCH4#199704-199707

main90301-20008iKCH4#199707-200205

main90301-26002iKCH4#199704-199707

sub90301-26011

main90301-26011iKCH4#,RCH41,47199707-200205

35432PLATE, VALVE BODY, NO.1

main35432-24041iKCH40199704-199907

main35432-26110iLXH43..ATM199706-200205

main35432-26130iRCH41,47199704-199907

main35432-26220iRCH41199907-200205

main35432-26230iRCH47199907-200205

main35432-26240iRCH42199907-200205

main35432-26260iLXH4#..ATM199907-200007

main35432-26330iKCH40199907-200205

main35432-35130iKCH46199704-199907

main35432-60180iKCH46199907-200205

35433GASKET, VALVE BODY, NO.1

main35433-14012iLXH43..ATM199706-200205

main35433-22041iRCH41,47199704-199907

main35433-26010iRCH42199907-200205

main35433-30064iKCH4#199704-199907

main35433-60040iKCH4#,RCH41,47199907-200205

35434GASKET, VALVE BODY, NO.2

main35434-14012iLXH4#..ATM199706-200205

main35434-22041iRCH41,47199704-199907

main35434-26010iLXH4#,RCH42..ATM199907-200205

main35434-30076iKCH4#199704-199907

main35434-60040iKCH4#,RCH41,47199907-200205

35441CSTRAINER, SOLENOID OIL

main35441-24010iKCH4#,RCH41,47199907-200205

main35441-24020iKCH4#,RCH41,47199907-200205

main35441-30020iKCH4#199704-199907

main35441-30031iKCH4#199704-199907

main35441-50030iKCH4#,RCH41,47199907-200205

35449BVALVE, PRESSURE RELIEF

main35449-32010iKCH4#199704-199907

35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)

main90501-09032iKCH4#199704-199907

35450EBALL (FOR UPPER VALVE BODY)

main35495-22020iKCH4#199704-200205

main35496-22030iKCH4#,RCH41,47199704-200205

35599COVER, MANUAL DETENT SPRING

main35599-22020iKCH4#199704-200205

main35599-28010iLXH4#,RCH42..ATM199704-200205

35897ATUBE, 1ST & REVERSE BRAKE, NO.1

main35897-30010iRCH41,47199704-199907

main35897-30020iKCH4#199704-199907

8410

43 parts on this diagram · 24 diagrams in section
