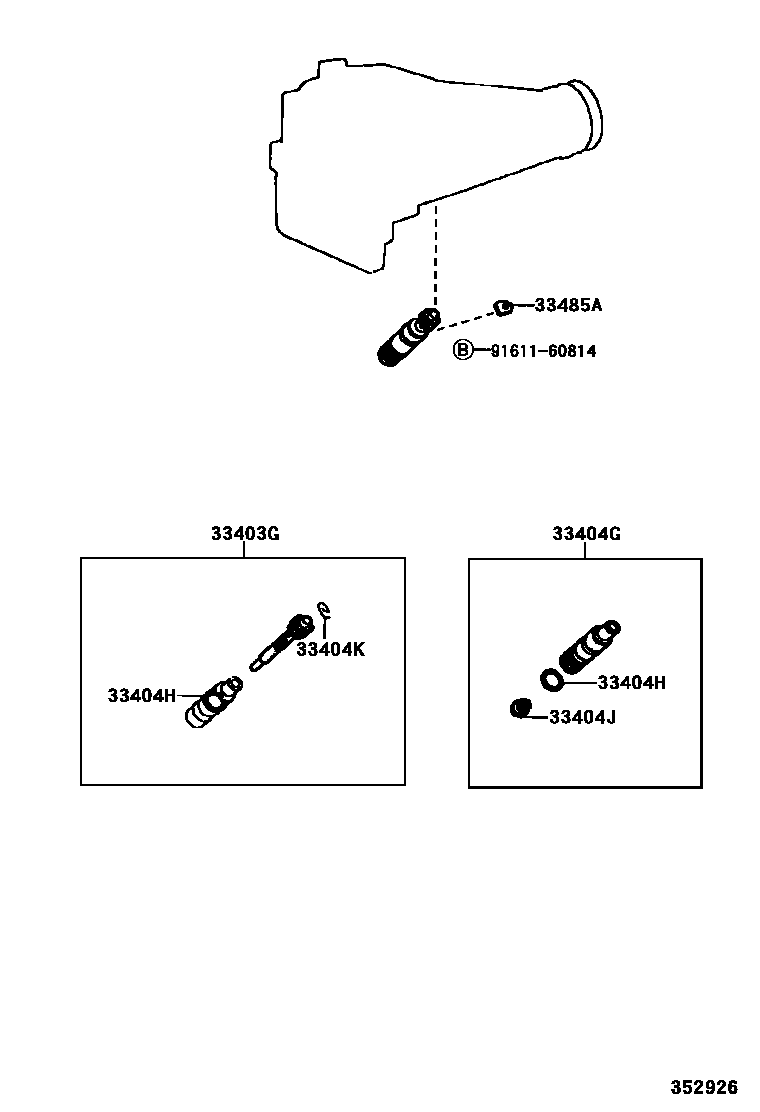

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A45DF 0002 1A45DL

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29055iLXH49..ATM199706

main33482-39375iLXH43,RCH42..ATM199706

sub33482-39901

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-35010iLXH49..ATM199706

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLXH49..ATM199706

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLXH49..ATM199706-199907

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLXH49..ATM199706

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iLXH49..ATM199706

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
