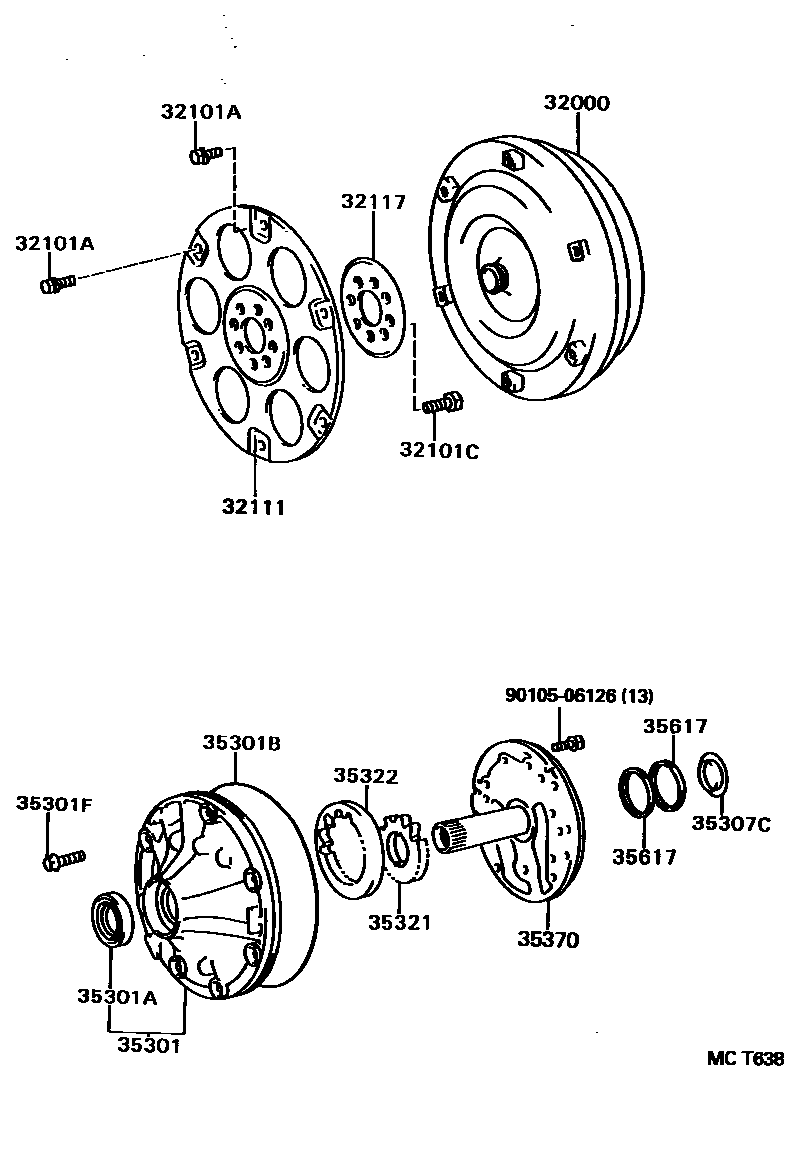

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E,A340F 0002 1A43DE,A43DF,A45DF,A45DL 0004 1A340E,A343F

32000CONVERTER ASSY, TORQUE

main32000-26040iRCH41,47199704-199907

main32000-26050iRCH42199907

main32000-26060iLXH4#..ATM199706

main32000-26080iRCH41,47199907

sub32000-60320

main32000-35170iKCH4#199704-199907

main32000-35190iKCH4#199907

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iRCH4#..ATM199704

main32101-35020iLXH4#..ATM199706

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iKCH4#199907

main90105-10414iKCH4#199907

main90119-09009iKCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT199704

main90119-09010iKCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT199704

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iRCH4#..ATM199704

main90105-12014iLXH4#..ATM199706

main90105-13010iKCH4#199704

32111PLATE, PUMP IMPELLER DRIVE

main32111-35030iKCH4#199907

sub32111-60080

main32111-60050iKCH4#199704-199907

32117SPACER, DRIVE PLATE, REAR

main32117-26010iRCH4#..ATM199704

main32117-35010iLXH4#..ATM199706

main32117-60050iKCH4#199704

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iLXH4#,RCH41,47..ATM199704-200205

main35301-30040iKCH4#,RCH41,47199704-200205

main35301-35010iRCH41,47199908-200205

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iLXH4#,RCH41,47..ATM199704-200005

main90311-38029iKCH4#199704-200205

sub90311-38020

main90311-38064iLXH4#,RCH42..ATM200005-200205

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iLXH4#,RCH41,47..ATM199704-200205

main90301-99033iKCH4#,RCH41,47199704-200205

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iKCH4#,RCH41,47199704-200205

main90105-08137iLXH4#,RCH41,47..ATM199704-200205

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30020iKCH4#199704-199906

sub35789-30340

main35789-30340iKCH4#199906-200205

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iRCH41,47199908-200205

main35321-12030iRCH41,47199908-200205

main35321-12040iRCH41,47199908-200205

main35321-12050iRCH41,47199908-200205

main35321-12060iRCH41,47199908-200205

main35321-12070iKCH4#199704-200205

main35321-12080iKCH4#199704-200205

main35321-12090iKCH4#199704-200205

main35321-12100iKCH4#199704-200205

main35321-12110iKCH4#199704-200205

main35321-22020iLXH4#,RCH42..ATM199704-200205

main35321-22030iLXH4#,RCH42..ATM199704-200205

main35321-22040iLXH4#,RCH41,47..ATM199704-200205

main35321-22050iLXH4#,RCH41,47..ATM199704-200205

main35321-22060iLXH4#,RCH41,47..ATM199704-200205

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iRCH41,47199908-200205

main35322-12020iRCH41,47199908-200205

main35322-12030iRCH41,47199908-200205

main35322-12040iRCH41,47199908-200205

main35322-12050iRCH41,47199908-200205

main35322-12060iKCH4#199704-200205

main35322-12070iKCH4#199704-200205

main35322-12080iKCH4#199704-200205

main35322-12090iKCH4#199704-200205

main35322-12100iKCH4#199704-200205

main35322-22020iLXH4#,RCH42..ATM199704-200205

main35322-22030iLXH4#,RCH41,47..ATM199704-200205

main35322-22040iLXH4#,RCH41,47..ATM199704-200205

main35322-22050iLXH4#,RCH41,47..ATM199704-200205

main35322-22060iLXH4#,RCH42..ATM199704-200205

35370SHAFT ASSY, STATOR

main35370-14012iLXH4#,RCH42..ATM199704-200205

main35370-30031iKCH4#199704-200205

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iKCH4#,RCH41,47199704-200205

main35617-32010iLXH4#,RCH41,47..ATM199704-200205

9010506126

main90105-06126

16 parts on this diagram · 3 diagrams in section
