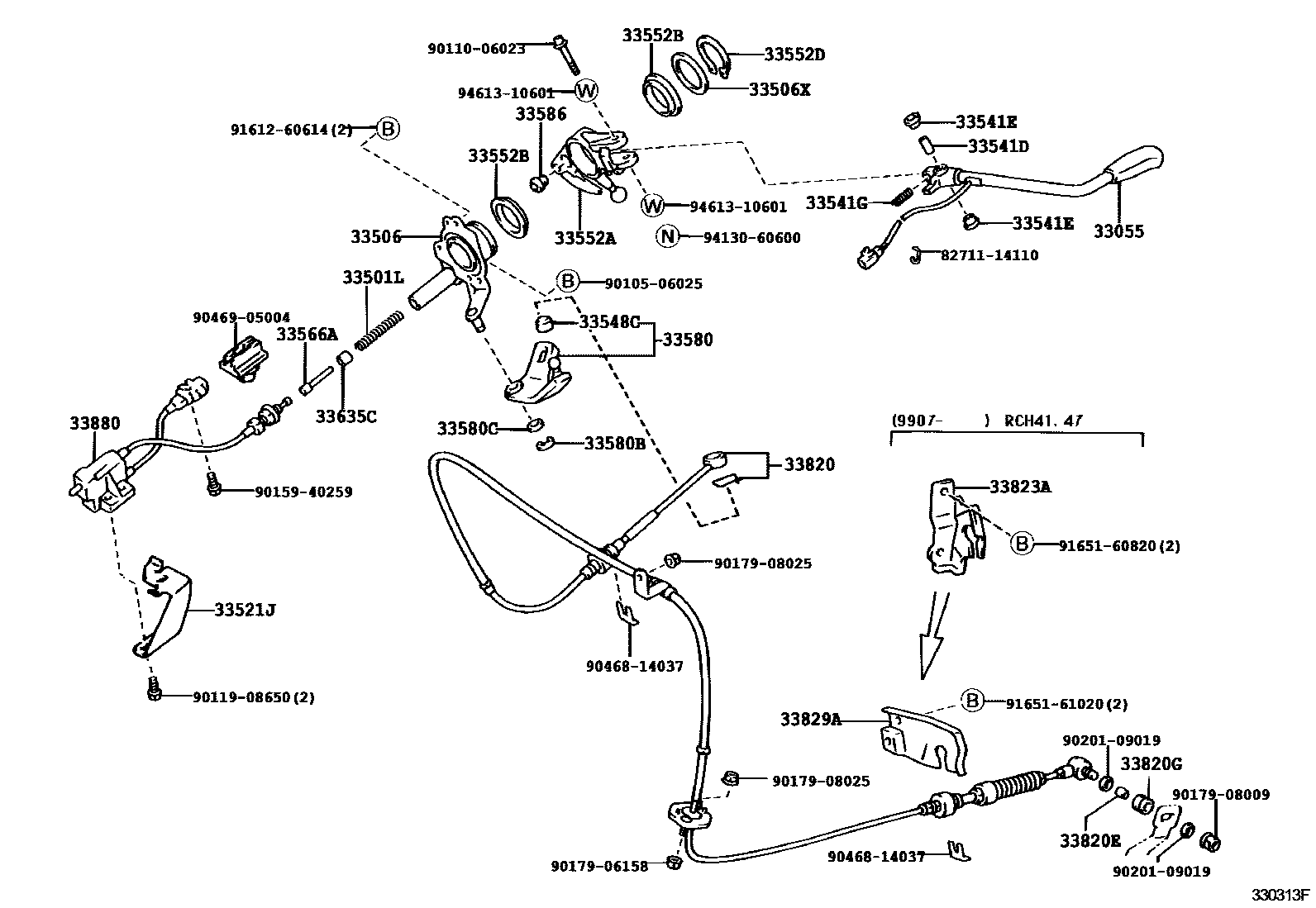

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1���������-� ���� 0003 1����������� ����

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-26080iKCH4#,LXH4#,RCH4#..ATM199704

33501LSPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)

main90501-06085iKCH4#,LXH4#,RCH4#..ATM199704

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-26050iLXH4#..G;KCH4#,RCH41,47199704

main33506-26090iLXH4#,RCH42..ATM..STD199706

33506XSPACER (FOR SHIFT LEVER ARM)

main90560-47001iKCH4#,LXH4#,RCH4#..ATM199704

main90560-47002iKCH4#,LXH4#,RCH4#..ATM199704

33521JHOUSING, SHIFT LEVER (FOR COLUMN SHIFT)

main33521-26110iKCH4#,LXH4#,RCH4#..ATM199704

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-06062iKCH4#,LXH4#,RCH4#..ATM199704

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-10017iKCH4#,LXH4#,RCH4#..ATM199704

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16146iKCH4#,LXH4#,RCH4#..ATM199704

33548CBUSH, SHIFT LEVER (FOR COLUMN SHIFT)

main33548-12021iKCH4#,LXH4#,RCH4#..ATM199704

33552AARM, SHIFT LEVER

main33552-26020iKCH4#,LXH4#,RCH4#..ATM199704

33552BBUSH (FOR SHIFT LEVER ARM)

main90386-47001iKCH4#,LXH4#,RCH4#..ATM199704

33552DRING, SNAP (FOR SHIFT LEVER ARM)

main90520-45010iKCH4#,LXH4#,RCH4#..ATM199704

33566APIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)

main33566-26020iKCH4#,LXH4#,RCH4#..ATM199704

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-26030iKCH4#,LXH4#,RCH4#..ATM199704

33580BRING, SHAFT SNAP (FOR SHIFTING BELLCRANK)

main96160-01000iKCH4#,LXH4#,RCH4#..ATM199704

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90560-11028iKCH4#,LXH4#,RCH4#..ATM199704

33586STOPPER, CONTROL SHIFT LEVER

main33586-28011iKCH4#,LXH4#,RCH41,47..ATM199704-199904

sub33586-28012

main33586-28012iKCH4#,LXH4#,RCH4#..ATM199904

33635CGUIDE, WIRE

main33635-28040iKCH4#,LXH4#,RCH4#..ATM199704

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-26110iKCH4#199704

main33820-26130iLXH4#,RCH41,47..ATM199704-199907

main33820-26160iRCH41,47199907

33820EBUSH (FOR TRANSMISSION CONTROL CABLE)

main90389-08005iRCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM199704-199907

33820GGROMMET (FOR TRANSMISSION CONTROL CABLE)

main90480-17177iRCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM199704-199907

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-26050iRCH41,47199907

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-26020iKCH4#,LXH4#,RCH41,47..ATM199704-199907

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-26030iKCH4#,LXH4#,RCH4#..ATM199704

main33880-26040iKCH4#,RCH41,47..4D..(G,STD,WINT)199704-199907

main33880-26070iKCH4#,RCH41,47..W08S199907-200002

sub33880-26071

main33880-26071iKCH4#,RCH41,47..W08S200002

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9010506025

main90105-06025

9011006023

main90110-06023

9011908650

main90119-08650

9015940259

main90159-40259

9017906158

main90179-06158

9017908009

main90179-08009

9017908025

main90179-08025

9020109019

main90201-09019

9046814037

main90468-14037

9046905004

main90469-05004

9161260614

main91612-60614

9165160820

main91651-60820

9165161020

main91651-61020

9413060600

main94130-60600

9461310601

main94613-10601

40 parts on this diagram · 3 diagrams in section
