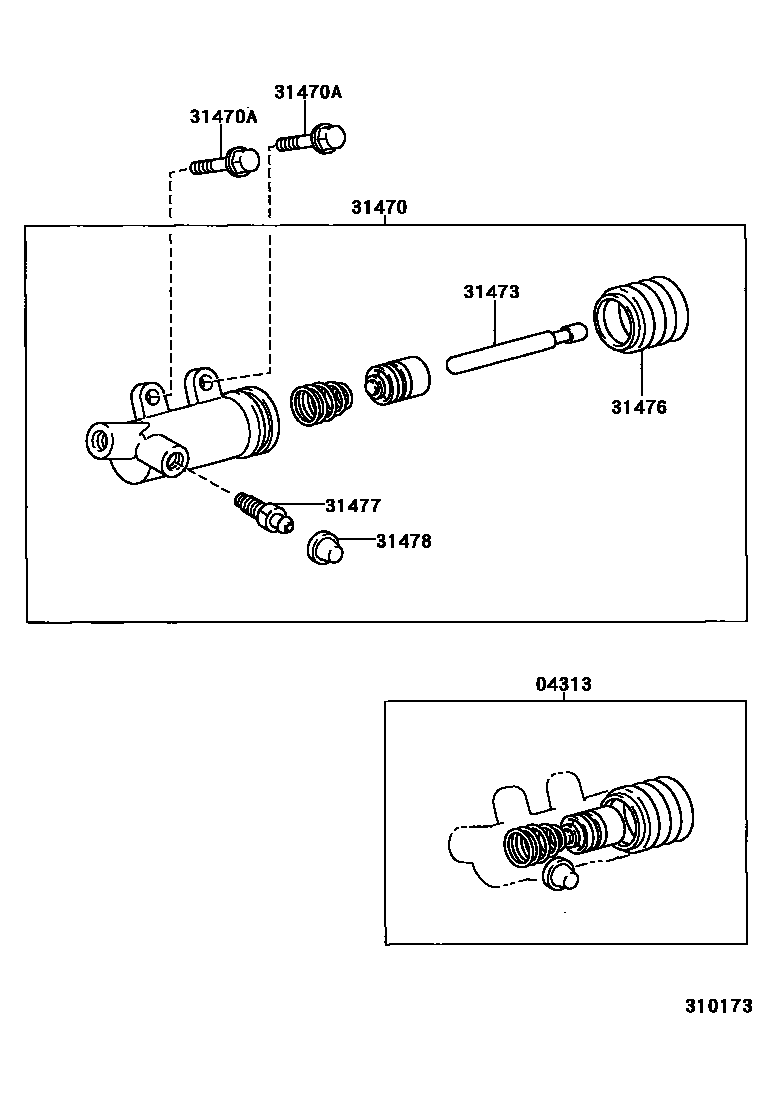

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRCH42199706-199907

main04313-22030iLXH4#..MTM199706-200205

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26061iLXH4#..MTM199706-200205

main31470-26100iRCH42199706-199907

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iLXH4#,RCH42..MTM199706

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iLXH4#..MTM199706-200205

main31473-32010iRCH42199706-199907

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLXH4#,RCH42..MTM199706-200205

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLXH4#,RCH42..MTM199706-200205

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLXH4#,RCH42..MTM199706-200205

7 parts on this diagram · 2 diagrams in section
