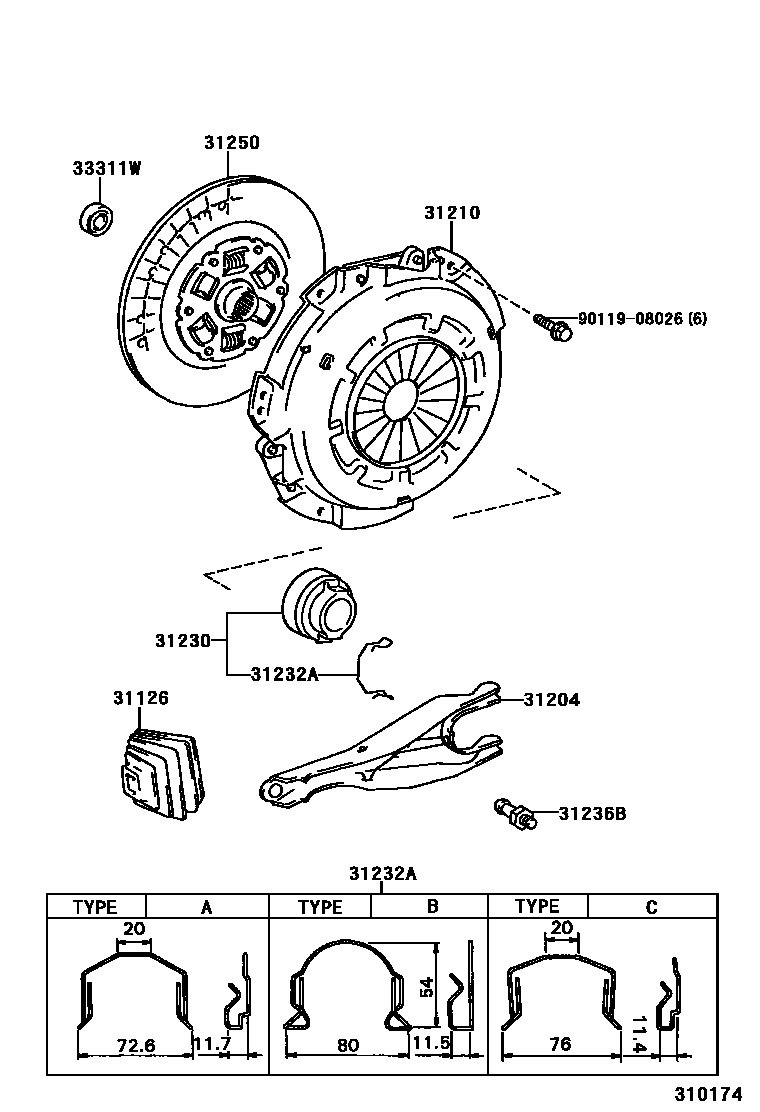

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLXH4#..MTM199706-200205

main31126-26020iRCH42199706-199907

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iLXH4#,RCH42..MTM199706-200205

31210COVER ASSY, CLUTCH

main31210-26110iRCH42199706-199907

sub31210-26120

main31210-35121iLXH4#..MTM199706-200102

sub31210-35122

main31210-35122iLXH4#..MTM200102

sub31210-26160

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLXH4#..MTM199706-200205

sub31230-35061

main31230-35090iRCH42199706-199907

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLXH4#,RCH42..MTM199706-200205

main31232-35030iLXH4#..MTM199706-200205

main31232-35040iRCH42199706-199907

31236BSUPPORT, RELEASE FORK

main31236-26010iLXH4#..MTM200110-200205

main31236-30060iLXH4#,RCH42..MTM199706-200110

31250DISC ASSY, CLUTCH

main31250-26160iRCH42199706-199708

sub31250-35380

main31250-26191iLXH4#..MTM199706-200012

sub31250-26192

main31250-26192iLXH4#..MTM200012-200109

sub31250-26182

main31250-26193iLXH4#..MTM200109-200202

sub31250-26192

main31250-35380iRCH42199708-199901

sub31250-35381

main31250-35381iRCH42199901-199907

sub31250-35382

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLXH4#,RCH42..MTM199706

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
