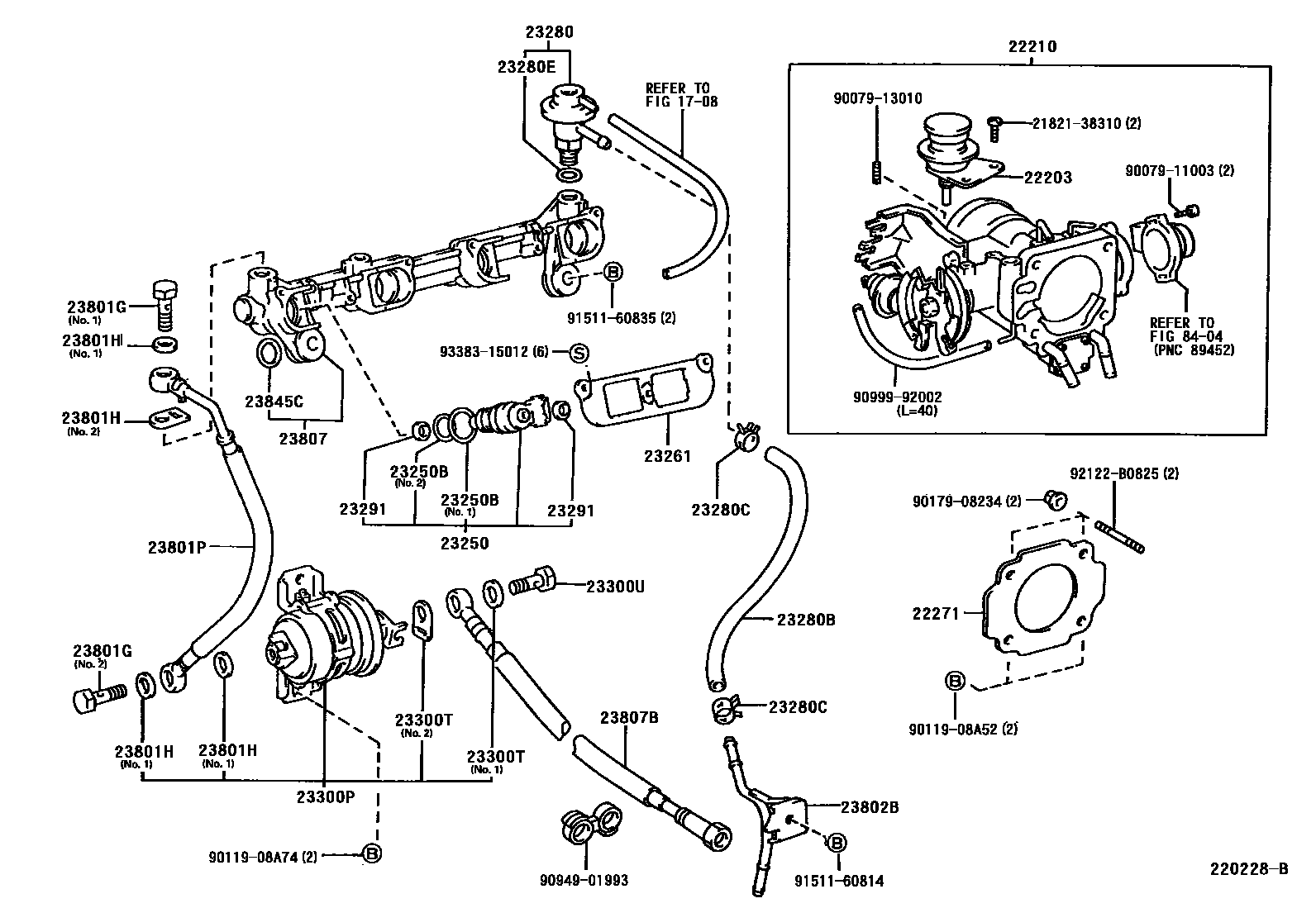

FUEL INJECTION SYSTEM
1708
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23261COVER, INJECTOR
23280REGULATOR ASSY, FUEL PRESSURE
23280BHOSE, FUEL PRESSURE REGULATOR RETURN
sub95337-06020
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807BHOSE, FUEL DELIVERY PIPE
23845CINSULATOR, FUEL PIPE
8404
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9007911003
main90079-11003
9007913010
main90079-13010
9011908A52
main90119-08A52
9011908A74
main90119-08A74
9017908234
main90179-08234
9094901993
main90949-01993
9099992002
main90999-92002
9151160814
main91511-60814
9151160835
main91511-60835
92122B0825
main92122-B0825
9338315012
main93383-15012
35 parts on this diagram · 4 diagrams in section
