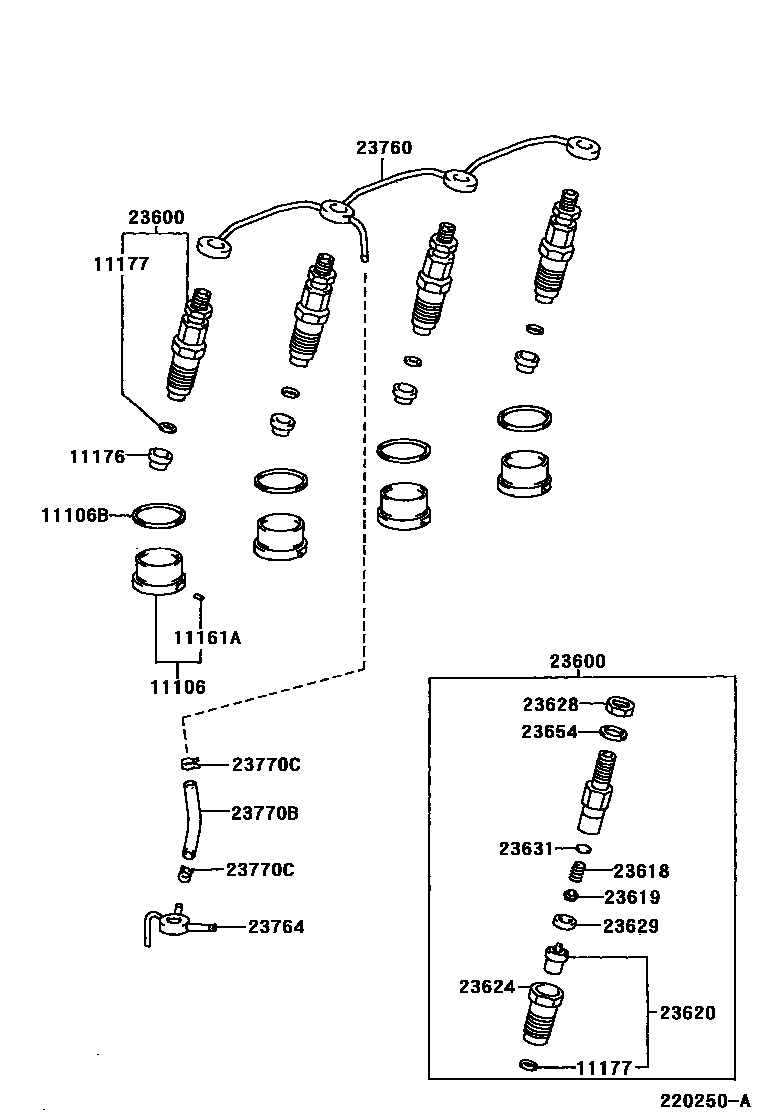

INJECTION NOZZLE

0001 1 0002 1

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-54060i5L..LXH4#199706-199810

sub11106-54170

main11106-54170i5L..LXH4#199810-199909

main11106-54171i5L..LXH4#199909

sub11106-54170

main11106-67020i1KZTE..KCH4#199704-199907

main11106-67051i1KZTE..KCH4#199907-199909

main11106-67052i1KZTE..KCH4#199909

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i5L..LXH4#199706

main11165-67020i1KZTE..KCH4#199704-199909

main11165-67030i1KZTE..KCH4#199909

main11166-67020i1KZTE..KCH4#199704-199909

main11166-67030i1KZTE..KCH4#199909

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1KZTE..KCH4#199704

11176SEAT, INJECTION NOZZLE

main11176-64010i5L..LXH4#199706

main11176-67010i1KZTE..KCH4#199704-199909

main11176-67011i1KZTE..KCH4#199909

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i5L..LXH4#199706

main11177-64010i1KZTE..KCH4#199704

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59265i5L..LXH4#199706-199901

sub23600-59266

main23600-59266i5L..LXH4#199901

main23600-59315i5L..LXH4#199901

main23600-69105i1KZTE..KCH4#199704-199907

main23600-69165i1KZTE..KCH4#199907

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54730i1KZTE..KCH4#199704-199907

main23618-64080i1KZTE..KCH4#199907

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1KZTE..KCH4#199704

23620NOZZLE ASSY

main23620-59115i5L..LXH4#199706

main23620-69075i1KZTE..KCH4#199704-199907

main23620-69105i1KZTE..KCH4#199907

23624NUT, NOZZLE RETAINING

main23624-64040i5L..LXH4#199901

sub23624-64041

main23624-64041i5L..LXH4#199704-199907

23628NUT(FOR RING PACKING SETTING)

main23628-64010i1KZTE..KCH4#199704

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i1KZTE..KCH4#199704

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i1KZTE..KCH4#199704

main23631-64012i5L..LXH4#199704

main23631-64014i1KZTE..KCH4#199704

main23631-64016i1KZTE..KCH4#199704

main23631-64018i1KZTE..KCH4#199704

main23632-64010i5L..LXH4#199704

main23632-64012i1KZTE..KCH4#199704

main23632-64014i5L..LXH4#199704

main23632-64016i1KZTE..KCH4#199704

main23632-64018i1KZTE..KCH4#199704

main23633-64010i1KZTE..KCH4#199704

main23633-64012i1KZTE..KCH4#199704

main23633-64014i1KZTE..KCH4#199704

main23633-64016i5L..LXH4#199704

main23633-64018i5L..LXH4#199704

main23634-64010i5L..LXH4#199704

main23634-64012i1KZTE..KCH4#199704

main23634-64014i5L..LXH4#199704

main23634-64016i1KZTE..KCH4#199704

main23634-64018i1KZTE..KCH4#199704

main23635-64010i1KZTE..KCH4#199704

main23635-64012i1KZTE..KCH4#199704

23654WASHER(FOR RING PACKING)

main23654-64010i1KZTE..KCH4#199704

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-54030i5L..LXH4#199706

main23760-67020i1KZTE..KCH4#199704-199907

main23760-67030i1KZTE..KCH4#199907

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-54120i5L..LXH4#199706

main23764-67010i1KZTE..KCH4#199704

23770BHOSE, FUEL

main95333-04020i5L..LXH4#199706

main95333-04020i1KZTE..KCH4#199907

main95333-04020i1KZTE..KCH4#199704-199907

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i1KZTE..KCH4#199704

sub90467-10149

main96132-51000i5L..LXH4#200204

main96133-41000i5L..LXH4#199706-200204

sub96132-51000

18 parts on this diagram · 2 diagrams in section
