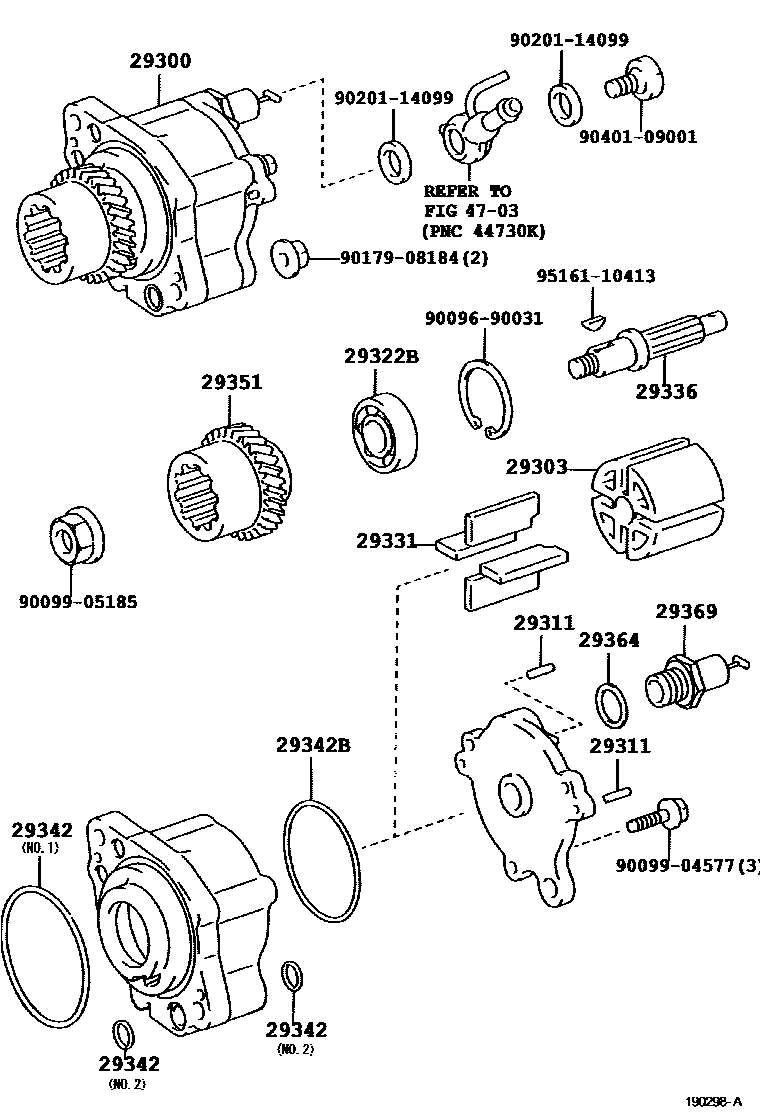

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-54150i5L..LXH4#..MTM199706-199805

main29300-54170i5L..LXH4#..ATM199706-199805

sub29300-54150

main29300-67020i1KZTE..KCH4#199704

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KZTE..KCH4#199704

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1KZTE..KCH4#199704

29322BBEARING, VACUUM PUMP

main90099-10166i5L..LXH4#199706-199907

main90099-10185i1KZTE..KCH4#199704

main90099-10199i5L..LXH4#199907

29331BLADE, VACUUM PUMP, A

main29331-54130i5L..LXH4#199706

main29331-67020i1KZTE..KCH4#199704

29336SHAFT, VACUUM PUMP

main29336-58050i1KZTE..KCH4#199704

main29336-64031i5L..LXH4#199706

29342PACKING, VACUUM PUMP

main29342-67020i1KZTE..KCH4#199704

main29342-68010i1KZTE..KCH4#199704

29342BRING, O

main29342-58010i1KZTE..KCH4#199704

main29342-64030i5L..LXH4#199706

29351GEAR, VACUUM PUMP

main29351-67020i1KZTE..KCH4#199704

29364WASHER, VACUUM PUMP

main29364-66010i1KZTE,5L..KCH4#,LXH4#199704

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KZTE,5L..KCH4#,LXH4#199704

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184

9020114099

main90201-14099

9040109001

main90401-09001

9516110413

main95161-10413

19 parts on this diagram · 2 diagrams in section
