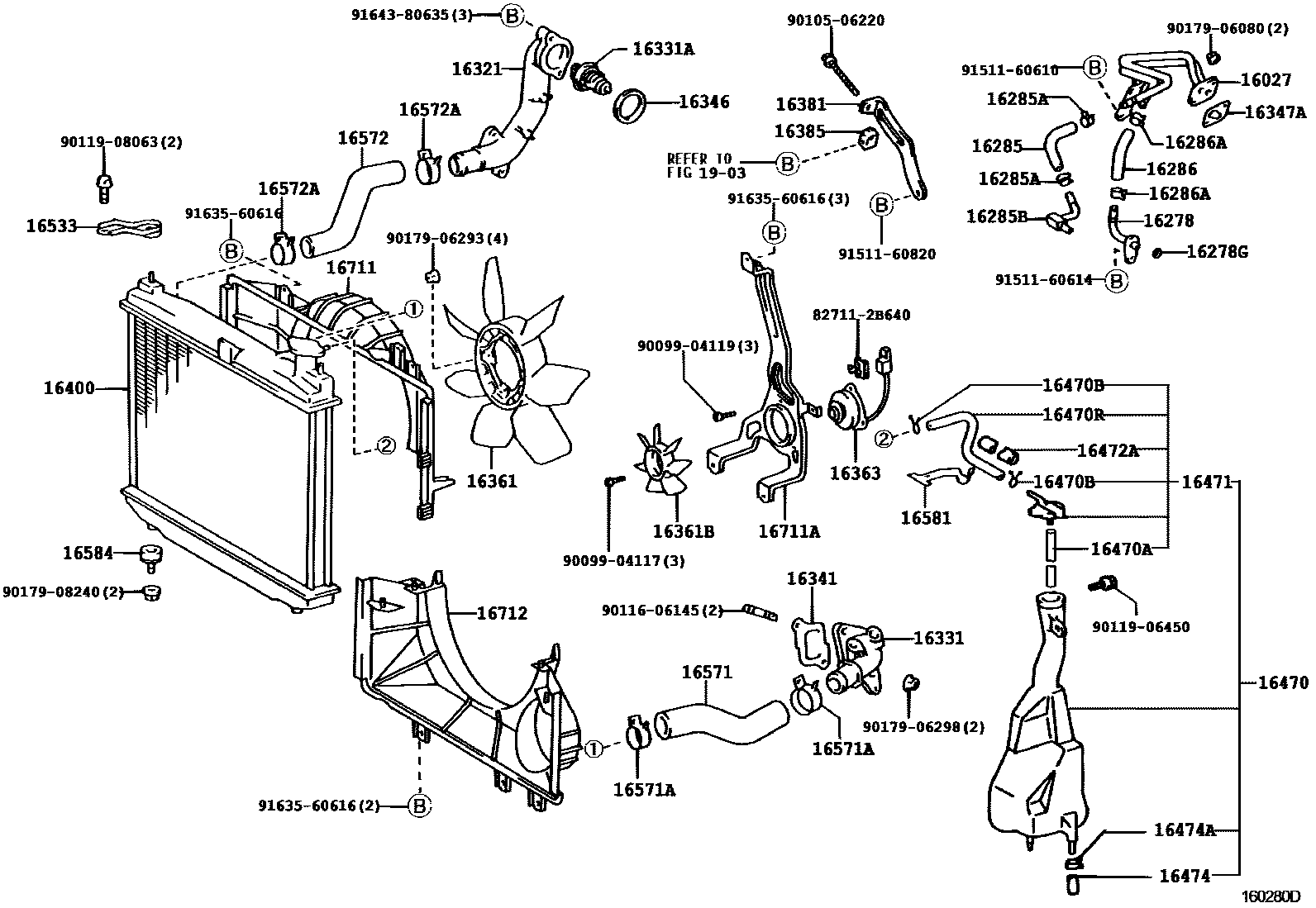

RADIATOR & WATER OUTLET
16027PIPE SUB-ASSY, TURBO WATER, NO.1
16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)
16285HOSE, TURBO WATER, NO.2
16285ACLIP(FOR TURBO WATER HOSE NO.2)
16285BUNION(FOR TURBO WATER HOSE NO.2)
16286HOSE, TURBO WATER, NO.3
16286ACLIP(FOR TURBO WATER HOSE NO.3)
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
sub16346-30010
16347AGASKET(FOR TURBO WATER PIPE)
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472APROTECTOR, HOSE
16474CAP(FOR RADIATOR RESERVE TANK DRAIN)
16474ACLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP)
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-41002
sub90467-41002
sub90467-37003
sub90467-37005
sub90467-37005
sub90467-37005
16581CLAMP, HOSE(FOR WATER HOSE)
16584INSULATOR, RADIATOR MOUNTING
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
1903
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
9009904117
main90099-04117
9009904119
main90099-04119
9010506220
main90105-06220
9011606145
main90116-06145
9011906450
main90119-06450
9011908063
main90119-08063
9017906080
main90179-06080
9017906293
main90179-06293
9017906298
main90179-06298
9017908240
main90179-08240
9151160610
main91511-60610
9151160614
main91511-60614
9151160820
main91511-60820
9163560616
main91635-60616
9164380635
main91643-80635
55 parts on this diagram · 15 diagrams in section
