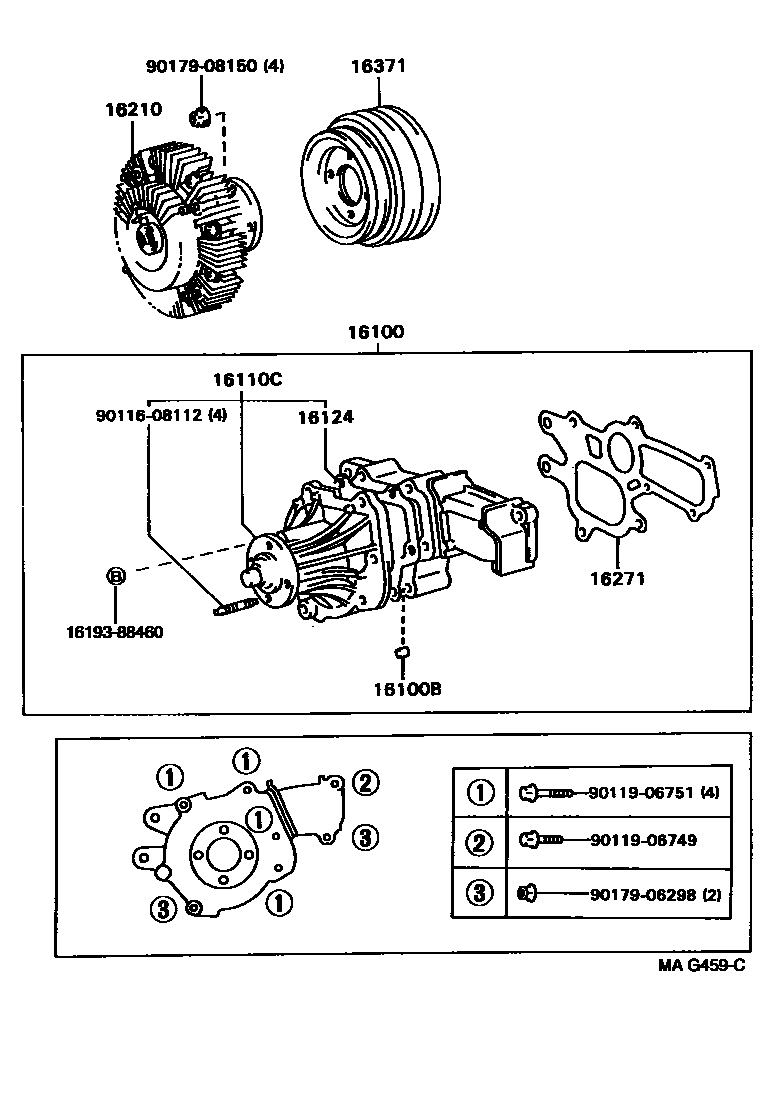

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-59255i5L..LXH4#199706-200008

sub16100-59256

main16100-59257i5L..LXH4#200008

main16100-69355i1KZTE..KCH4#199704-200005

sub16100-69356

main16100-69356i1KZTE..KCH4#200005

sub16100-69357

main16100-79255i3RZFE..RCH41,47199704-200204

sub16100-79445

main16100-79265i1RZE..RCH42199706-200205

sub16100-79455

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1KZTE..KCH4#199704

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i1KZTE..KCH4#199704

16124GASKET, WATER PUMP COVER

main16124-67010i1KZTE..KCH4#199704

main16124-75030i1RZE,3RZFE..RCH4#199704-200205

16210COUPLING ASSY, FLUID

main16210-54220i5L..LXH4#199706

main16210-67020i1KZTE..KCH4#199704

sub16210-67010

main16210-75050i1RZE..RCH42199706-200205

main16210-75060i3RZFE..RCH41,47199704-200204

16271GASKET, WATER PUMP

main16271-54020i5L..LXH4#199706-200008

sub16271-54030

main16271-54030i5L..LXH4#200008

main16271-67020i1KZTE..KCH4#199704

16371PULLEY, FAN

main16371-54030i5L..LXH4#199706

main16371-67020i1KZTE..KCH4#199704

main16371-75010i1RZE..RCH42199706-200202

sub16371-75020

main16371-75020i1RZE..RCH42200202-200205

main16371-75030i3RZFE..RCH41,47199704-200204

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908150

main90179-08150

13 parts on this diagram · 4 diagrams in section
