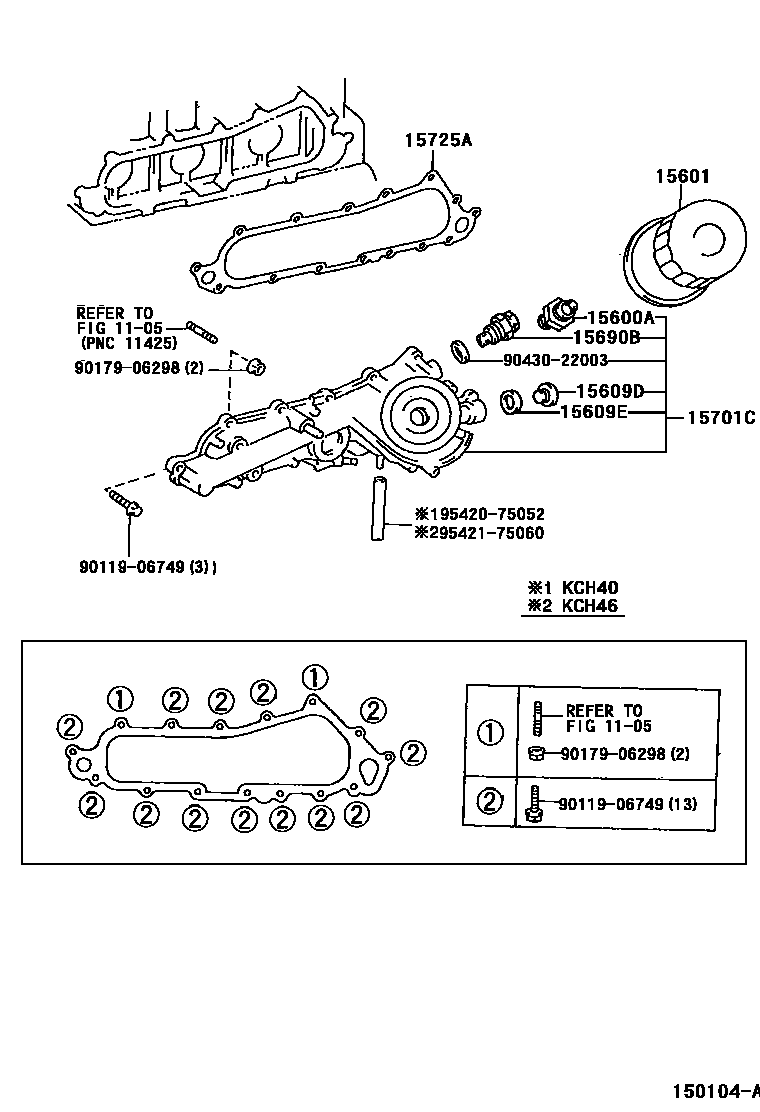

OIL FILTER

0001 1 0002 1 0003 1 0004 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i1KZTE..KCH4#199704

main90404-19017i3RZFE..RCH41,47199704-200204

15601FILTER SUB-ASSY, OIL

main90915-20001i1RZE,3RZFE..RCH4#199704-199908

sub90915-20003

main90915-20003i1RZE,3RZFE..RCH4#199908-200205

sub90915-20005

main90915-30002i1KZTE..KCH4#199704

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54082i5L..LXH4#199706

main15609-75010i1RZE..RCH42199706-200205

sub15609-75050

sub90404-19015

main15609-75030i3RZFE..RCH41,47199704-200204

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZTE..KCH4#199704

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZTE..KCH4#199704

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZTE..KCH4#199704

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-67030i1KZTE..KCH4#199704-199907

sub15701-67031

sub95420-06052

sub95421-06060

main15701-67040i1KZTE..KCH4#199907

sub15701-67041

sub95420-06052

15725AGASKET, OIL COOLER COVER

main15725-67010i1KZTE..KCH4#199704

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9542075052

main95420-75052

9542175060

main95421-75060

14 parts on this diagram · 4 diagrams in section
