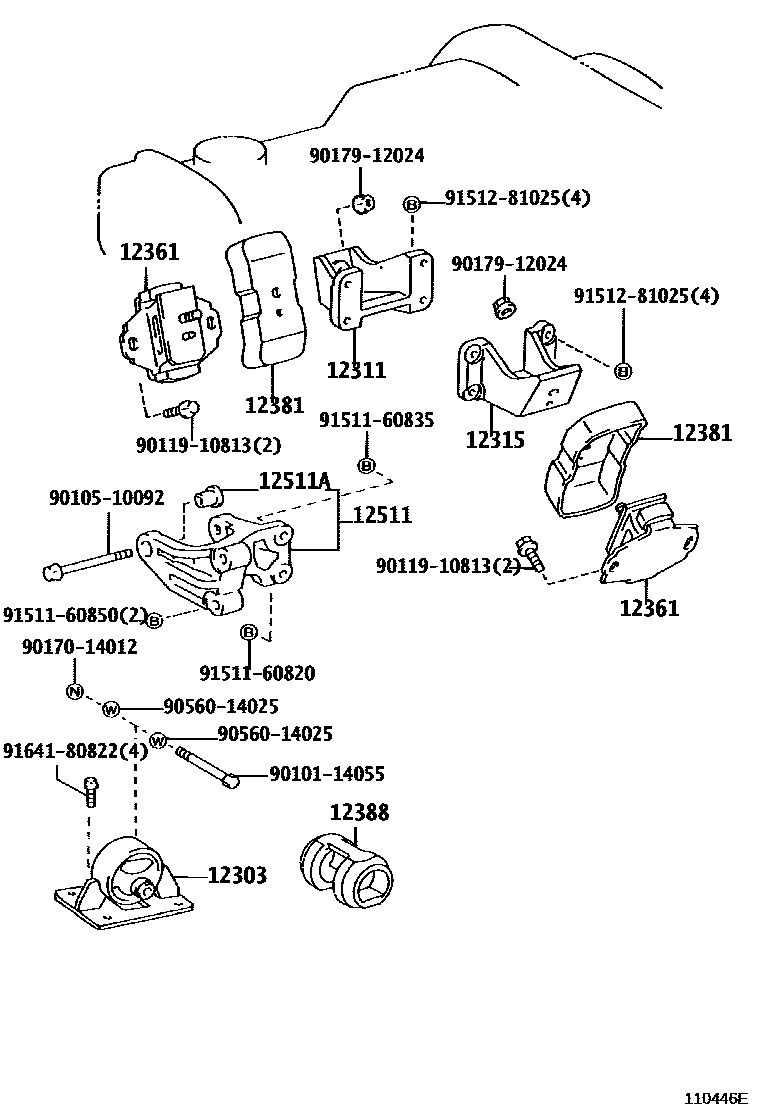

MOUNTING

0001 1 0002 1 0003 1 0004 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-54050i5L..LXH43..MTM199706-199907

main12303-54060i1KZTE..KCH40199704

main12303-54071i5L..LXH49199704

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54240i5L..LXH4#199706

main12311-67060i1KZTE..KCH4#199704

main12311-75070i3RZFE..RCH41,47199704-200205

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30050i1KZTE..KCH4#200107

main12315-54030i5L..LXH4#199706

main12315-67020i1KZTE..KCH4#199704-200107

sub12315-30050

main12315-75060i1RZE,3RZFE..RCH4#199704-200204

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38130i1RZE,3RZFE..RCH4#199704

main12361-54220i5L..LXH4#199706

main12361-67020i1KZTE..KCH4#199704

main12361-75040i1RZE,3RZFE..RCH4#199704

12381STABILIZER, ENGINE MOUNTING

main12381-54081i5L..LXH4#199706

main12381-67020i1KZTE..KCH4#199704

main12381-75030i1RZE,3RZFE..RCH4#199704

main12381-75050i1RZE,3RZFE..RCH4#199704

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-54010i5L..LXH43..MTM199706-199907

sub12388-54011

main12388-54020i1RZE,3RZFE..RCH41,42..ATM199704

main12388-54030i1KZTE..KCH46199704

sub12388-54031

12511BRACKET, ALTERNATOR, NO.1

main12511-54031i5L..LXH4#199706

main12511-67020i1KZTE..KCH4#199704

main12511-75040i3RZFE..RCH4#199704-199705

sub12511-75041

main12511-75041i1RZE..RCH42199705-200205

12511ABUSH, ALTERNATOR BRACKET

main90389-10039i1KZTE..KCH4#199704

9010114055

main90101-14055

9010510092

main90105-10092

9011910813

main90119-10813

9017014012

main90170-14012

9017912024

main90179-12024

9056014025

main90560-14025

9151160820

main91511-60820

9151160835

main91511-60835

9151160850

main91511-60850

9151281025

main91512-81025

9164180822

main91641-80822

19 parts on this diagram · 4 diagrams in section
