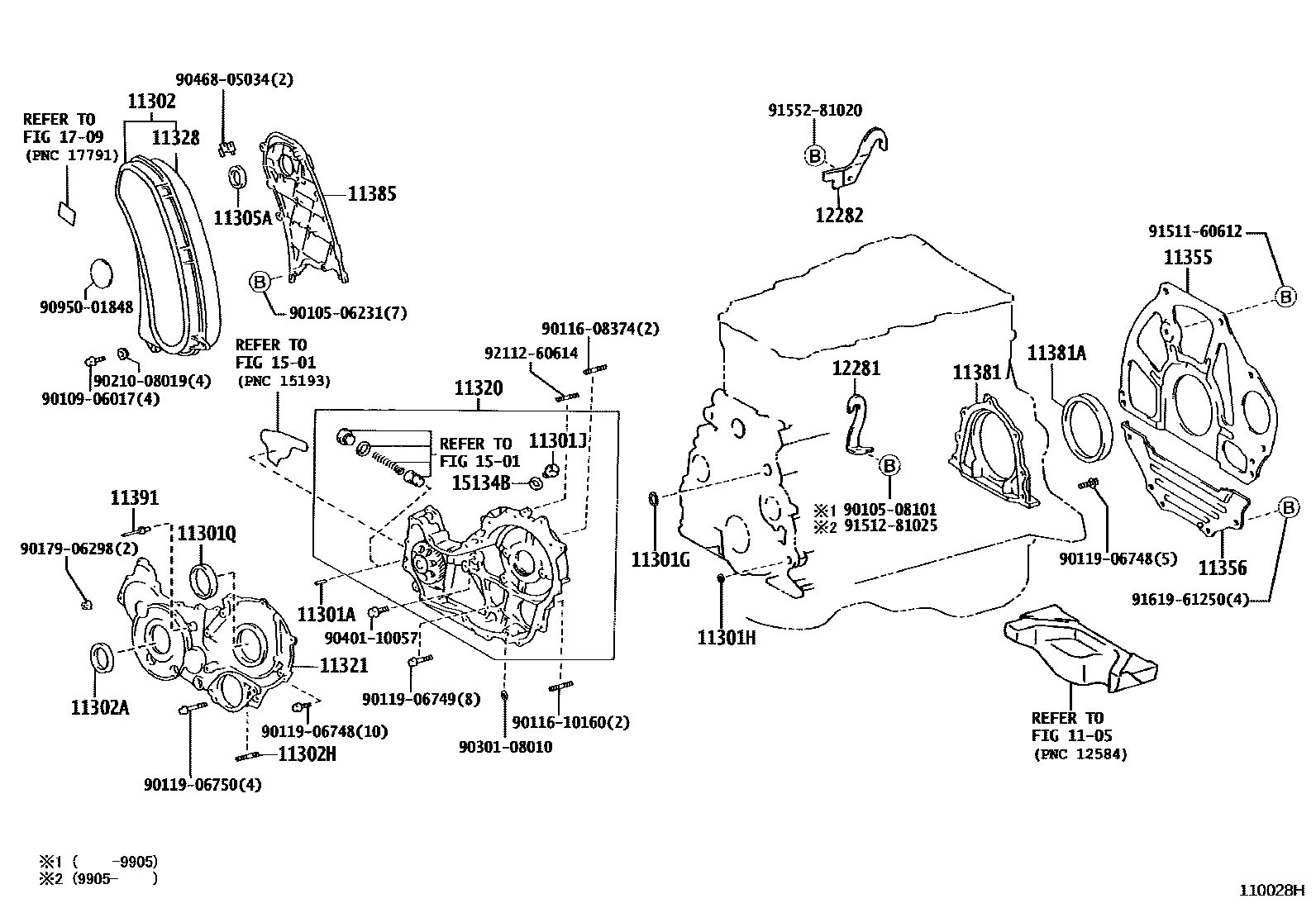

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11301CASE SUB-ASSY, TIMING GEAR

main11301-75021i3RZFE..RCH41,47199704-200204

main11301-75050i1RZE..RCH42199706-200205

main11311-54052i5L..LXH4#199706

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08120i1KZTE..KCH4#199704

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1KZTE..KCH4#199704

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KZTE..KCH4#199704

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KZTE..KCH4#199704

11301QSEAL, TYPE T OIL(FOR INJECTION PUMP)

main90311-58006i1KZTE..KCH4#199704

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-67020i1KZTE..KCH4#199704

main11321-54020i5L..LXH4#199706

sub11321-54021

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-50017i1KZTE..KCH4#199704

sub90311-50051

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i1KZTE..KCH4#199704

sub90116-08377

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32017i1KZTE..KCH4#199704-199812

sub90311-32020

main90311-32019i5L..LXH4#199706

11320CASE ASSY, TIMING GEAR

main11320-67010i1KZTE..KCH4#199704

11321CASE, TIMING GEAR

main11321-67031i1KZTE..KCH4#199704-200006

sub11321-67032

main11321-67032i1KZTE..KCH4#200006

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i5L..LXH4#199706

main11328-67020i1KZTE..KCH4#199704

main11328-75010i1RZE..RCH42199706-200205

main11328-75020i3RZFE..RCH41,47199704-199904

sub11328-75021

main11328-75021i3RZFE..RCH41,47199904-200204

11355PLATE, REAR END

main11355-54030i5L..LXH43..MTM199706

main11355-54090i5L..LXH43..ATM199706

main11355-54130i5L..LXH49..MTM199706

main11355-54150i5L..LXH49..ATM199706

main11355-67010i1KZTE..KCH4#199704

main11355-75010i1RZE..RCH42199704-200205

11356PLATE, REAR END, NO.2

main11356-67020i1KZTE..KCH4#199704-200205

sub11356-67021

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i5L..LXH4#199706-199909

sub11381-54030

sub90116-08404

main11381-54030i5L..LXH4#199909

main11381-67020i1KZTE..KCH4#199704

main11381-75010i1RZE,3RZFE..RCH4#199704-200205

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-85008i5L..LXH4#199706

main90311-88003i1RZE,3RZFE..RCH4#199704-200009

main90311-88004i1RZE..RCH42200009-200205

sub90311-88005

main90311-88005i1RZE,3RZFE..RCH4#200009-200205

sub90311-88006

main90311-95008i1KZTE..KCH4#199704

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i5L..LXH4#199706

main11382-67010i1KZTE..KCH4#199704

11391POINTER, TIMING

main11391-54020i5L..LXH4#199706

main11391-67010i1KZTE..KCH4#199704

12281HANGER, ENGINE, NO.1

main12281-67040i1KZTE..KCH4#199704-199905

main12281-67070i1KZTE..KCH4#199905

12282HANGER, ENGINE, NO.2

main12282-54060i5L..LXH4#199706

main12282-67030i1KZTE..KCH4#199704

main12282-75020i3RZFE..RCH41,47199704-200204

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZTE..KCH4#199704

1709

9010506231

main90105-06231

9010508101

main90105-08101

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

9151160612

main91511-60612

9151281025

main91512-81025

9155281020

main91552-81020

9161961250

main91619-61250

9211260614

main92112-60614

44 parts on this diagram · 4 diagrams in section
