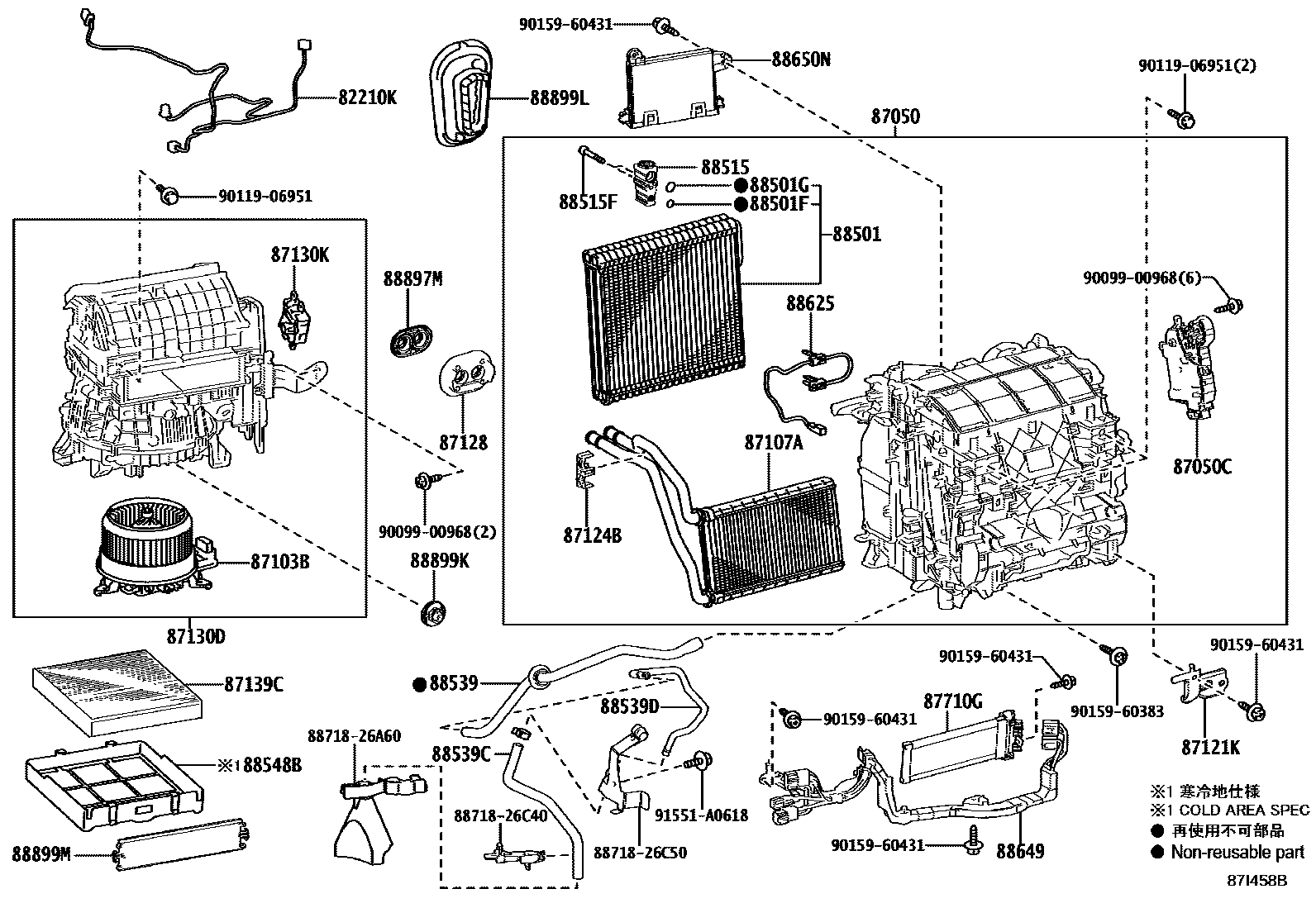

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT AUTO AIR CONDITIONER 0002 1REAR AUTO AIR CONDITIONER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-26050supersedes 82212-26030iGDH303201912

87050RADIATOR ASSY, AIR CONDITIONER

main87050-26660supersedes 87050-26650iGDH303201912

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-47180iGDH303201912

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58070supersedes 87103-58060iGDH303201912

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-26330iGDH303201912

87121KBRACKET, HEATER

main87121-26210iGDH303201912

87124BCLAMP, HEATER

main87124-33070iGDH303201912

87128GROMMET, HEATER

main87128-28020iGDH303201912

87130DBLOWER ASSY

main87130-26360supersedes 87130-26310iGDH303201912

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250supersedes 87106-28240iGDH303201912

87139CFILTER, CLEAN AIR

87710GQUICK HEATER ASSY

main87710-26090supersedes 87710-48020iGDH303201912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12570iGDH303202106

main88501-26370iGDH303201912-202105

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iGDH303201912-202106

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iGDH303201912-202106

88515VALVE, COOLER EXPANSION

main88515-26120iGDH303201912

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iGDH303201912

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-26680iGDH303201912

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-26820iGDH303201912

88539DPIPE, COOLER UNIT DRAIN

main88899-26190iGDH303201912

88548BCASE, AIR FILTER

main88899-48070iGDH303201912

88625THERMISTOR, COOLER, NO.1

main88620-28060iGDH303201912

88649WIRING, COOLER, NO.2

main88649-26040iGDH303201912

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-26820iGDH303201912-202506

88897MGROMMET (FOR HEATER PIPE)

main87128-28010iGDH303201912

88899KPLATE, COVER

main88899-52160iGDH303201912

88899LPARTS, COOLING UNIT

main88899-58040iGDH303201912

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iGDH303201912

8871826A60PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26A60

8871826C40PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26C40

8871826C50PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26C50

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

91551A0618

main91551-A0618

36 parts on this diagram · 2 diagrams in section
