ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-26480iGDH303201912-202107

main86101-V3060iGDH303202107-202310

main86101-V3130iGDH303202310

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-26580iGDH303..PREM201912

main86101-26630iGDH303..G201912

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-26510iGDH303201912-202505

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-26530iGDH303201912

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-26550iGDH303201912

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-26240iGDH303201912

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86760-26010-A1iGDH303201912-202506

WHITE PEARL CS.,070 ,2QD

main86760-26010-B2iGDH303201912-202506

SILVER ME.,1F7

main86760-26010-B3iGDH303201912-202506

GRAY ME.,1G3

main86760-26010-C1iGDH303201912

BLACK,202

86300KANTENNA ASSY, AMPLIFIER, NO.3

main86300-26230iGDH303201912

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-26030iGDH303201912

86396NUT, ANTENNA

main86396-47010iGDH303201912

86681CDIVIDER, ANTENNA

main86681-26050iGDH303201912-202107

9011906A06

main90119-06A06

9015950327

main90159-50327

9017906274

main90179-06274

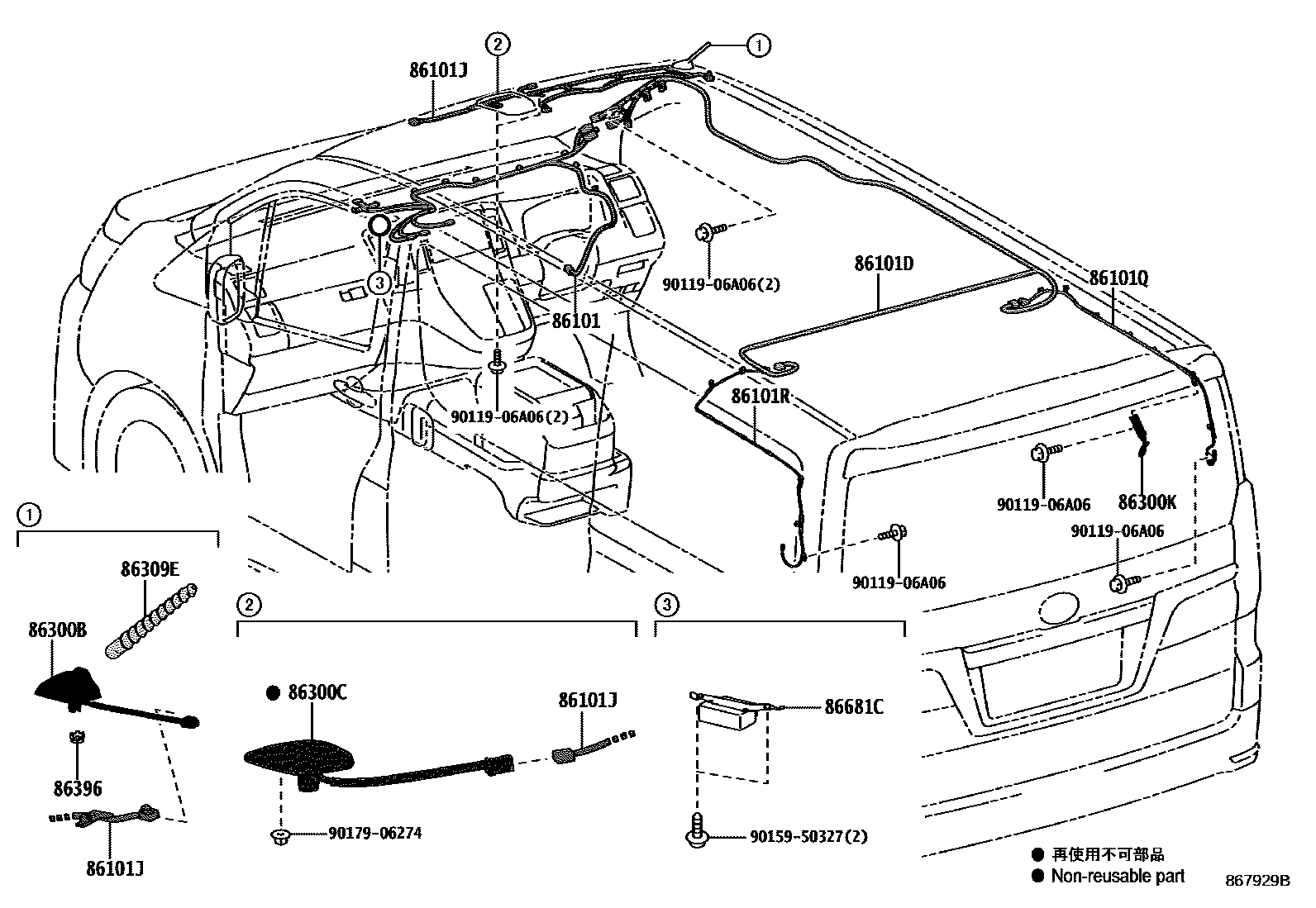

14 parts on this diagram · 1 diagram in section
