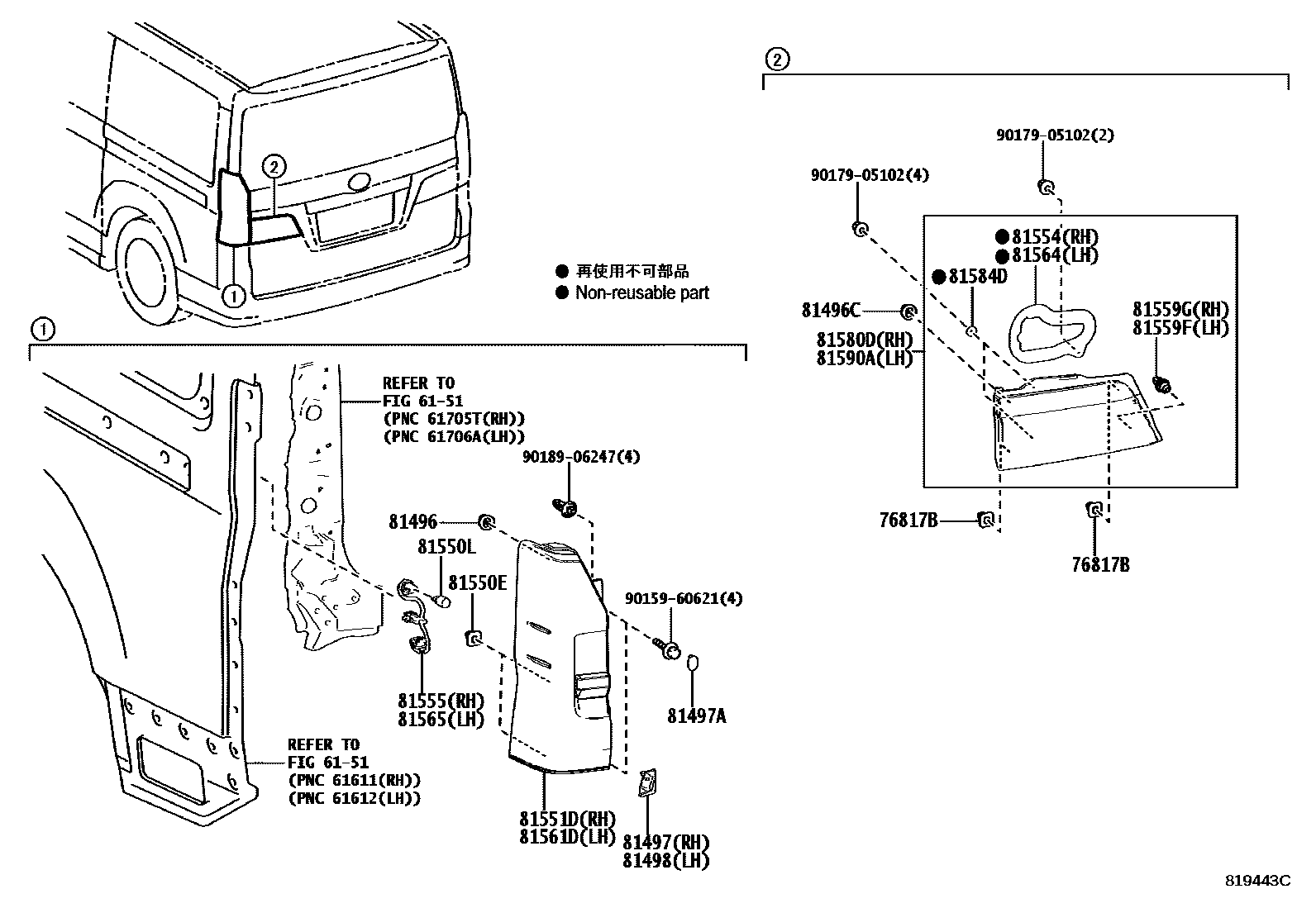

REAR COMBINATION LAMP

6151

76817BCLIP, REAR LAMP

main76817-26040iGDH303201912-202506

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGDH303201912-202506

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iGDH303201912-202506

81497COVER, REAR COMBINATION LAMP, RH

main81497-26030iGDH303201912-202506

81497ACOVER, REAR COMBINATION LAMP, UPPER RH

main81497-26040iGDH303201912-202506

81498COVER, REAR COMBINATION LAMP, LH

main81498-26030iGDH303201912-202506

81550ECLIP(FOR REAR COMBINATION LAMP)

main76817-26040iGDH303201912-202506

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iGDH303201912-202506

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-26510iGDH303201912-202506

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81582-26090iGDH303201912-202506

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-26510iGDH303201912-202506

81559FCLIP, RR COMBINATION LAMP, LH

main90467-09206iGDH303201912-202506

81559GCLIP, RR COMBINATION LAMP, RH

main90467-09206iGDH303201912-202506

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-26510iGDH303201912-202506

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81592-26080iGDH303201912-202506

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-26510iGDH303201912-202506

81580DLAMP ASSY, REAR, RH

main81580-26090iGDH303201912-202506

main81580-26110iGDH303201912-202107

main81580-26110iGDH303202107-202506

81584DGASKET, REAR LAMP

main81584-24050iGDH303201912-202506

81590ALAMP ASSY, REAR, LH

main81590-26080iGDH303201912-202506

main81590-26100iGDH303201912-202107

main81590-26100iGDH303202107-202506

9015960621

main90159-60621

9017905102

main90179-05102

9018906247

main90189-06247

23 parts on this diagram · 1 diagram in section
