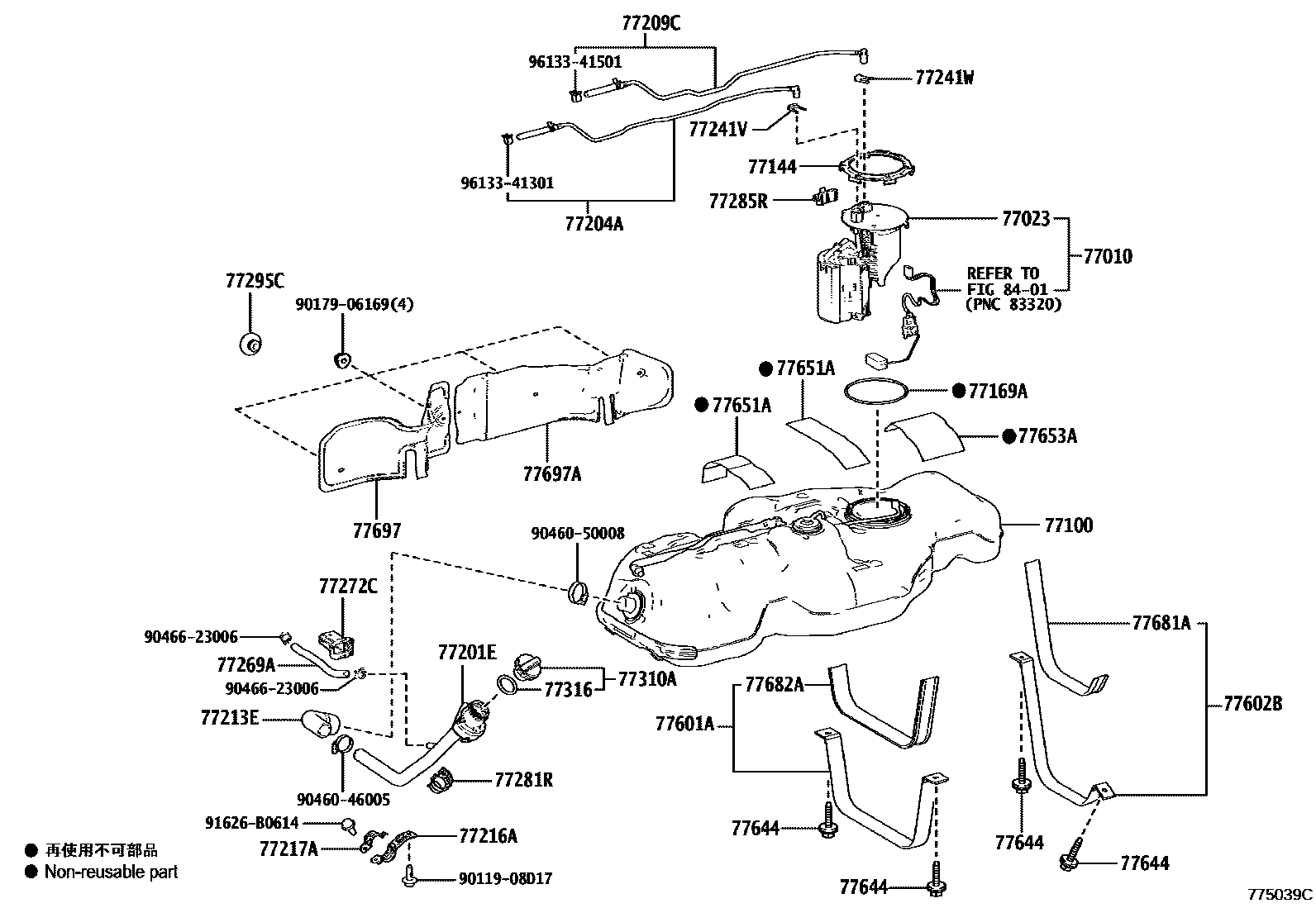

FUEL TANK & TUBE
77010TUBE ASSY, FUEL TANK VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77204ATUBE, FUEL TANK RETURN
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77269AHOSE, FUEL TANK BREATHER
77272CSUPPORT, BREATHER TUBE, NO.3
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285RCLAMP, FUEL TUBE, NO.1
77295CGROMMET, FUEL TUBE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77697INSULATOR, FUEL TANK HEAT, NO.1
77697AINSULATOR, FUEL TANK HEAT, NO.2
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9017906169
main90179-06169
9046046005
main90460-46005
9046050008
main90460-50008
9046623006
main90466-23006
91626B0614
main91626-B0614
9613341301
main96133-41301
9613341501
main96133-41501
38 parts on this diagram · 3 diagrams in section
