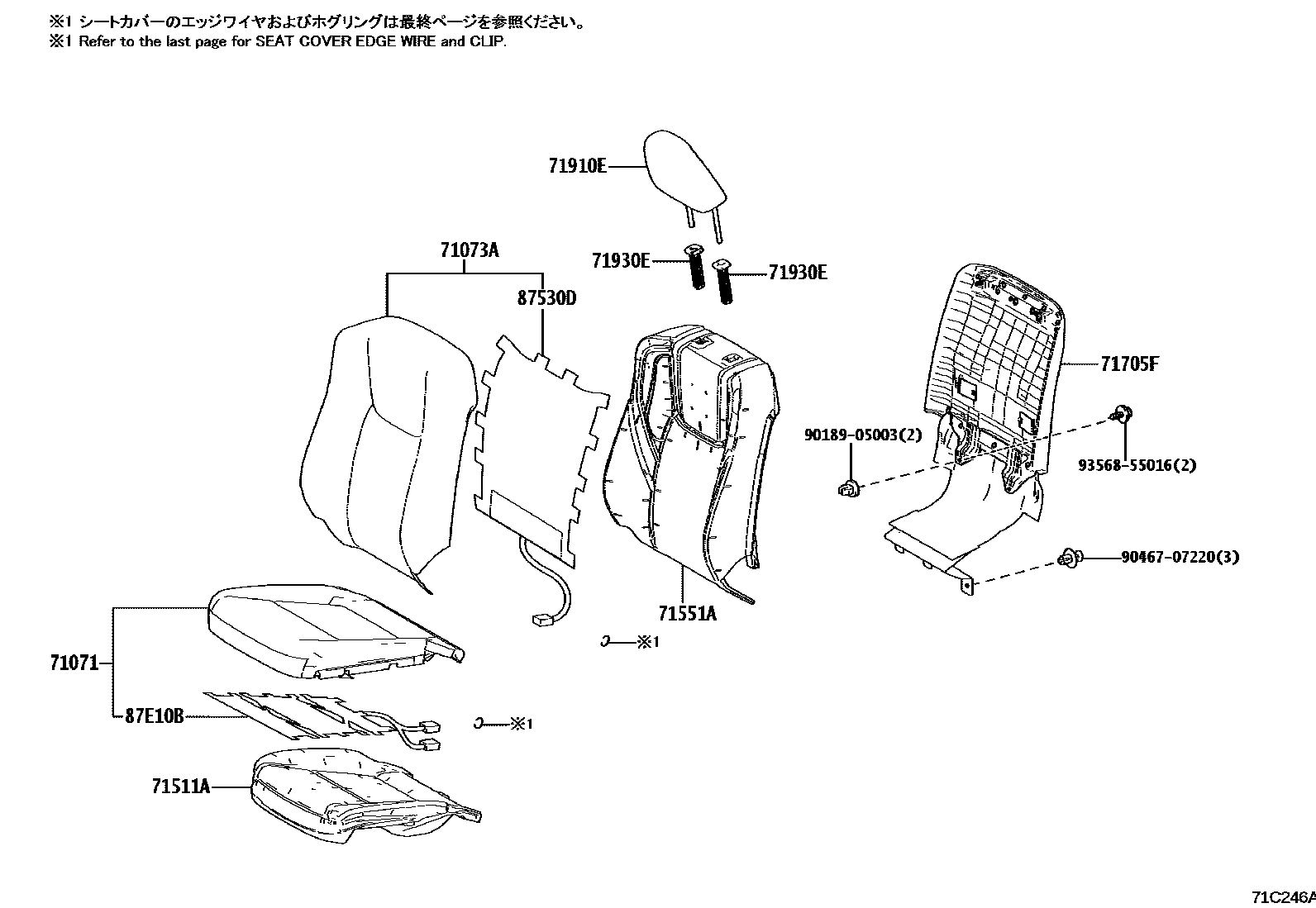

FRONT SEAT & SEAT TRACK
71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH
BLACK,TRIM21
NEUTRAL BEIGE,TRIM22
71073ACOVER SUB-ASSY, FRONT SEATBACK, RH
BLACK,TRIM21
BLACK,TRIM21
NEUTRAL BEIGE,TRIM22
NEUTRAL BEIGE,TRIM22
71511APAD, FRONT SEAT CUSHION, RH
71551APAD, FRONT SEATBACK, RH
71705FBOARD SUB-ASSY, FRONT SEATBACK, RH
BLACK,TRIM2#
71910EHEADREST ASSY, FRONT SEAT, RH
BLACK,TRIM21
NEUTRAL BEIGE,TRIM22
71930ESUPPORT ASSY, FRONT SEAT HEADREST, RH
87530DHEATER ASSY, FRONT SEATBACK, RH
87E10BHEATER ASSY, FRONT SEAT CUSHION, RH
9018905003
main90189-05003
9046707220
main90467-07220
9356855016
main93568-55016
12 parts on this diagram · 5 diagrams in section
