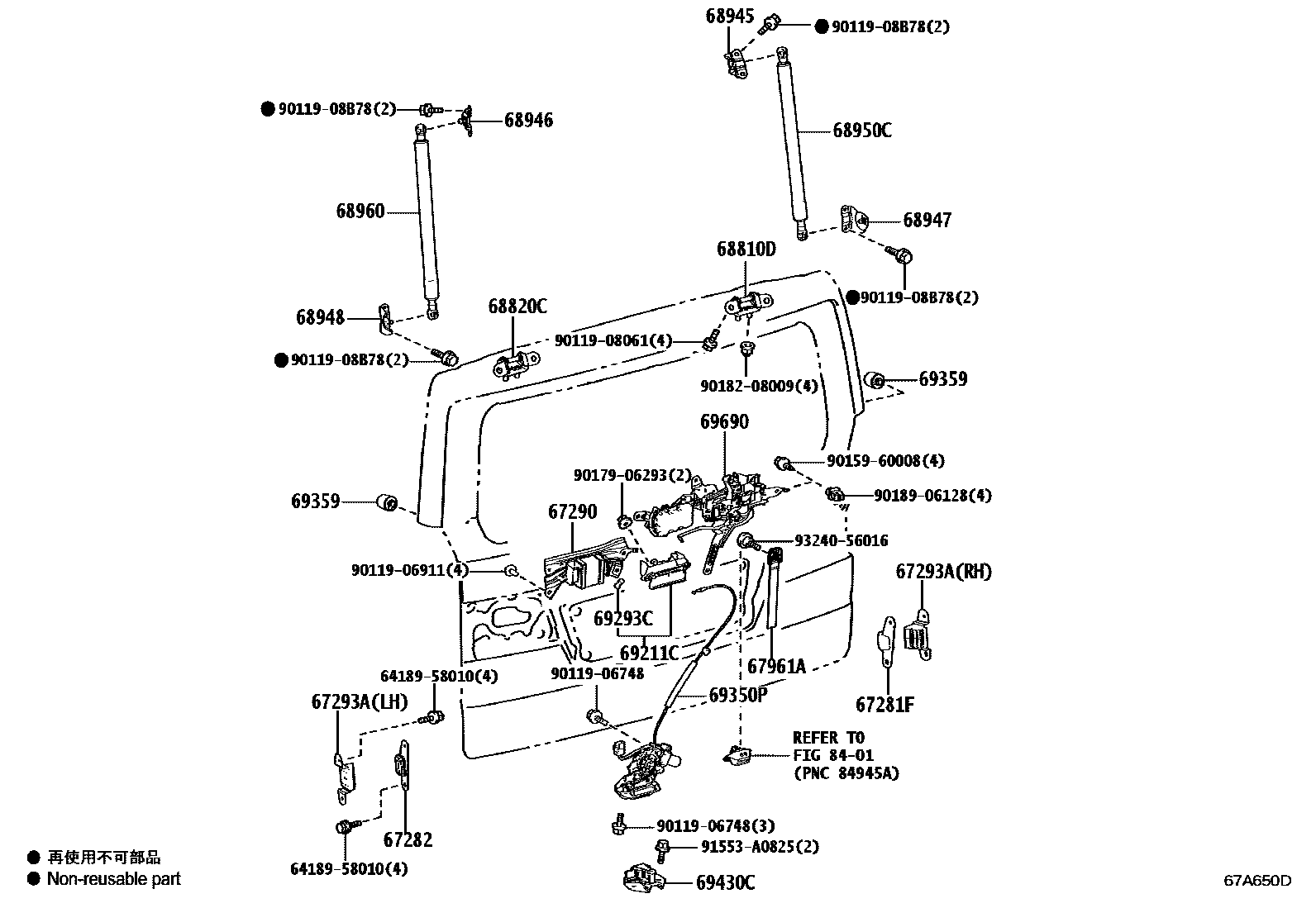

BACK DOOR LOCK & HINGE

0001 1 0002 1

67281FSTOPPER, BACK DOOR, LOWER

main67281-28010iGDH303201912-202506

67282STOPPER, BACK DOOR, NO.1

main67282-28010iGDH303201912-202506

67290DAMPER ASSY, BACK DOOR

main67290-26020iGDH303201912-202506

67293ACUSHION, BACK DOOR STOPPER

main67293-58020×2iGDH303201912-202506

67961ASTRAP, BACK DOOR PULL

main67961-26060-C1iGDH303201912-202506

BLACK,TRIM2#

68810DHINGE ASSY, BACK DOOR, RH

main68810-26011iGDH303201912-202208

main68810-26030iGDH303202209-202506

68820CHINGE ASSY, BACK DOOR, LH

main68820-26011iGDH303201912-202208

main68820-26030iGDH303202209-202506

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-26110iGDH303201912-202506

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-26110iGDH303201912-202506

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-26070iGDH303201912-202506

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-26070iGDH303201912-202506

68950CSTAY ASSY, BACK DOOR, RH

main68950-26140supersedes 68950-26420iGDH303201912-202506

68960STAY ASSY, BACK DOOR, LH

main68950-26140supersedes 68950-26420iGDH303201912-202506

69211CHANDLE, BACK DOOR OUTSIDE

main69023-26040iGDH303201912-202506

69293CSNAP, BACK DOOR HANDLE

main69293-12060iGDH303202007-202506

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-26190iGDH303201912-202506

69359CUSHION, BACK DOOR LOCK

main90541-09136×2iGDH303201912-202506

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95J00iGDH303201912-202506

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-26270iGDH303201912-202506

8401

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

9011906748

main90119-06748

9011906911

main90119-06911

9011908061

main90119-08061

9011908B78

main90119-08B78

9015960008

main90159-60008

9017906293

main90179-06293

9018208009

main90182-08009

9018906128

main90189-06128

91553A0825

main91553-A0825

9324056016

main93240-56016

31 parts on this diagram · 2 diagrams in section
