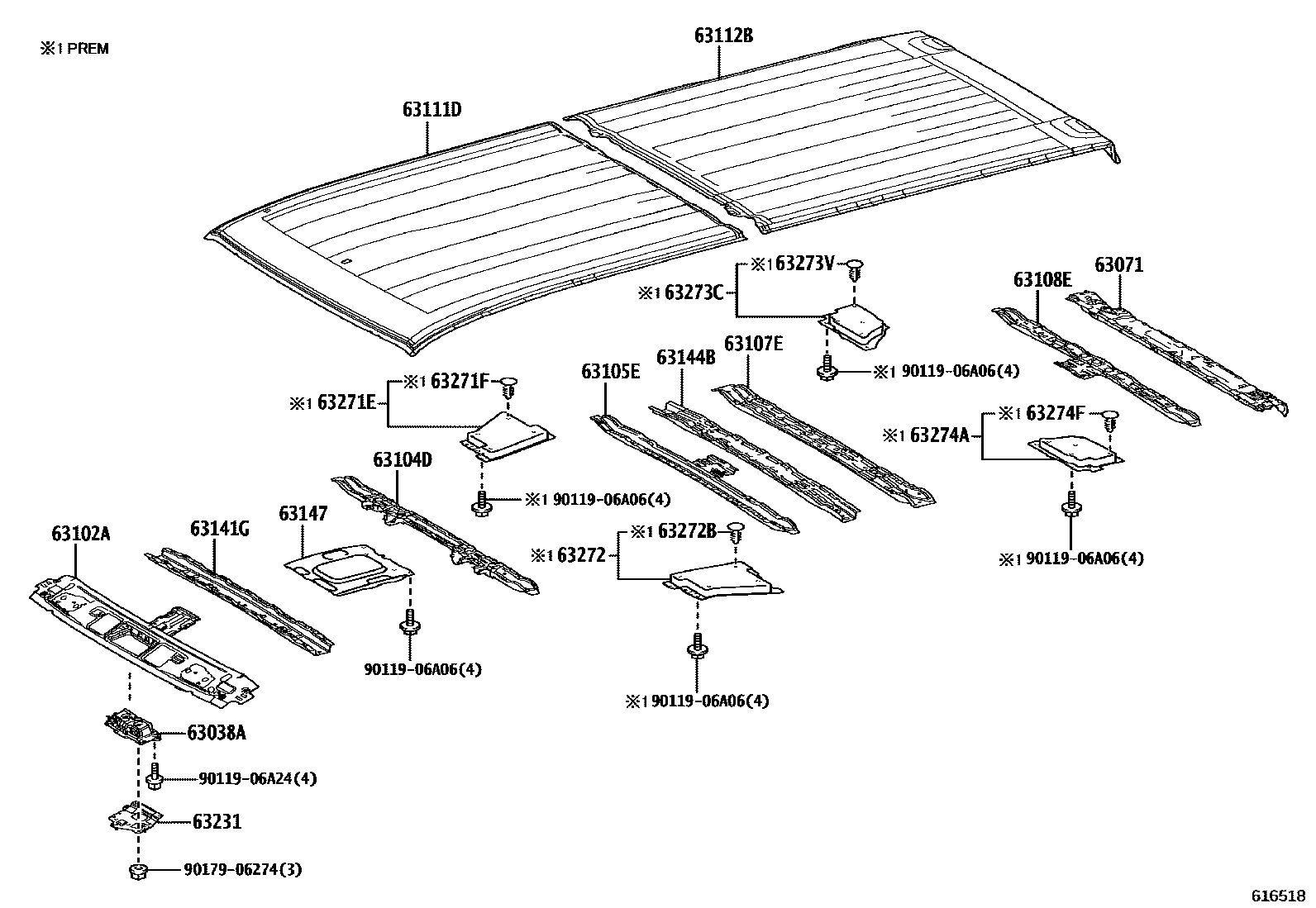

ROOF PANEL & BACK PANEL
63038ADAMPER SUB-ASSY, WINDSHIELD HEADER PANEL, RH
63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63111DPANEL, ROOF, FRONT
63112BPANEL, ROOF, REAR
63141GREINFORCEMENT, ROOF PANEL, NO.1
63144BREINFORCEMENT, ROOF PANEL, NO.4
63147BRACKET, ROOF PANEL REINFORCEMENT
63231BRACKET, ROOM LAMP
63271EPROTECTOR, ROOF LOCK BASE, FRONT RH
63271FCLIP, ROOF LOCK BASE PROTECTOR
63272PROTECTOR, ROOF LOCK BASE, FRONT LH
63272BCLIP, ROOF LOCK BASE PROTECTOR
63273CPROTECTOR, ROOF LOCK BASE, REAR RH
63273VCLIP, ROOF LOCK BASE PROTECTOR
63274APROTECTOR, ROOF LOCK BASE, REAR LH
63274FCLIP, ROOF LOCK BASE PROTECTOR
9011906A06
main90119-06A06
9011906A24
main90119-06A24
9017906274
main90179-06274
24 parts on this diagram · 1 diagram in section
