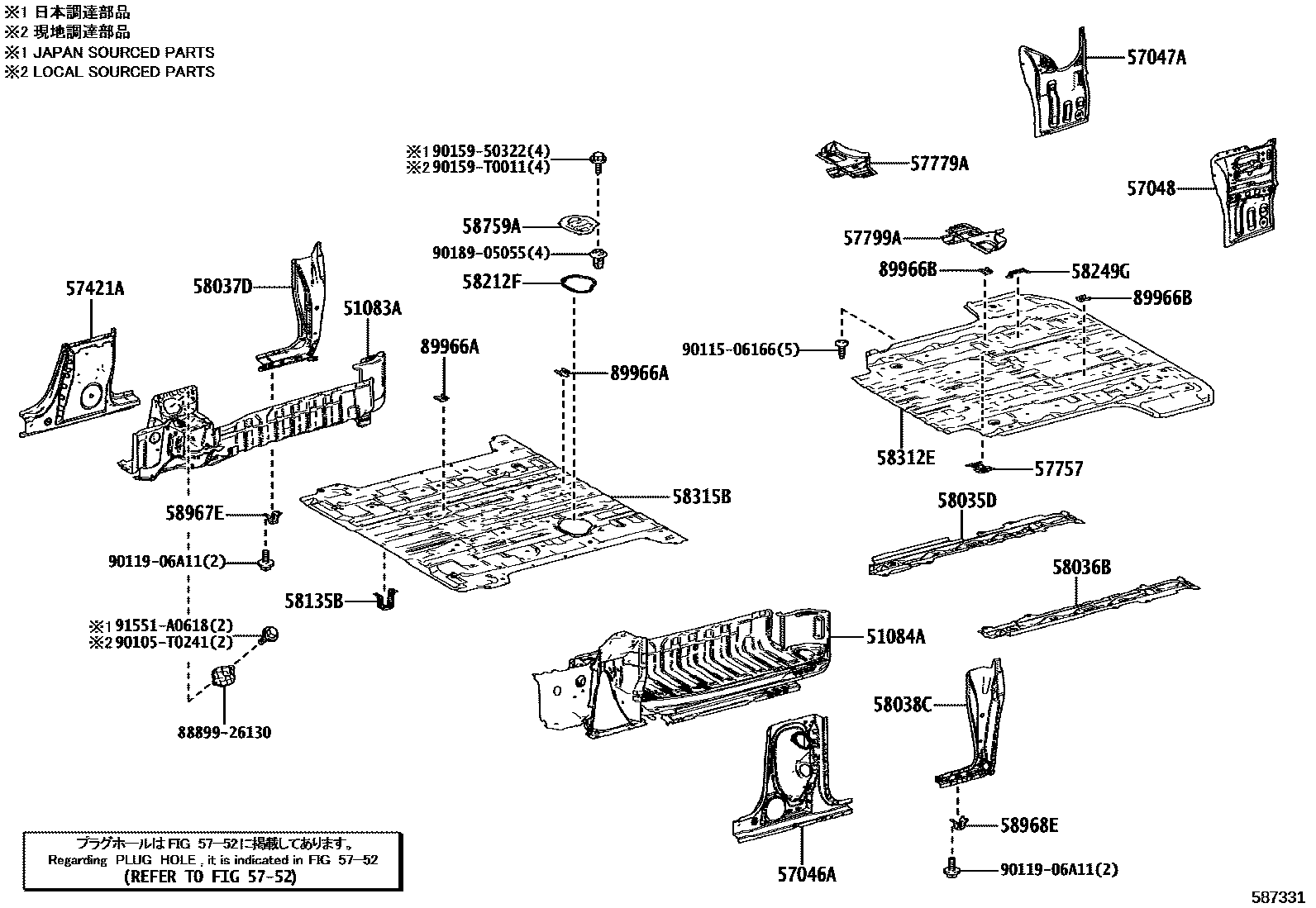

REAR FLOOR PANEL & REAR FLOOR MEMBER
51083ASTEP SUB-ASSY, RH
51084ASTEP SUB-ASSY, LH
57046APLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57047ARAIL SUB-ASSY, FLOOR SIDE, REAR RH
57048RAIL SUB-ASSY, FLOOR SIDE, REAR LH
57421APLATE, FLOOR SIDE RAIL, RH
5752
57757PLATE, REAR FLOOR CROSSMEMBER
57779AGUSSET, REAR FLOOR CROSSMEMBER, B
57799AGUSSET, REAR FLOOR CROSSMEMBER, A
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
58037DREINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH
58038CREINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH
58135BBRACKET, FLOOR INSULATOR SUPPORT
58212FSEAL, CENTER FLOOR
58249GBRACKET, CABLE CLAMP, NO.2
58312EPANEL, REAR FLOOR, REAR
58315BPANEL, REAR FLOOR, FRONT
58759ACOVER, FUEL TANK INSPECTION HOLE
58967EBRACKET, JACK SUPPORT, NO.1
58968EBRACKET, JACK SUPPORT, NO.2
89966ABRACKET, OSCILLATOR ELECTRICAL KEY
89966BBRACKET, OSCILLATOR ELECTRICAL KEY
8889926130COVER, EVAPORATOR
main88899-26130
90105T0241
main90105-T0241
9011506166
main90115-06166
9011906A11
main90119-06A11
9015950322
main90159-50322
90159T0011
main90159-T0011
9018905055
main90189-05055
91551A0618
main91551-A0618
32 parts on this diagram · 3 diagrams in section
