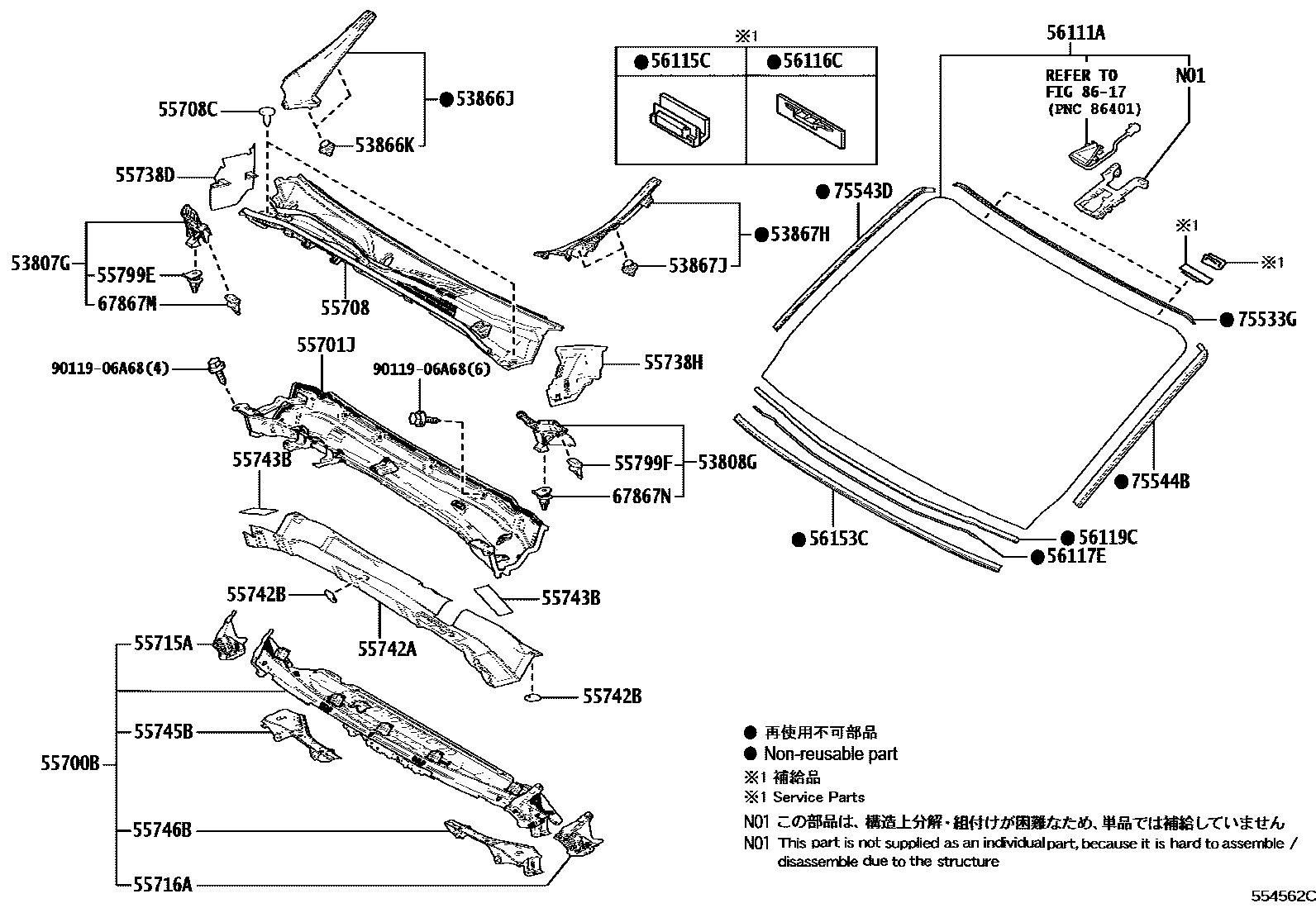

COWL PANEL & WINDSHIELD GLASS
53807GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53808GSEAL SUB-ASSY, FENDER APRON MUDGUARD, LH
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53866KCLIP, FRONT FENDER TO COWL SIDE SEAL
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
53867JCLIP, FRONT FENDER TO COWL SIDE SEAL
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55738HSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55742ASHEET, COWL TOP INSULATOR
55742BCLIP, COWL TOP INSULATOR SHEET
55743BSHEET, COWL TOP INSULATOR, NO.2
55745BPANEL, COWL TOP INSIDE CORNER, RH
55746BPANEL, COWL TOP INSIDE CORNER, LH
55799ECLIP, FENDER APRON MUDGUARD SEAL
55799FCLIP, FENDER APRON MUDGUARD SEAL
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117EDAM, WINDOW GLASS ADHESIVE
56119CSEAL, WINDSHIELD GLASS
56153CMOULDING, FRONT WINDOW, INNER CENTER
67867MRETAINER, FENDER APRON MUDGUARD SEAL
67867NRETAINER, FENDER APRON MUDGUARD SEAL
75533GMOULDING, WINDSHIELD, OUTSIDE
75543DMOULDING, WINDSHIELD, OUTSIDE NO.2 RH
75544BMOULDING, WINDSHIELD, OUTSIDE NO.2 LH
8617
9011906A68
main90119-06A68
34 parts on this diagram · 1 diagram in section
