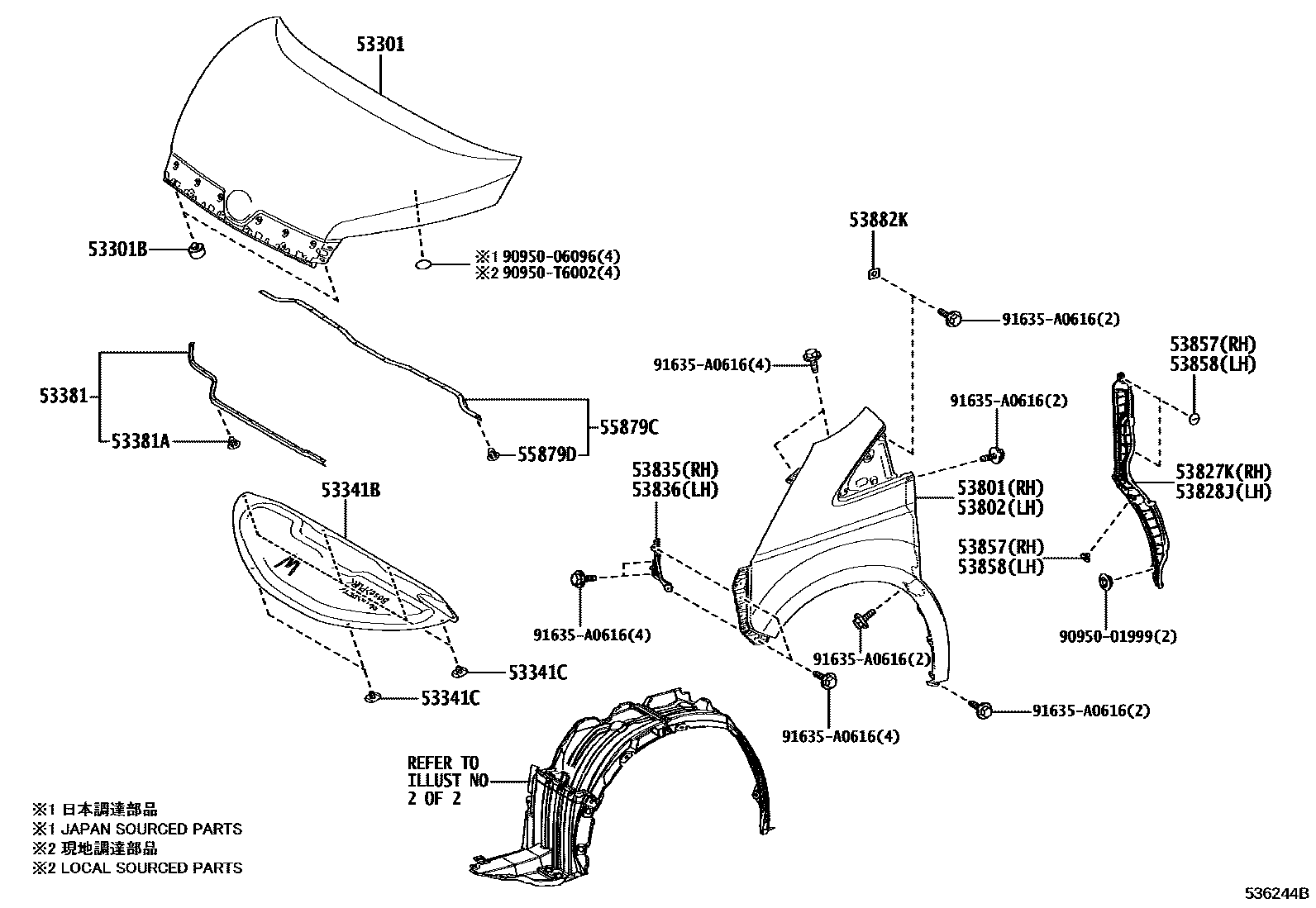

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-26100iGDH303¥41,200201912-202506

53301BCUSHION, HOOD BUMPER

main90541-10044iGDH303¥160201912-202506

53341BINSULATOR, HOOD

main53341-26060iGDH303¥3,600201912-202506

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGDH303¥120201912-202506

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-26130iGDH303¥1,080201912-202506

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGDH303¥100201912-202506

53801FENDER SUB-ASSY, FRONT RH

main53801-26050iGDH303¥40,900201912-202506

53802FENDER SUB-ASSY, FRONT LH

main53802-26080iGDH303¥40,900201912-202506

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-26020iGDH303¥2,690201912-202506

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-26030iGDH303¥2,690201912-202506

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-26020iGDH303¥1,320201912-202506

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-26010iGDH303¥1,320201912-202506

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030iGDH303¥70201912-202409

main90467-07223iGDH303¥60202409-202506

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030iGDH303¥70201912-202409

main90467-07223iGDH303¥60202409-202506

53882KSEAL, FRONT FENDER

main53882-16030iGDH303¥60201912-202506

55879CSEAL, COWL VENT

main55879-26030iGDH303¥2,300201912-202506

55879DCLIP(FOR COWL VENT SEAL)

main90467-08011iGDH303¥100201912-202506

9095001999

main90950-01999¥100

9095006096

main90950-06096¥100

90950T6002

main90950-T6002

91635A0616

main91635-A0616¥60

21 parts on this diagram · 2 diagrams in section
