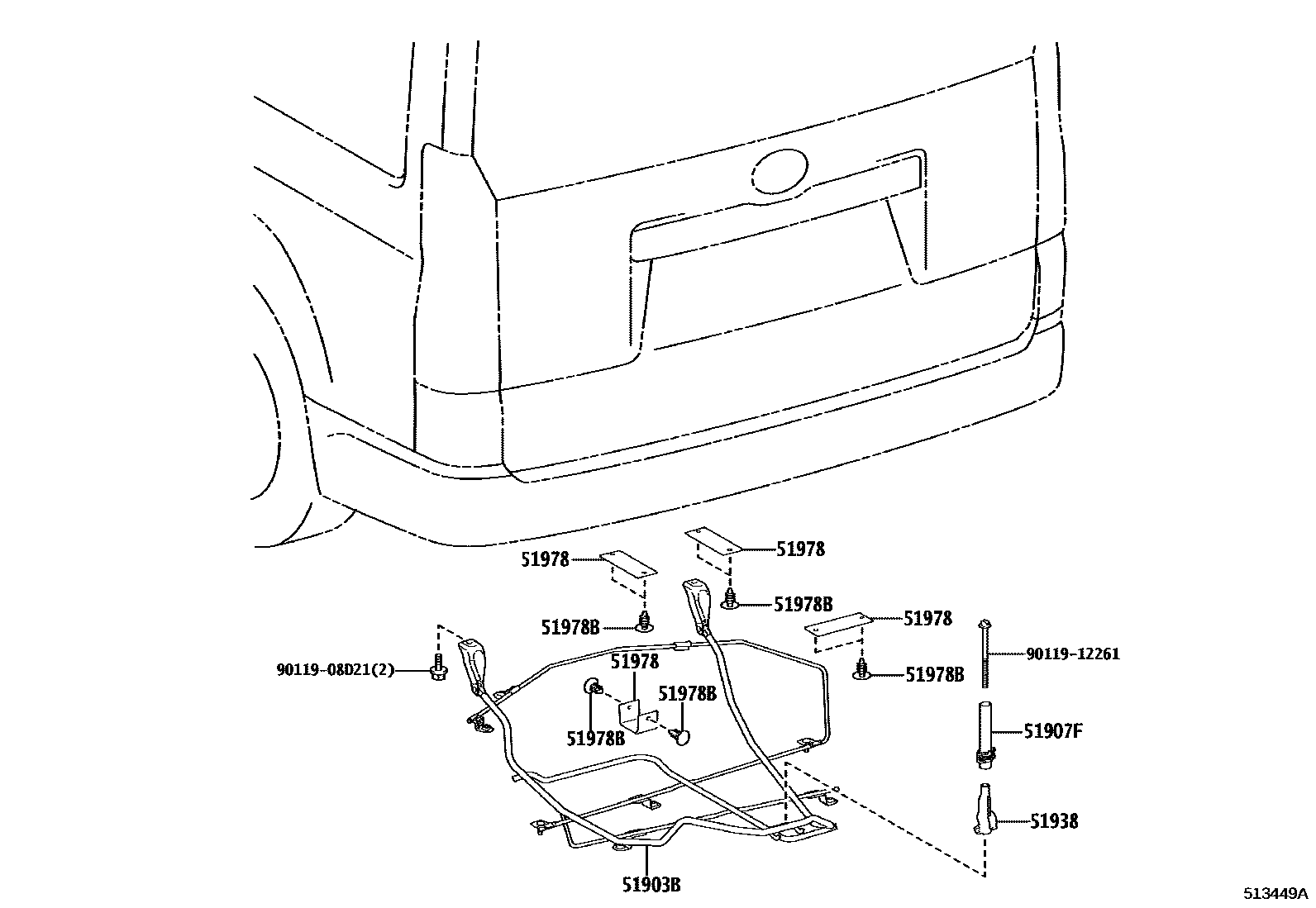

SPARE WHEEL CARRIER

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-26720iGDH303201912-202506

51907FSTOPPER SUB-ASSY, SPARE WHEEL CARRIER

main51907-26030iGDH303201912-202506

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iGDH303201912-202506

51978PROTECTOR, SPARE WHEEL CARRIER

main51978-26010iGDH303201912-202506

51978BCLIP, SPARE WHEEL CARRIER PROTECTOR

main90467-06020-C0iGDH303201912-202201

BLACK

sub90467-06020

main90467-06020-C0iGDH303202201-202506

sub90467-06020

main90467-T0046-C0iGDH303202201-202506

9011908D21

main90119-08D21

9011912261

main90119-12261

7 parts on this diagram · 1 diagram in section
