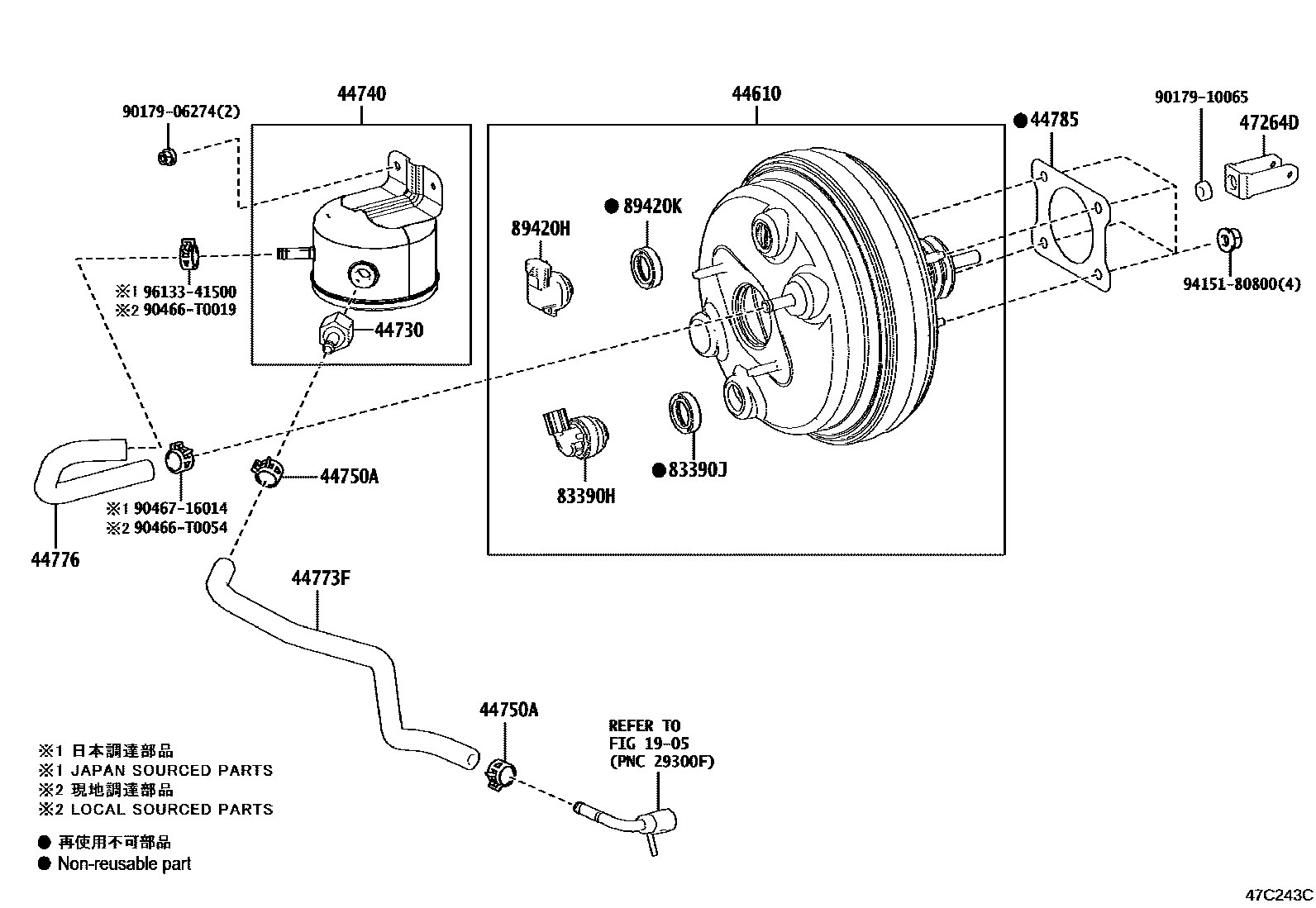

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-26A40iGDH303201912-202505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60050iGDH303201912

44740RESERVOIR ASSY, VACUUM

main44740-26180iGDH303201912

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-T0019iGDH303202208

main96133-41500iGDH303201912

44773FHOSE, UNION TO CHECK VALVE

main44773-26140iGDH303201912

main44773-VR010iGDH303202208

44776HOSE, BRAKE BOOSTER

main44776-26090iGDH303201912

main44776-VR010iGDH303202208

44785GASKET, BRAKE BOOSTER

main44785-12040iGDH303201912

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGDH303201912

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGDH303201912-202506

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGDH303201912

89420HSENSOR ASSY, VACUUM

main89421-52020iGDH303201912-202506

89420KGROMMET, VACUUM SENSOR

main90480-24439iGDH303201912

9017906274

main90179-06274

9017910065

main90179-10065

90466T0019

main90466-T0019

90466T0054

main90466-T0054

9046716014

main90467-16014

9415180800

main94151-80800

9613341500

main96133-41500

20 parts on this diagram · 1 diagram in section
