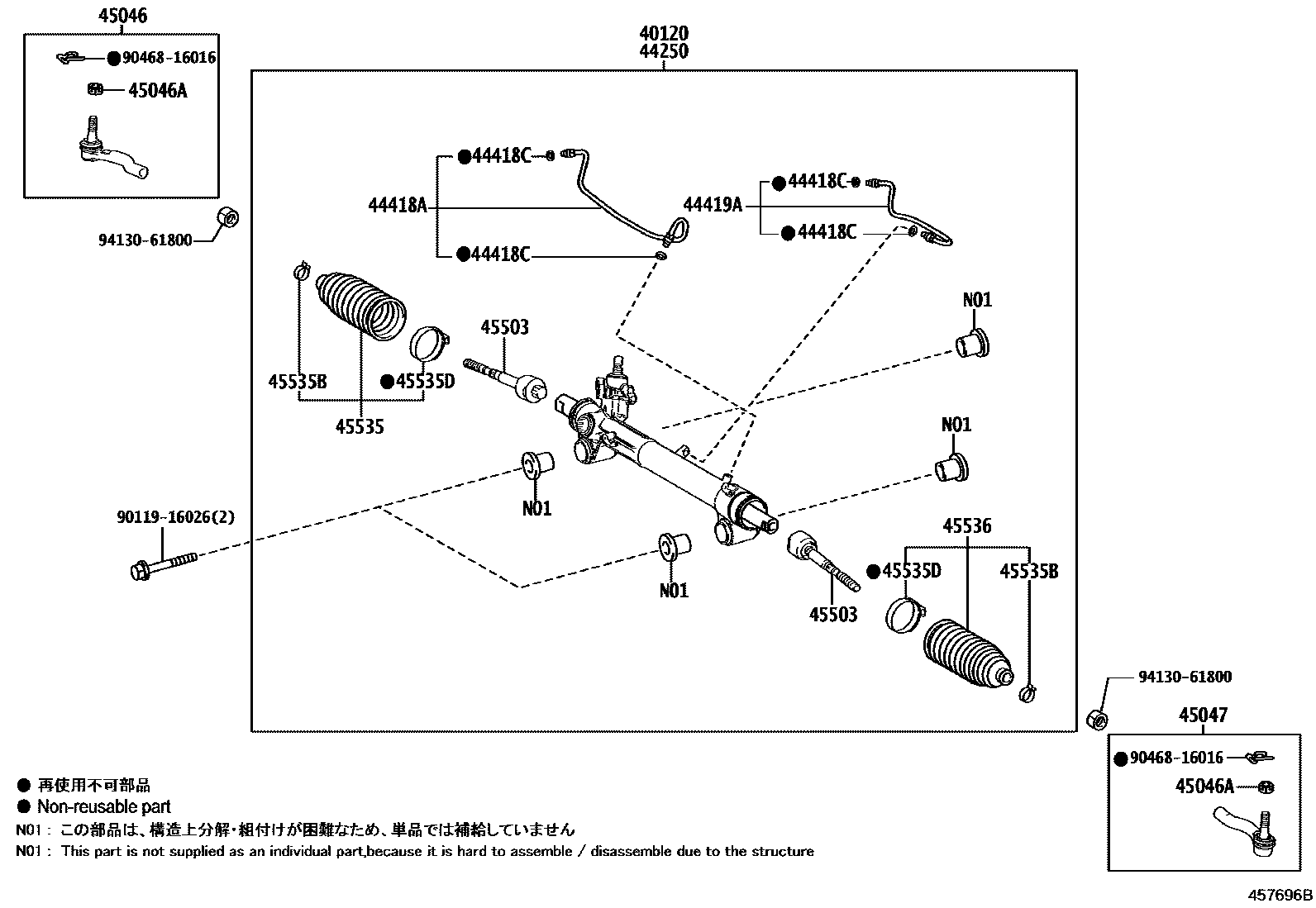

FRONT STEERING GEAR & LINK

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-26610iGDH303201912-202506

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-26610iGDH303201912-202506

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-26290iGDH303201912-202506

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-06026×4iGDH303201912-202506

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-26270iGDH303201912-202506

45046END SUB-ASSY, TIE ROD, RH

main45046-29565iGDH303201912-202506

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16003×2iGDH303201912-202506

45047END SUB-ASSY, TIE ROD, LH

main45047-29225iGDH303201912-202506

45503END SUB-ASSY, STEERING RACK

main45503-26180×2iGDH303201912-202506

45535BOOT, STEERING RACK, NO.1

main45535-29045iGDH303201912-202506

45535BCLIP(FOR STEERING RACK BOOT)

main96134-42300×2iGDH303201912-202506

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-A0004×2iGDH303201912-202506

45536BOOT, STEERING RACK, NO.2

main45535-29045iGDH303201912-202506

9011916026

main90119-16026

9046816016

main90468-16016

9413061800

main94130-61800

16 parts on this diagram · 1 diagram in section
