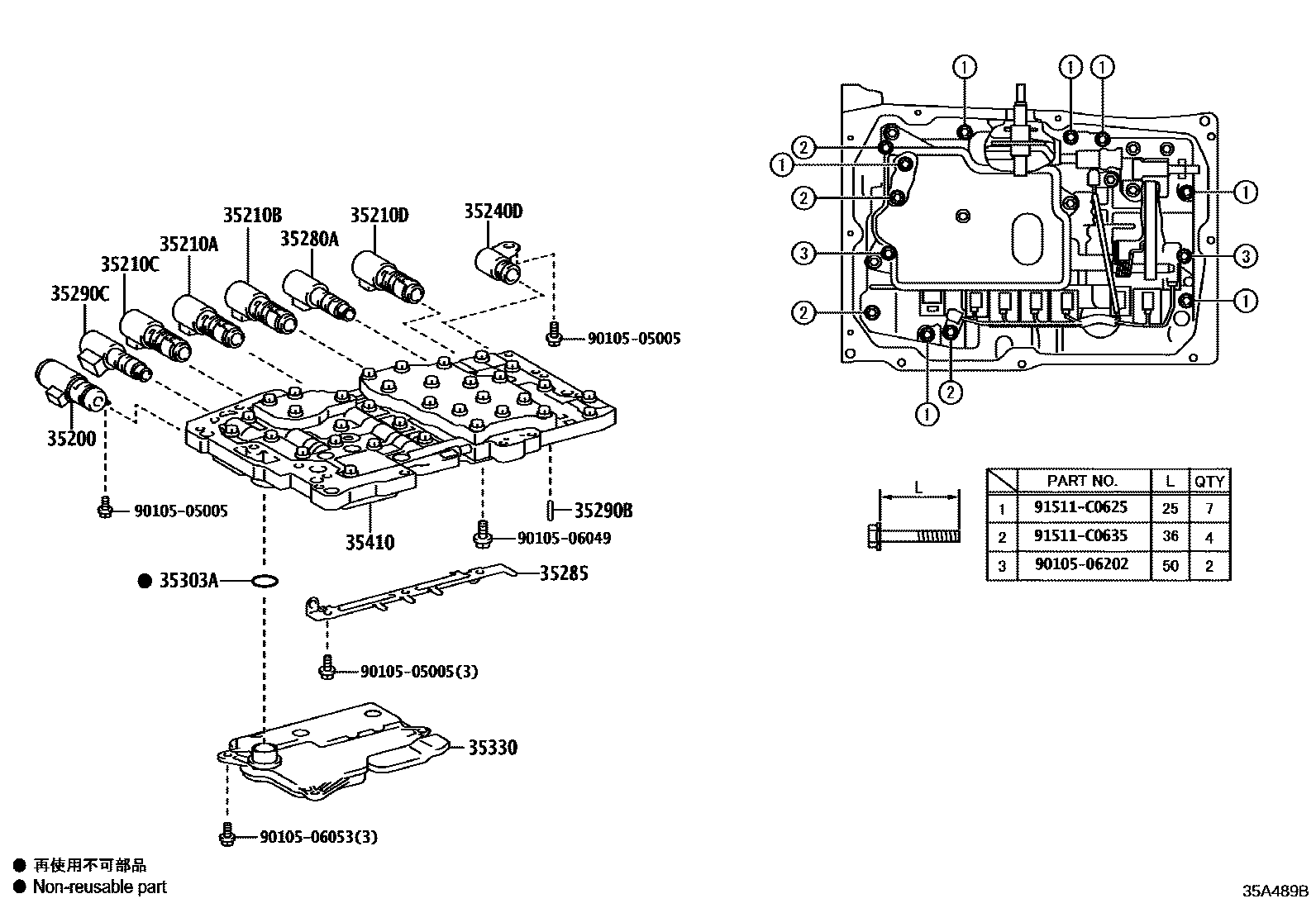

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E 0002 1AC60E

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGDH303201912-202506

35210AVALVE, SOLENOID(SL1)

main35210-71010iGDH303201912-202506

35210BVALVE, SOLENOID(SL3)

main35210-71010iGDH303201912-202506

35210CVALVE, SOLENOID(SL2)

main35210-71010iGDH303201912-202506

35210DVALVE, SOLENOID(SL4)

main35210-71010iGDH303201912-202506

35240DVALVE, SOLENOID(SL)

main35240-71010iGDH303201912-202506

35280AVALVE, SOLENOID(SLU)

main35280-71010iGDH303201912-202206

sub35280-71020

main35280-71020iGDH303202207-202506

35285PLATE, SOLENOID LOCK

main35285-71010iGDH303201912-202506

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGDH303201912-202506

35290CVALVE, SOLENOID(SLT)

main35290-71020iGDH303201912-202206

main35290-71030iGDH303202207-202506

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGDH303201912-202506

35330STRAINER ASSY, VALVE BODY OIL

main35330-71010iGDH303201912-202506

35410BODY ASSY, TRANSMISSION VALVE

main35410-71112iGDH303201912-202310

sub35410-71113

main35410-71113iGDH303202311-202506

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

91511C0625

main91511-C0625

91511C0635

main91511-C0635

19 parts on this diagram · 2 diagrams in section
