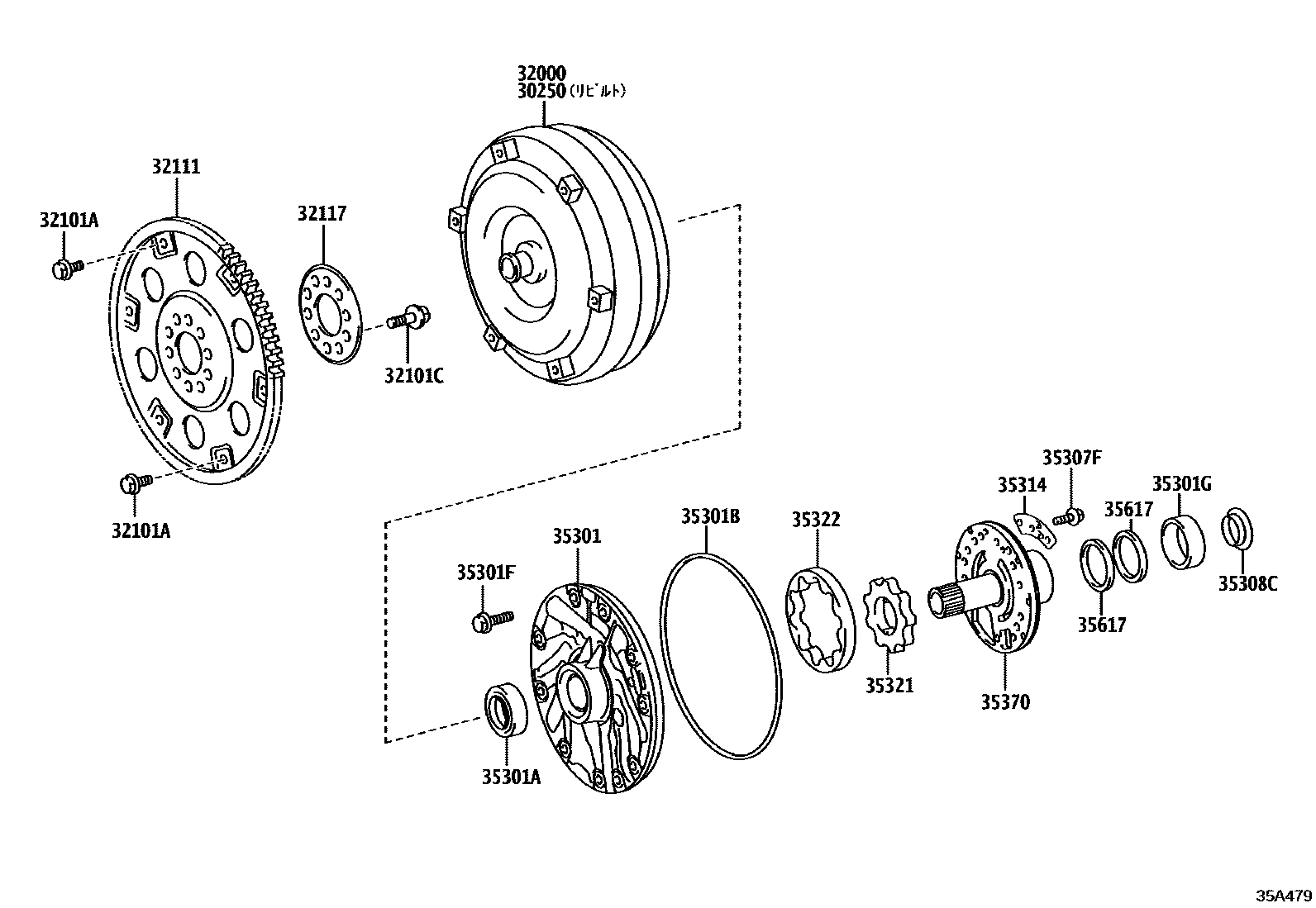

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-71070iGDH303201912-202506

32000CONVERTER ASSY, TORQUE

main32000-71070iGDH303201912-202506

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGDH303201912-202506

main90105-10546iGDH303201912-202506

main90105-T0237iGDH303201912-202506

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-13015iGDH303201912-202104

main90105-T0203iGDH303201912-202104

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030iGDH303201912-202104

main32111-71010iGDH303201912-202506

32117SPACER, DRIVE PLATE, REAR

main32117-60050iGDH303201912-202506

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGDH303201912-202506

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGDH303201912-202506

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGDH303201912-202506

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGDH303201912-202506

35301GBEARING,NEEDLE ROLLER

main90374-71002iGDH303201912-202506

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGDH303201912-202506

35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)

main35789-71070iGDH303201912-202506

35314PLATE, FRONT OIL PUMP

main35314-71020iGDH303201912-202506

35321GEAR, FRONT OIL PUMP DRIVE

main35321-71010iGDH303201912-202506

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-71010iGDH303201912-202506

35370SHAFT ASSY, STATOR

main35370-71010iGDH303201912-202506

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGDH303201912-202506

18 parts on this diagram · 1 diagram in section
