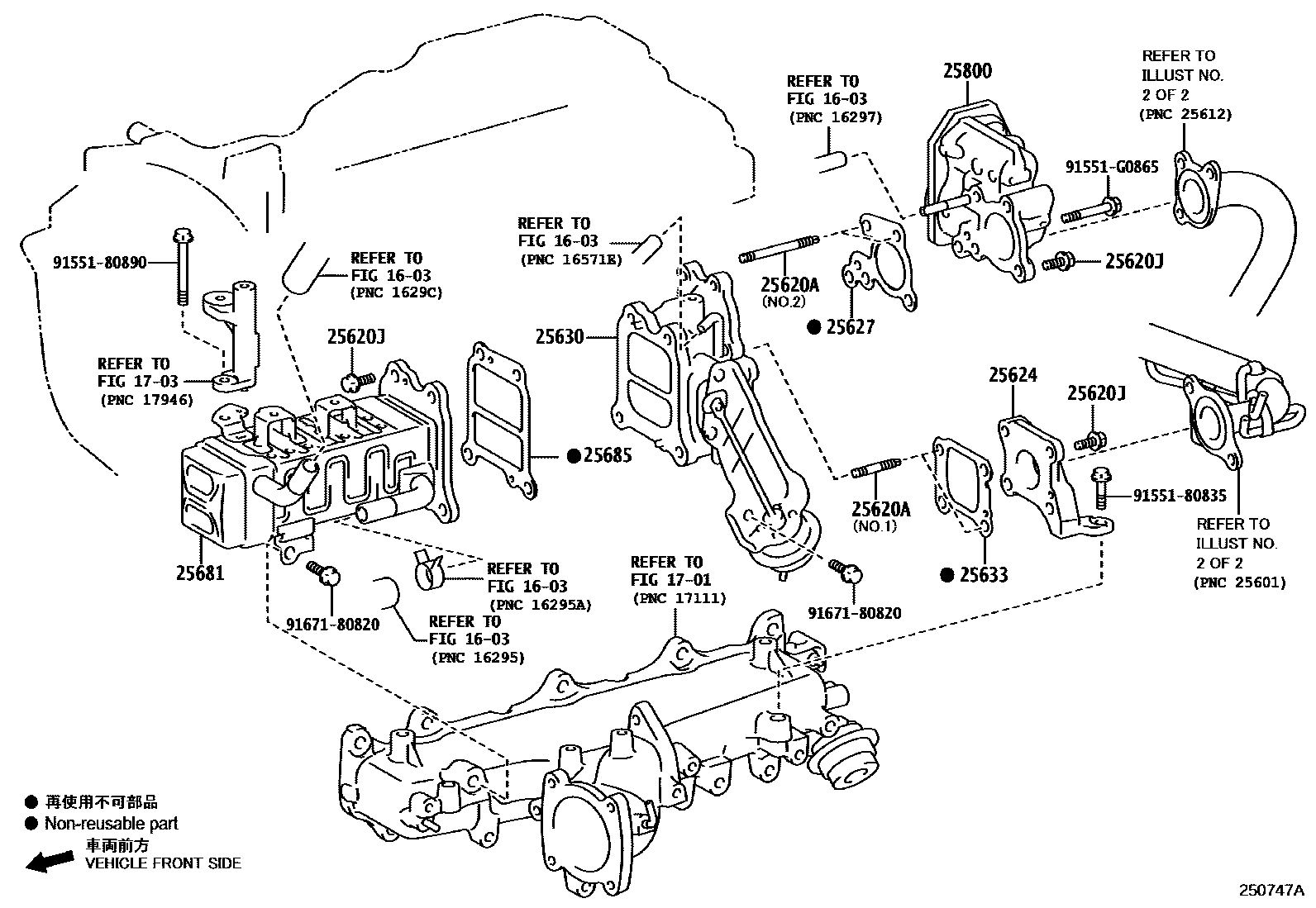

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

1703

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDH303¥80201912

main90126-08064i1GDFTV..GDH303¥120201912

25620JBOLT(FOR EGR VALVE)

main91671-80825i1GDFTV..GDH303¥80201912

25624ADAPTER, EGR VALVE

main25624-11010i1GDFTV..GDH303¥2,240201912

25627GASKET, EGR VALVE

main25627-11050i1GDFTV..GDH303¥270201912

25630VALVE ASSY, EGR, NO.2

main25630-11010i1GDFTV..GDH303¥42,200201912-202005

sub25630-11011¥35,100

main25630-11011i1GDFTV..GDH303¥35,100202006-202202

sub25630-11012¥31,900

main25630-11012i1GDFTV..GDH303¥31,900202203

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDH303¥410201912

25681COOLER, EGR, NO.1

main25681-0W020i1GDFTV..GDH303¥33,500201912

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDH303¥410201912

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i1GDFTV..GDH303¥20,200201912

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

16 parts on this diagram · 2 diagrams in section
