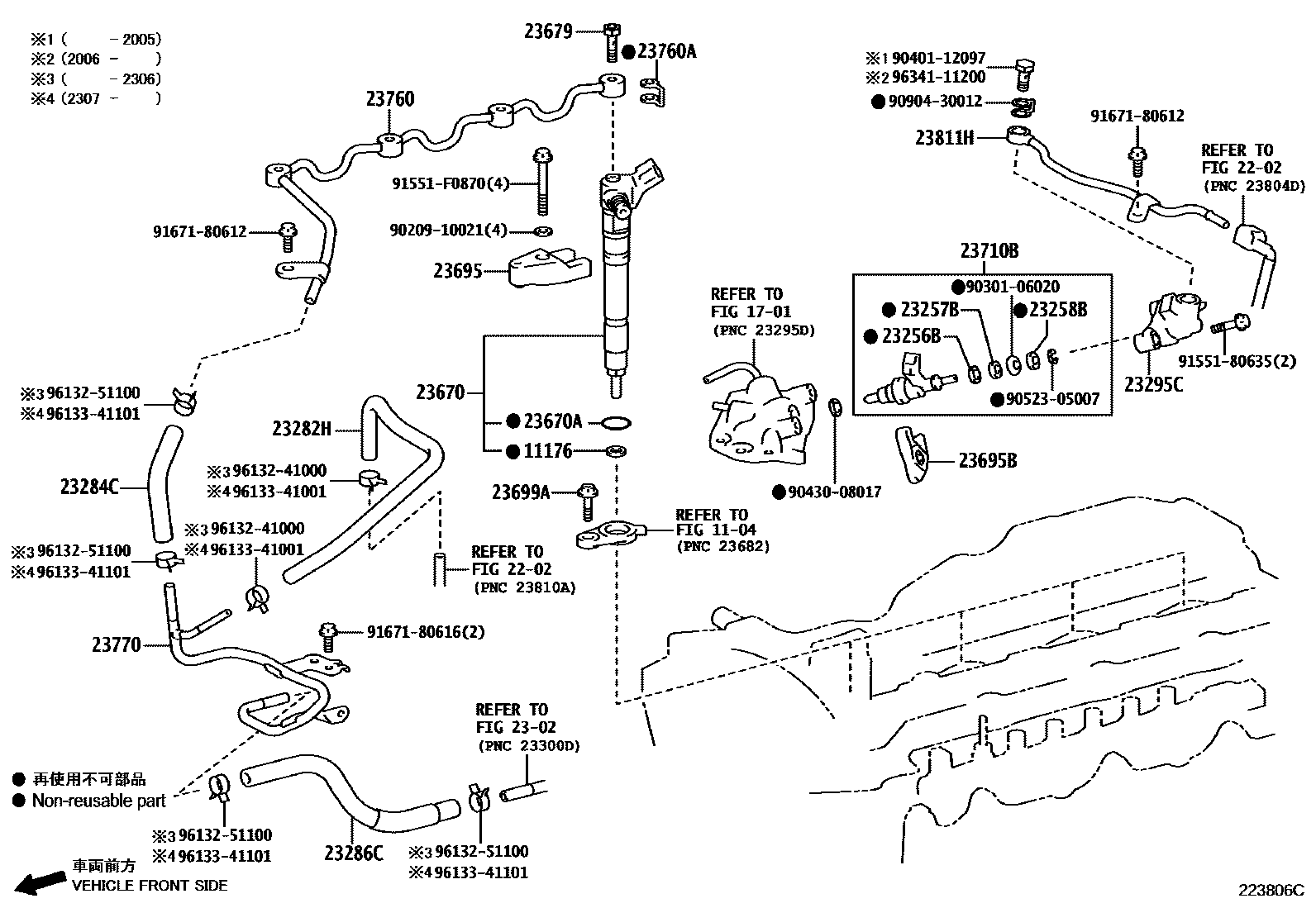

INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
1701
2202
2302
23256BRING, FUEL INJECTOR BACK-UP, NO.1
23257BRING, FUEL INJECTOR BACK-UP, NO.2
23258BRING, FUEL INJECTOR BACK-UP, NO.3
23282HHOSE, FUEL, NO.4
23284CHOSE, FUEL, NO.5
23286CHOSE, FUEL, NO.6
23295CHOLDER, INJECTOR
23670INJECTOR ASSY
23670ARING, O(FOR INJECTOR ASSY)
23679SCREW, INJECTOR FOLLOW
23695CLAMP, NOZZLE HOLDER, NO.1
23695BCLAMP, NOZZLE HOLDER, NO.2
23699ASEAT, NOZZLE HOLDER CLAMP
23710BINJECTOR ASSY, EXHAUST FUEL ADDITION
23760PIPE ASSY, NOZZLE LEAKAGE
23760AGASKET
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23811HPIPE, FUEL, NO.1
9020910021
9030106020
9040112097
9043008017
9052305007
9090430012
9155180635
91551F0870
9167180612
9167180616
9613241000
9613251100
9613341001
9613341101
9634111200
38 parts on this diagram · 1 diagram in section
