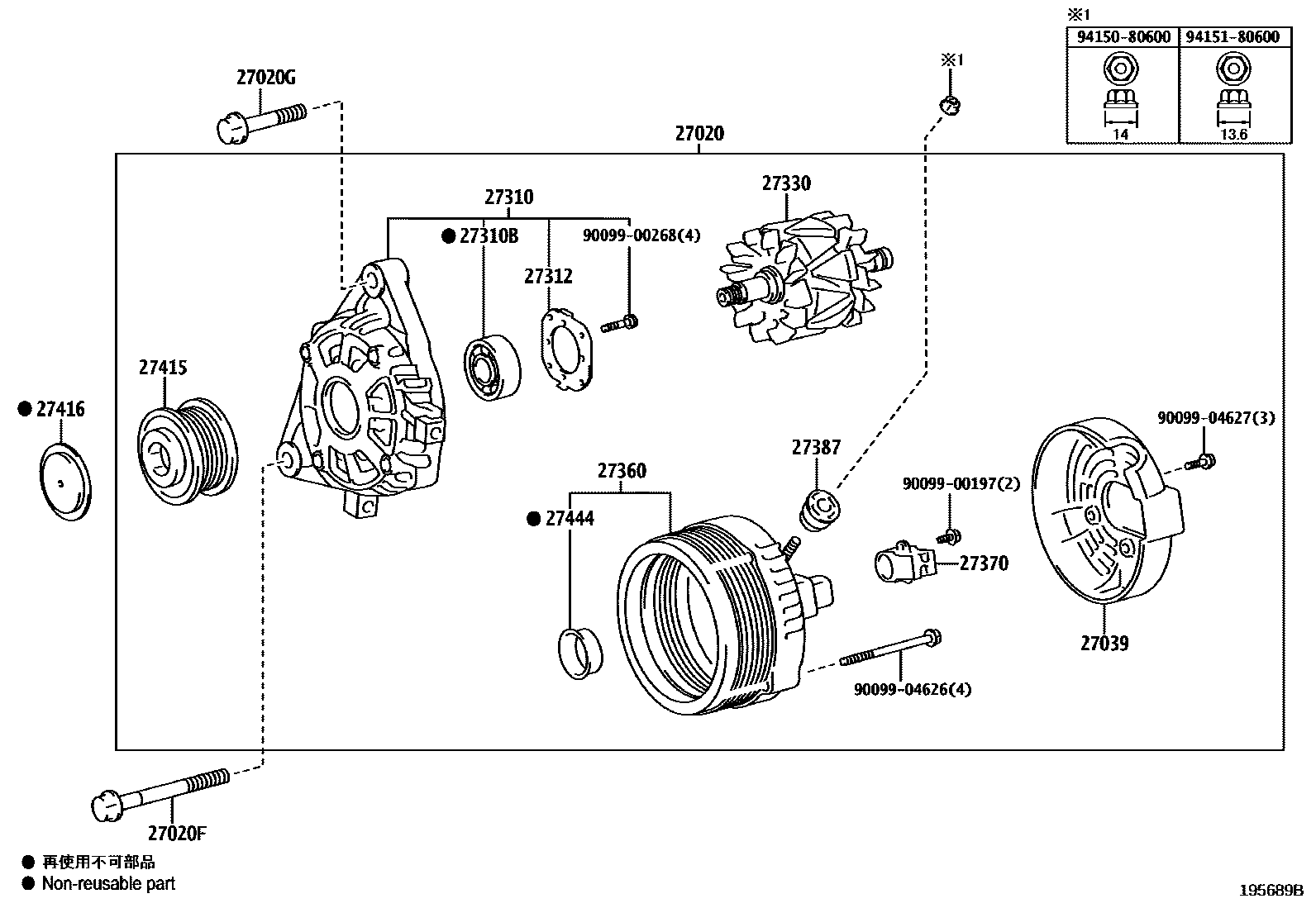

ALTERNATOR
27020ALTERNATOR ASSY
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27387INSULATOR, TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
9415080600
main94150-80600
9415180600
main94151-80600
20 parts on this diagram · 1 diagram in section
