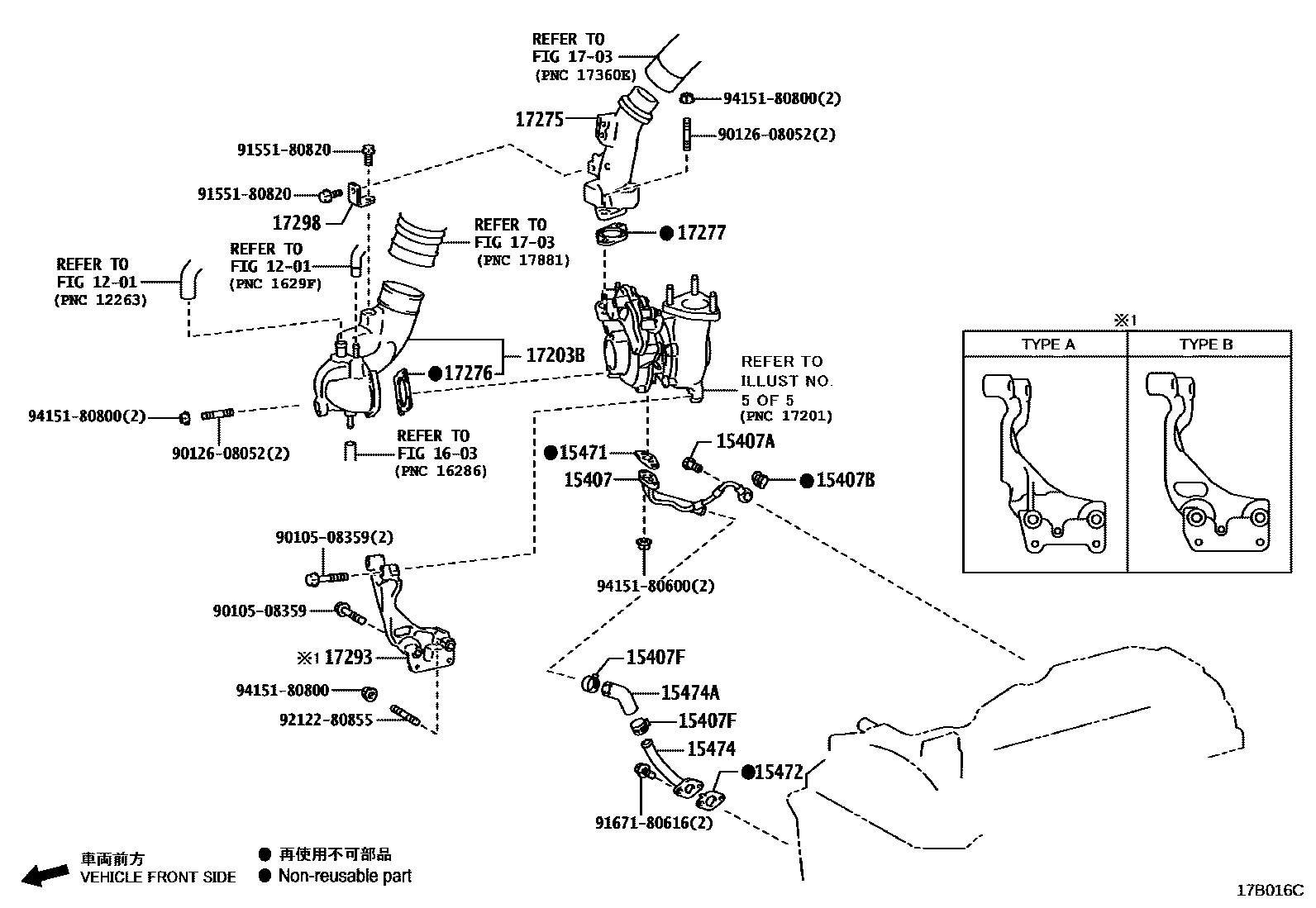

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
17276GASKET, COMPRESSOR INLET
17277GASKET, COMPRESSOR OUTLET
17298STAY, COMPRESSOR ELBOW
9010508359
main90105-08359
9012608052
main90126-08052
9155180820
main91551-80820
9167180616
main91671-80616
9212280855
main92122-80855
9415180600
main94151-80600
9415180800
main94151-80800
22 parts on this diagram · 5 diagrams in section
