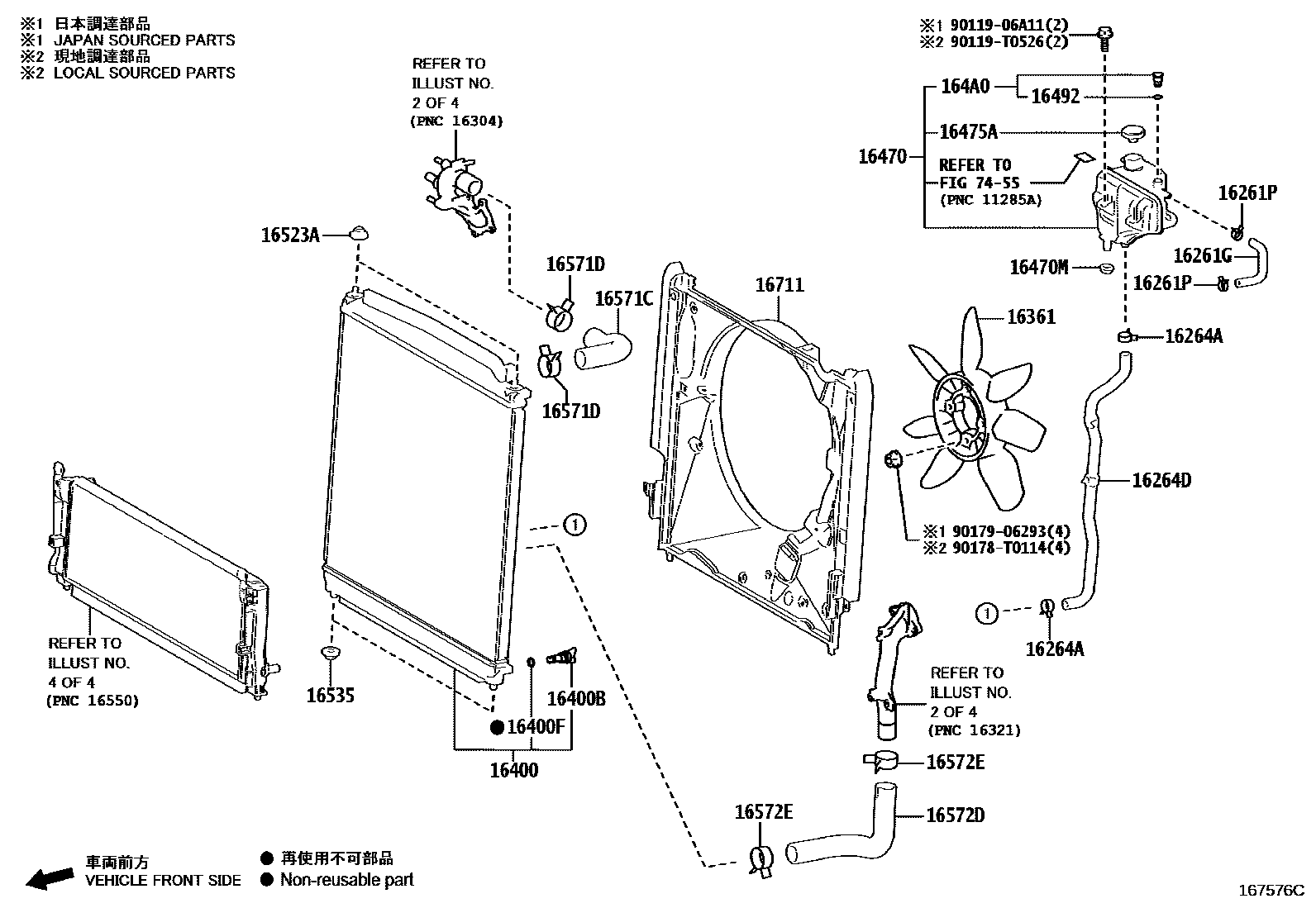

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261GHOSE, WATER BY-PASS, NO.1

main16261-11110i1GDFTV..GDH303201912

16261PCLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901×2i1GDFTV..GDH303202011

main96136-51901×2i1GDFTV..GDH303201912-202011

16264HOSE, WATER BY-PASS, NO.2

main16264-11130i1GDFTV..GDH303201912-202011

main16264-11131i1GDFTV..GDH303202012

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-26004×2i1GDFTV..GDH303202011

main96138-52501×2i1GDFTV..GDH303201912-202011

16264DHOSE, WATER BY-PASS, NO.2

main16264-11140i1GDFTV..GDH303201912

16361FAN

main16361-67020i1GDFTV..GDH303201912

16400RADIATOR ASSY

main16400-11A10i1GDFTV..GDH303201912

16400BPLUG, RADIATOR DRAIN COCK

main16417-30170i1GDFTV..GDH303201912

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520i1GDFTV..GDH303201912

16470TANK ASSY, RADIATOR RESERVE

main16470-11140i1GDFTV..GDH303201912

16470MGROMMET

main90480-25025i1GDFTV..GDH303201912

16475ACAP, RESERVE TANK

main16475-28140i1GDFTV..GDH303201912

16492RING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-21050i1GDFTV..GDH303201912

164A0COCK ASSY, RESERVE TANK

main164A0-37010i1GDFTV..GDH303201912

16523ACUSHION, RADIATOR SUPPORT

main16523-11060×2i1GDFTV..GDH303201912

16535SUPPORT, RADIATOR, LOWER

main16535-11040×2i1GDFTV..GDH303201912

16571CHOSE, RADIATOR, NO.1

main16571-11270i1GDFTV..GDH303201912

16571DCLIP, RADIATOR HOSE, NO.1

main90466-T0024×2i1GDFTV..GDH303201912

main96136-54801×2i1GDFTV..GDH303201912

16572DHOSE, RADIATOR, NO.2

main16572-11310i1GDFTV..GDH303201912-202504

16572ECLIP, RADIATOR HOSE, NO.2

main90466-T0024×2i1GDFTV..GDH303201912

main96136-54801×2i1GDFTV..GDH303201912

16711SHROUD, FAN

main16711-11310i1GDFTV..GDH303201912

7455

9011906A11

main90119-06A11

90119T0526

main90119-T0526

90178T0114

main90178-T0114

9017906293

main90179-06293

26 parts on this diagram · 4 diagrams in section
