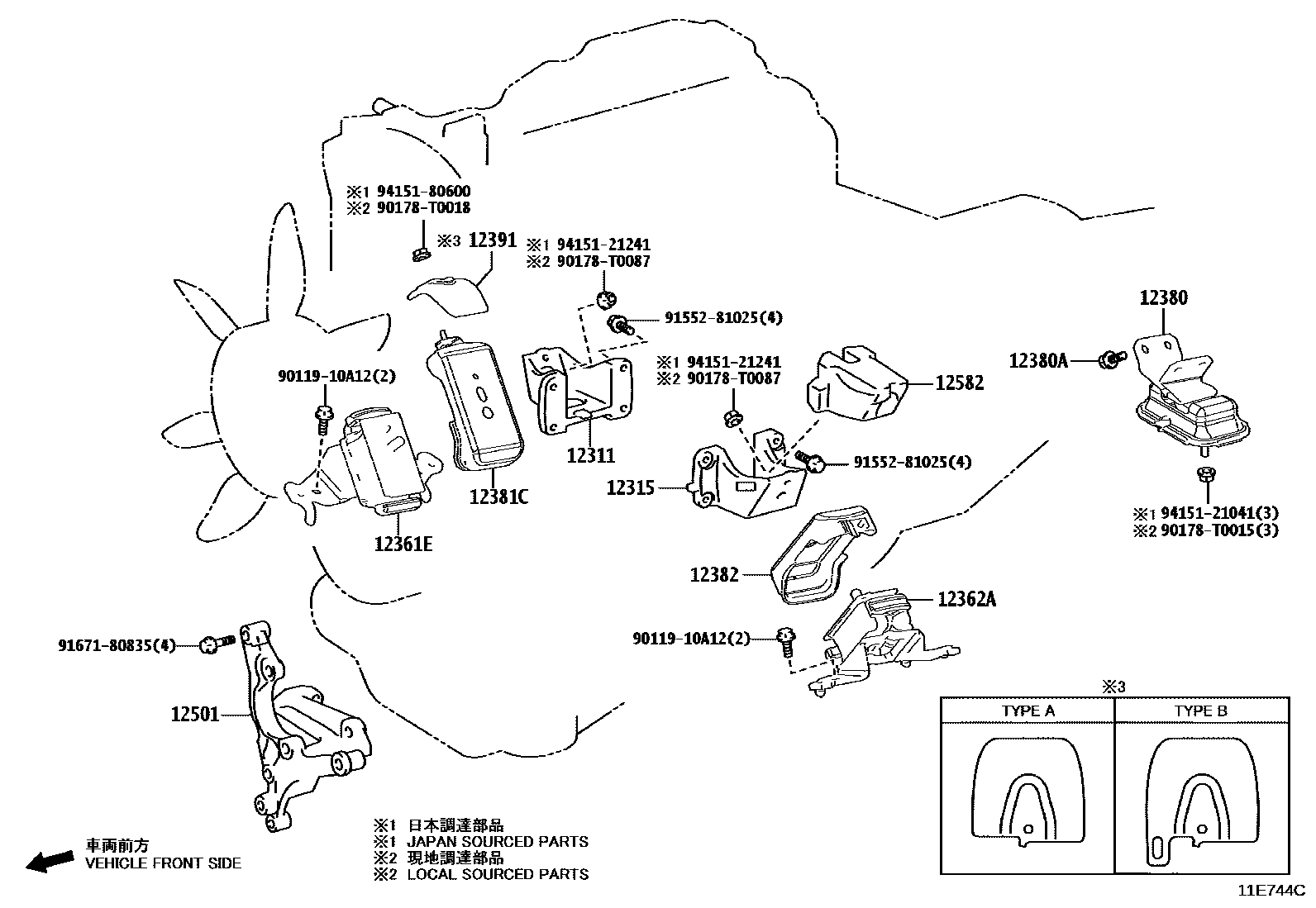

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-11140i1GDFTV..GDH303201912

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-11060i1GDFTV..GDH303201912

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-11210i1GDFTV..GDH303201912

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-11310i1GDFTV..GDH303201912

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-11010i1GDFTV..GDH303201912

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90119-10A12i1GDFTV..GDH303201912

12381CSTABILIZER, ENGINE MOUNTING, RH

main12381-11030i1GDFTV..GDH303201912

12382STABILIZER, ENGINE MOUNTING, LH

main12381-11030i1GDFTV..GDH303201912

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i1GDFTV..GDH303201912

main12391-11030i1GDFTV..GDH303201912

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11012i1GDFTV..GDH303201912-202505

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-11010i1GDFTV..GDH303201912-202311

9011910A12

main90119-10A12

90178T0015

main90178-T0015

90178T0018

main90178-T0018

90178T0087

main90178-T0087

9155281025

main91552-81025

9167180835

main91671-80835

9415121041

main94151-21041

9415121241

main94151-21241

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
