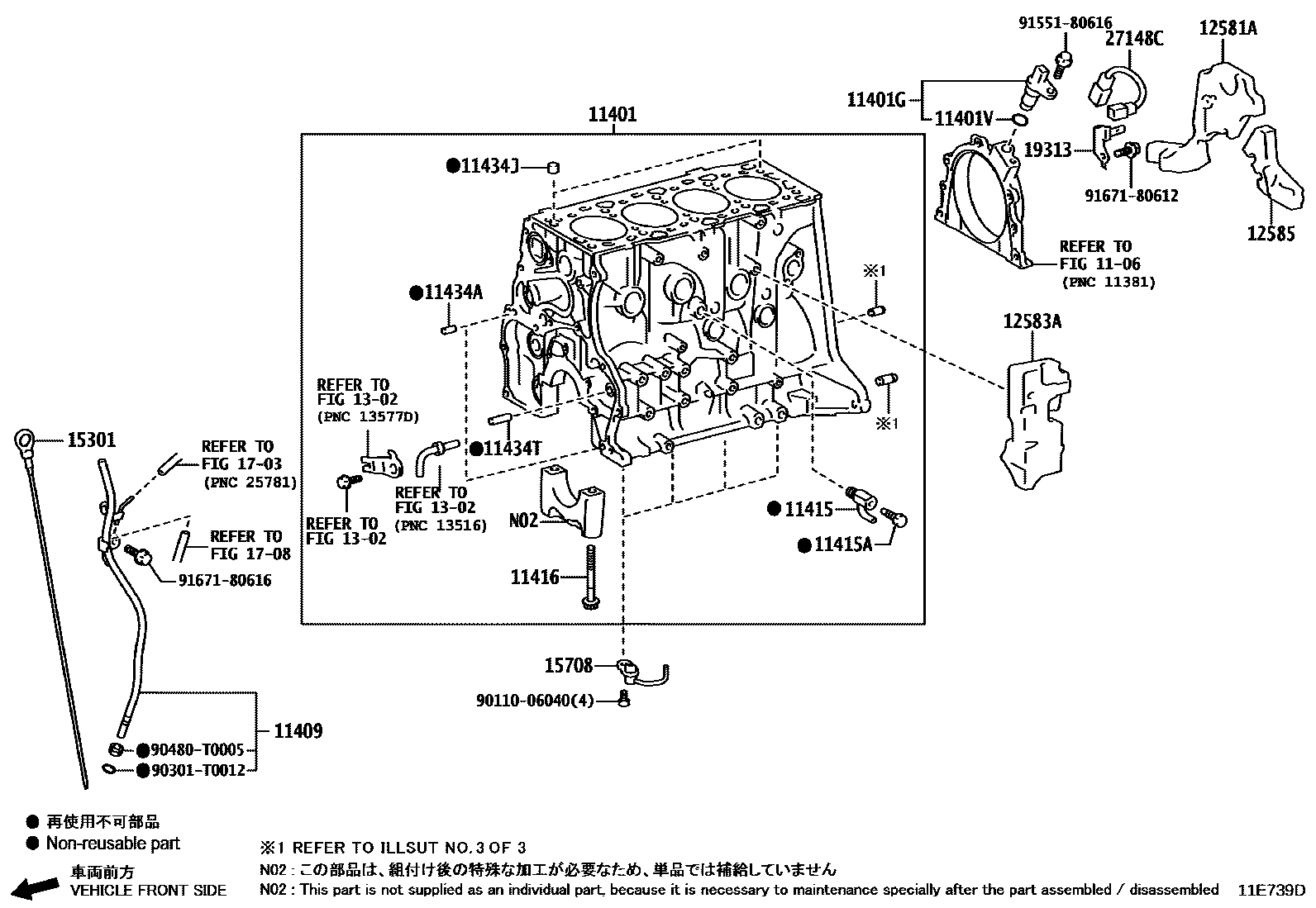

CYLINDER BLOCK

0001 1 0002 1 0003 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-80871i1GDFTV..GDH303202409

main11401-80888i1GDFTV..GDH303201912-202006

sub11401-80A15

main11401-80A15i1GDFTV..GDH303202007-202409

sub11401-80871

11401GSENSOR, CRANK POSITION

main90919-05073i1GDFTV..GDH303201912

11401VO-RING, CRANK POSITION SENSOR

main90301-14016i1GDFTV..GDH303201912

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-0E011i1GDFTV..GDH303201912

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09128i1GDFTV..GDH303201912

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GDFTV..GDH303201912

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02191i1GDFTV..GDH303201912

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1GDFTV..GDH303201912

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15016i1GDFTV..GDH303201912

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GDFTV..GDH303201912

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-11020i1GDFTV..GDH303201912

12583AINSULATOR, CYLINDER BLOCK, NO.3

main12583-11020i1GDFTV..GDH303201912

12585INSULATOR, CYLINDER BROCK, NO.5

main12585-11020i1GDFTV..GDH303201912

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11100i1GDFTV..GDH303201912

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-11010i1GDFTV..GDH303201912

1703

1708

19313BRACKET, CRANK POSITION SENSOR HARNESS

main19313-11010i1GDFTV..GDH303201912

27148CWIRE, CONNECTING

main27148-11010i1GDFTV..GDH303201912

9011006040

main90110-06040

90301T0012

main90301-T0012

90480T0005

main90480-T0005

9155180616

main91551-80616

9167180612

main91671-80612

9167180616

main91671-80616

27 parts on this diagram · 3 diagrams in section
