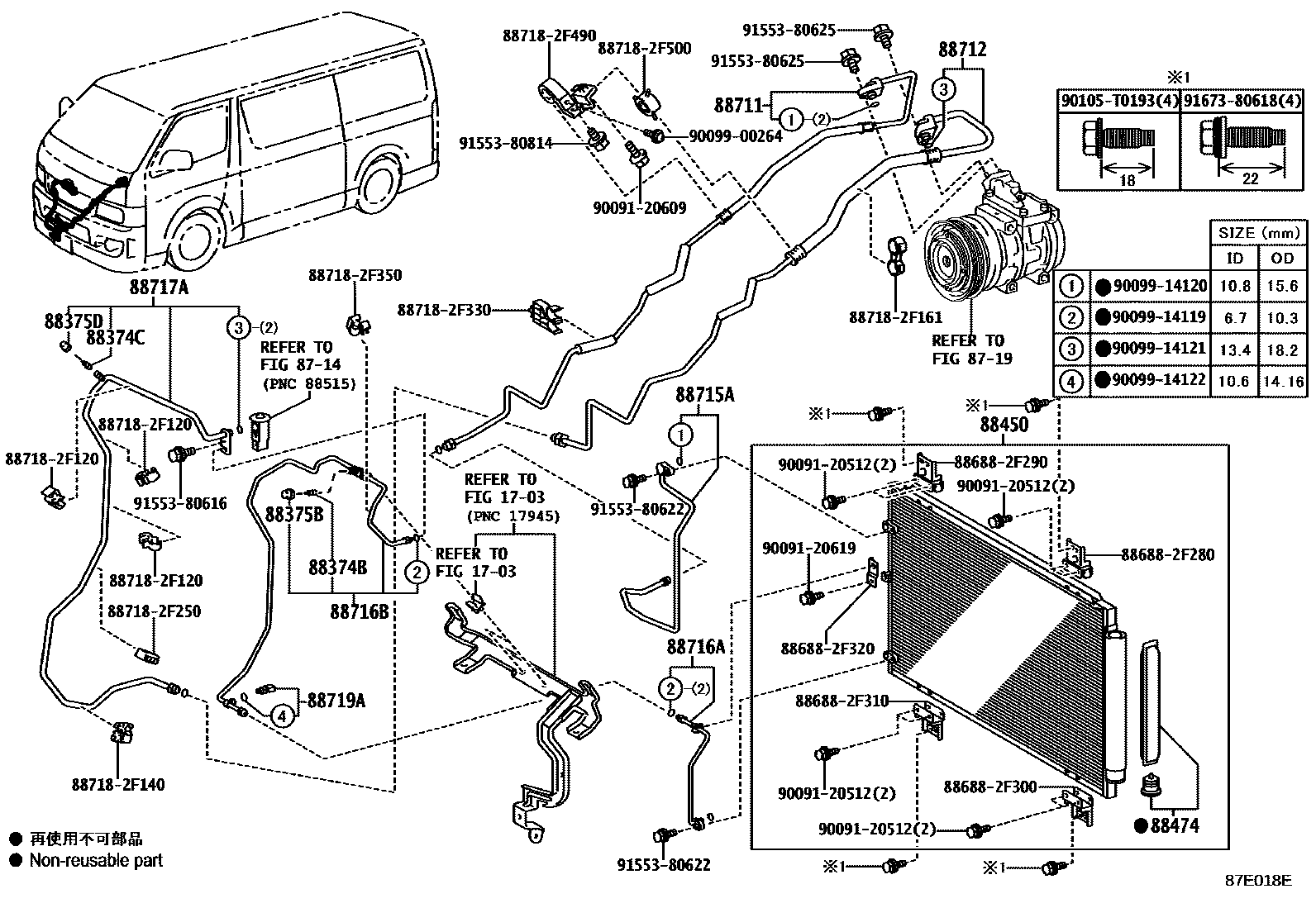

HEATING & AIR CONDITIONING - COOLER PIPING
1703
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
main88374-30010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202507
88375BCAP, SERVICE VALVE, NO.1
main88375-30280iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200,224..(03S,10S)..4FC;GDH206,T201312-202312
88375DCAP, SERVICE VALVE, NO.2
88450CONDENSER ASSY, W/RECEIVER
88474DRYER, COOLER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
sub88712-26B60
sub88712-26B60
sub88712-26B60
main88712-26B60iGDH201..SP;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH211,221,223..CBU,IV6;GDH201..SRF..4D..(06S,09S)202005
88715APIPE, COOLER REFRIGERANT DISCHARGE, A
main88715-26390iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312
main88715-26390iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312
main88715-26390iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312
main88715-26400iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312-202107
main88715-26410iGDH206..06S,09S;GDH206..5D..03S;GDH201..SRF..5D..DX;GDH201..V1..HRF..5D;KDH20#..SG..DX..CBU;GDH201..SRF..4D..(06S,09S)201312-202312
main88715-26410iKDH20#;GDH20#..SP;GDH206..IV5;GDH206..5D..03S;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;GDH201..SRF..4D..(06S,09S)201312-202312
88716APIPE, COOLER REFRIGERANT LIQUID, A
main88710-2F631iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312
main88710-2F631iGDH206..06S,09S;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;KDH20#..SG..DX..CBU;TRH200..HRF..4FC..CBU;TRH200..V1..HRF..6FC..CBU;GDH201..SRF..4D..(06S,09S);TRH200..4D..S201312-202312
main88710-2F641iGDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)201312
88716BPIPE, COOLER REFRIGERANT LIQUID, B
sub88716-2N121
main88716-2N121iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201712-202312
sub88716-2N152
sub88716-2N152
sub88716-2N161
sub88716-2N161
88717APIPE, COOLER REFRIGERANT SUCTION, A
sub88710-2F863
sub88710-2F863
sub88710-2F872
sub88710-2F872
sub88717-2F651
main88717-2F670iTRH214,219,224,229..4FC..CBU;GDH221,226,KDH223,TRH223,224,228..02S,14S;GDH211,223,KDH211,TRH211,216,221,226..(02S,05S,14S)..(CBU,IV6,IV7)201312
sub88717-2F681
main88717-2F681iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201712-202312
88719ASENSOR, AIR CONDITIONER PRESSURE
886882F280BRACKET, COOLER DIAPHRAGM
main88688-2F280
886882F290BRACKET, COOLER DIAPHRAGM
main88688-2F290
886882F300BRACKET, COOLER DIAPHRAGM
main88688-2F300
886882F310BRACKET, COOLER DIAPHRAGM
main88688-2F310
886882F320BRACKET, COOLER DIAPHRAGM
main88688-2F320
887182F120PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F120
887182F140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F140
887182F161PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F161
887182F250PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F250
887182F330PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F330
887182F350PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F350
887182F490PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F490
887182F500PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2F500
9009120512
main90091-20512
9009120609
main90091-20609
9009120619
main90091-20619
9009900264
main90099-00264
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9009914122
main90099-14122
90105T0193
main90105-T0193
9155380616
main91553-80616
9155380622
main91553-80622
9155380625
main91553-80625
9155380814
main91553-80814
9167380618
main91673-80618
43 parts on this diagram · 55 diagrams in section
