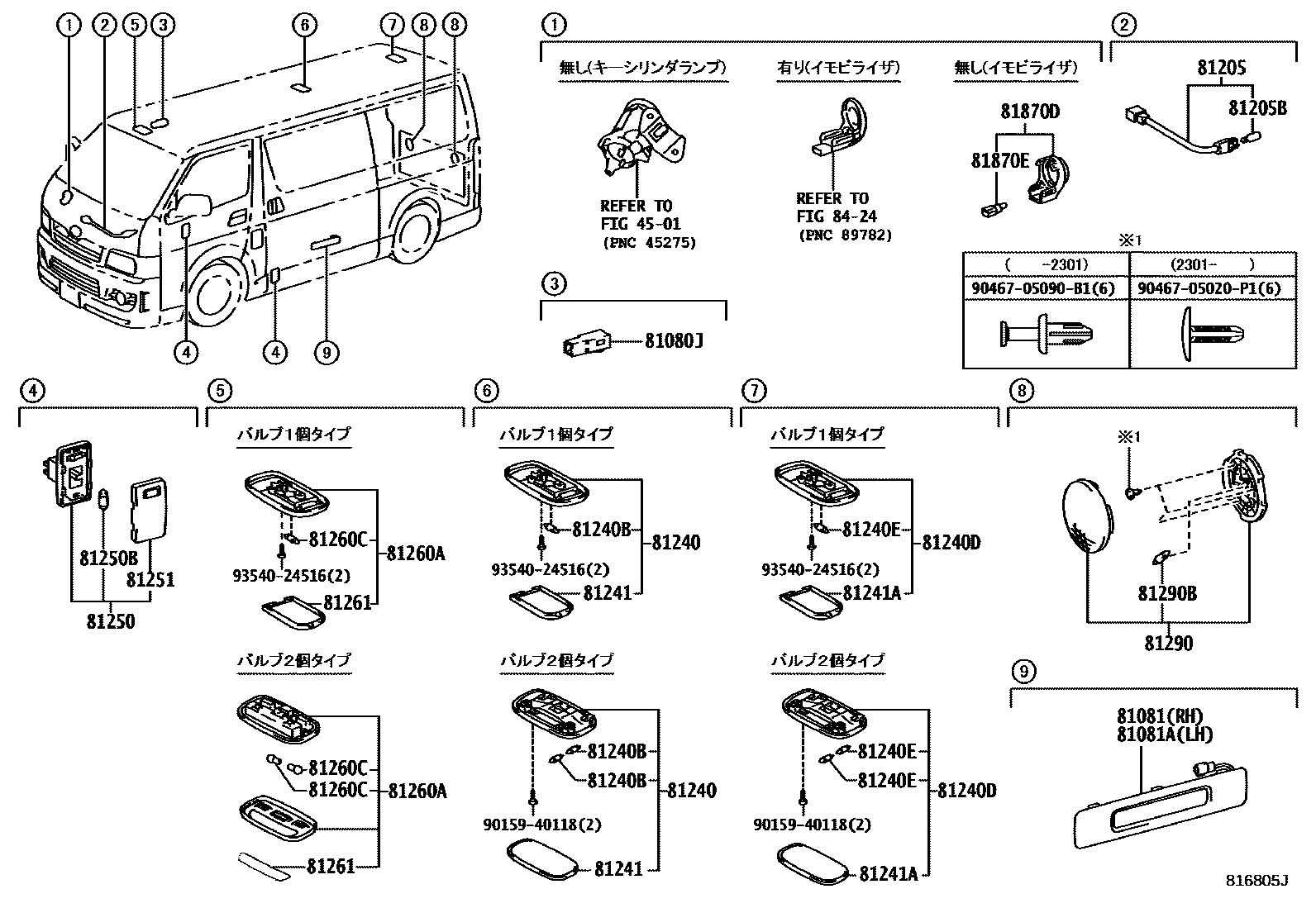

INTERIOR LAMP

4501

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-22040iKDH20#,211,TRH200,211,216..SGL201312-201407

main81080-58100iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201408

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-26020-B0iGDH20#,211,TRH200,211,216..SGL201808

main81081-26040-B0iGDH20#,211,TRH200,211,216..SGL201808-202005

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81081-26030-B0iGDH20#..SGL202408

main81081-26050-B0iGDH20#,211,TRH200,211,216..SGL201808-201908

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-26040iGDH221,226,TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201312-202204

main81850-26050iKDH223,TRH224..IV5;TRH200,223,228..4FC..IV5;GDH20#,TRH200..(4FC,6FC)..DX..CBU;GDH22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)201312-202204

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iGDH221,226,TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201312-202204

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iTRH214,219..DX201312

main81240-28080-B0iGDH201,223..IV5201312-202107

main81240-28080-C0iGDH20#,211,TRH200,211,216..SGL201808

81240BBULB, ROOM LAMP, NO.1

main90981-14011×2iKDH223,TRH223,228..IV5201312

81240DLAMP ASSY, ROOM, NO.2

main81240-12060-C0iGDH20#,TRH200..SGL201808

main81240-12060-P0iTRH200..5F201312-202107

main81240-28080-B0iKDH223,TRH223,228..IV5201312

81240EBULB, ROOM LAMP, NO.2

main90981-14011×2iKDH223,TRH223,228..IV5201312

81241LENS, ROOM LAMP, NO.1

main81241-12020iTRH200..5F201312-202107

main81241-28080iGDH201,223..IV5201312-202107

81241ALENS, ROOM LAMP, NO.2

main81241-12020iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main81241-28080iGDH201,223..IV5201312-202107

81250LAMP ASSY, ROOM, NO.2

main81250-95J05-B4iGDH201,223..IV5201312-202107

DK.GRAY,TRIM1#

main81250-95J05-C1iGDH223..CBU;GDH206,221,226,TRH200,214,219,22#..(HRF,SMRF)..4D..(02S,03S,10S,14S)202108

BLACK,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iGDH201,223..IV5201312-202107

81251LENS, ROOM LAMP, NO.2

main81251-12030iGDH201,223..IV5201312-202107

81260ALAMP ASSY, MAP

main81240-12060-P0iKDH20#..DX..CBU;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;TRH200..03S..4FC..CBU;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;TRH200..V1..HRF..6FC..CBU;GDH201..SRF..4D201312

main81260-16061-B3iGDH223..GL..CBU;TRH214,219,223,228..GL;KDH20#,223,TRH200,211,216..4FC..(GL,SGL);GDH206,KDH20#,211,TRH200,224,229..(HRF,SMRF)..(02S,03S,05S,10S)201312

main81260-16061-C0iGDH20#,211,TRH200,211,216..SGL201808

81260CBULB(FOR MAP LAMP)

main90981-12005×2iGDH201,223..IV5201312-202107

main90981-14011iTRH200..5F201312-202107

81261LENS AND COVER, MAP LAMP

main81241-12020iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main81261-16060iGDH201,223..IV5201312-202107

81290LAMP ASSY, ROOM, NO.3

main81240-D1010×2iGDH223..IV5201312-202107

81290BBULB, ROOM LAMP, NO.3

main99132-12100×2iGDH223..IV5201312-202107

81870DLAMP ASSY, KEY CYLINDER

main81870-13010iKDH20#..5D..03S..4FC201312-201711

81870EBULB, KEY CYLINDER LAMP

main90010-01056iKDH20#..5D..03S..4FC201312-201711

8424

9015940118

main90159-40118

9046705020P1

main90467-05020P1

9046705090B1

main90467-05090B1

9354024516

main93540-24516

27 parts on this diagram · 1 diagram in section
