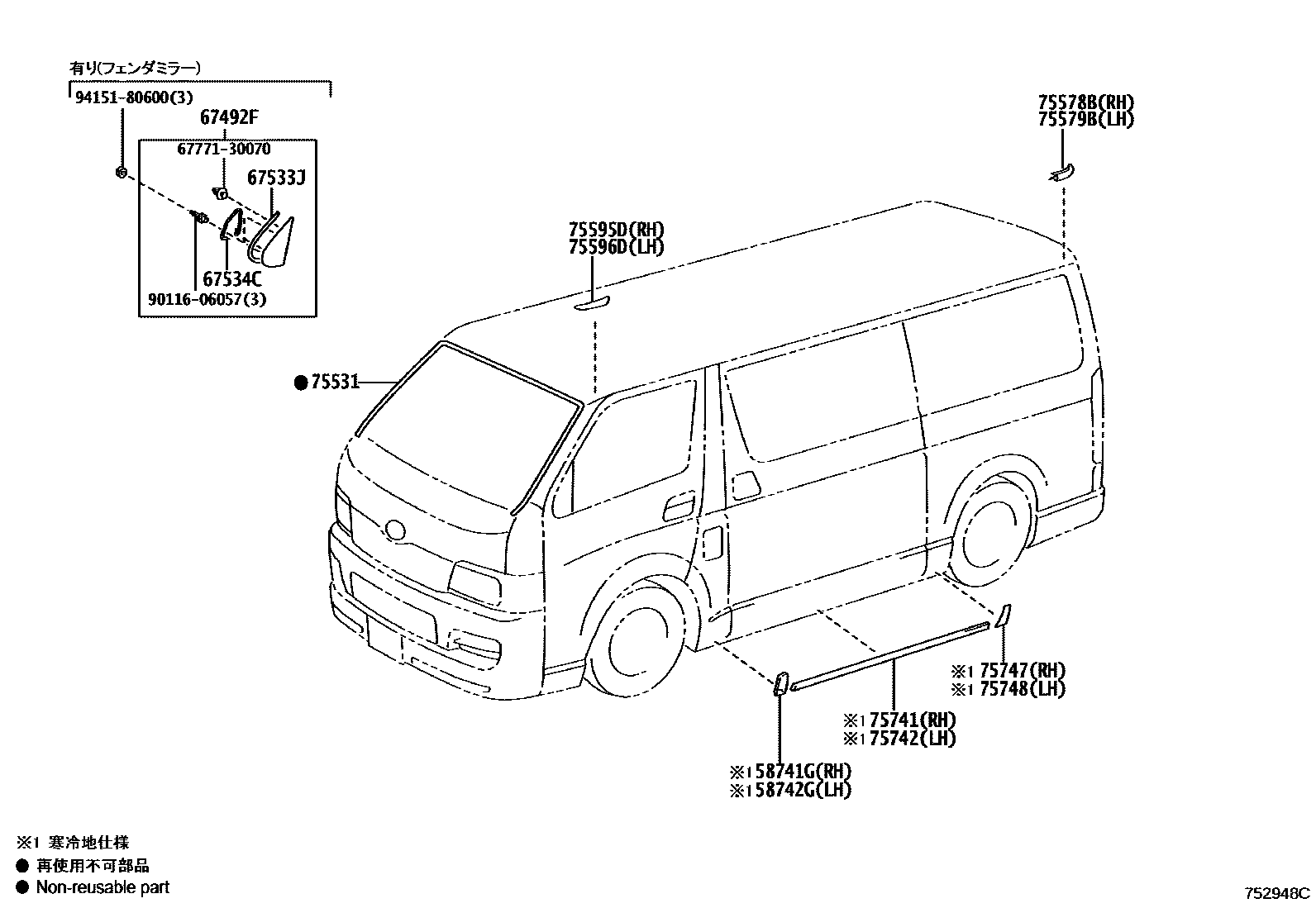

MOULDING

58741GPROTECTOR, REAR WHEEL EXTENSION, RH

main58741-26050iTRH219..5D201712

58742GPROTECTOR, REAR WHEEL EXTENSION, LH

main58742-26070iTRH219..5D201712

67492FGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-26070iTRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5)201312-202005

67533JPROTECTOR, FRONT DOOR UPR GARNISH

main67533-26010iTRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5)201312-202005

67534CSEAL, FRONT DOOR UPR GARNISH

main67534-26010iTRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5)201312-202005

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-26071iTRH200..5F;GDH201..IV5201312-202107

main75531-26081iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-26010iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75595-26012iTRH200..5F;GDH201,223..IV5201312-202312

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-26012iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

75741MOULDING, REAR DOOR, OUTSIDE RH

main75745-26010iTRH219..5D201712

75742MOULDING, REAR DOOR, OUTSIDE LH

main75745-26010iTRH219..5D201712

75747MOULDING, SLIDE DOOR END, RH

main75747-26010iTRH219..5D201712

75748MOULDING, SLIDE DOOR END, LH

main75748-26010iTRH219..5D201712

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9011606057

main90116-06057

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
